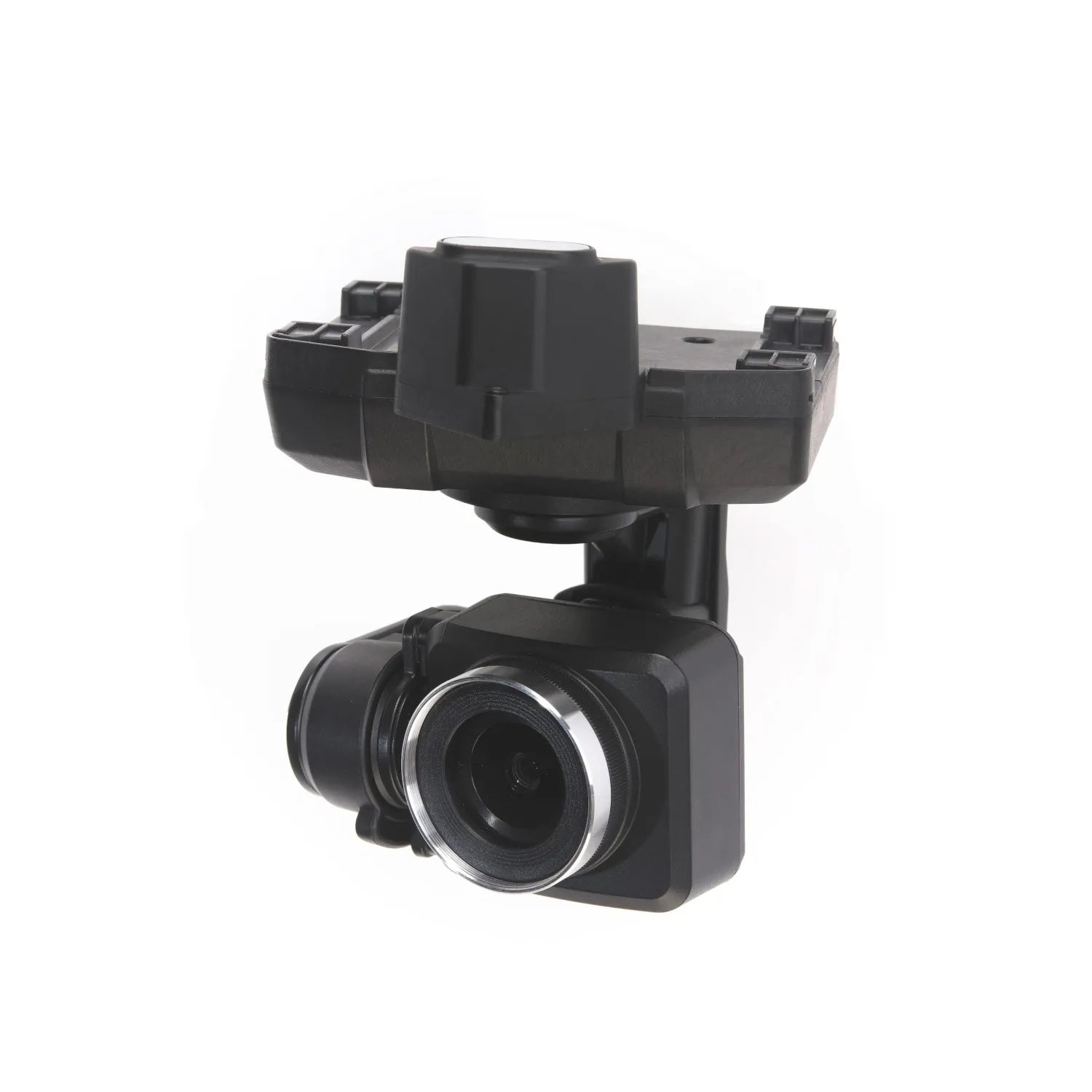

The ACSL SOTEN Multispectral Camera is a swappable gimbal payload that turns the SOTEN into a crop and vegetation survey aircraft. A 1-inch 20 MP sensor paired with a field-attachable triple bandpass filter captures green, red, and near-infrared light in a single pass, writing 16-bit TIFF frames ready for NDVI and other vegetation index workflows.
Green, red, and near-infrared capture in one pass, on an NDAA-compliant airframe made in Japan.
Features
- Three-band spectral capture: a triple bandpass filter isolates 550 nm (green), 680 nm (red), and 850 nm (near-infrared) for vegetation analysis.
- 1-inch 20 MP sensor: a large sensor with an f/2.8 to f/11 aperture range and ISO 125 to 6400 gives usable exposure latitude across changing field light.
- Mechanical shutter: 8 to 1/2000 s mechanical shutter for mapping passes, with an electronic shutter to 1/8000 s available.
- 16-bit TIFF output: 2720 x 1814 RGB TIFF frames carry the bit depth analysis software needs, with EXIF data for photogrammetry workflows.
- 3-axis stabilization: pan, tilt, and roll stabilization holds ±0.02° control accuracy for consistent nadir framing across a grid.
- Tool-free swaps: the one-touch payload interface changes cameras in the field, so a single SOTEN can move between optical, thermal, and multispectral missions.
- NDAA compliant: manufactured by ACSL in Japan for agencies and operators with procurement restrictions.
Specifications
| Sensor | 1-inch, 20 MP effective pixels |
| Spectral bands | 550 nm, 680 nm, 850 nm (triple bandpass filter) |
| Focal length | 28 mm (35 mm equivalent) |
| Field of view | 64° H / 44° V / 73° D |
| Aperture | f/2.8 to f/11 |
| Shutter speed | Mechanical 8 to 1/2000 s; electronic 8 to 1/8000 s |
| ISO | Auto, 125 to 6400 |
| Still image size | 2720 x 1814 (5 MP) |
| Still format | 16-bit RGB TIFF |
| Live view | MJPEG, Full HD 20fps |
| Video recording | Not supported (still capture only) |
| Gimbal | 3-axis stabilized, ±0.02° control accuracy |
| Gimbal range | Pan ±90°, tilt -115° to +45°, roll ±30° |
| Storage | microSD (UHS-I U3 / V30 or faster), up to 512 GB; FAT32 / exFAT |
| Supply voltage | 12 V DC |
| Power consumption | 12 W max |
| Weight | 200 g |
| Dimensions | 78 x 99 x 93 mm (W x H x D) |
| Ingress protection | IP43 (when installed on the ACSL SOTEN aircraft) |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Operating humidity | 10% to 90% |
| Compatibility | ACSL SOTEN |
| Origin | Made in Japan, NDAA compliant |
FAQ
Which aircraft does this camera work with?

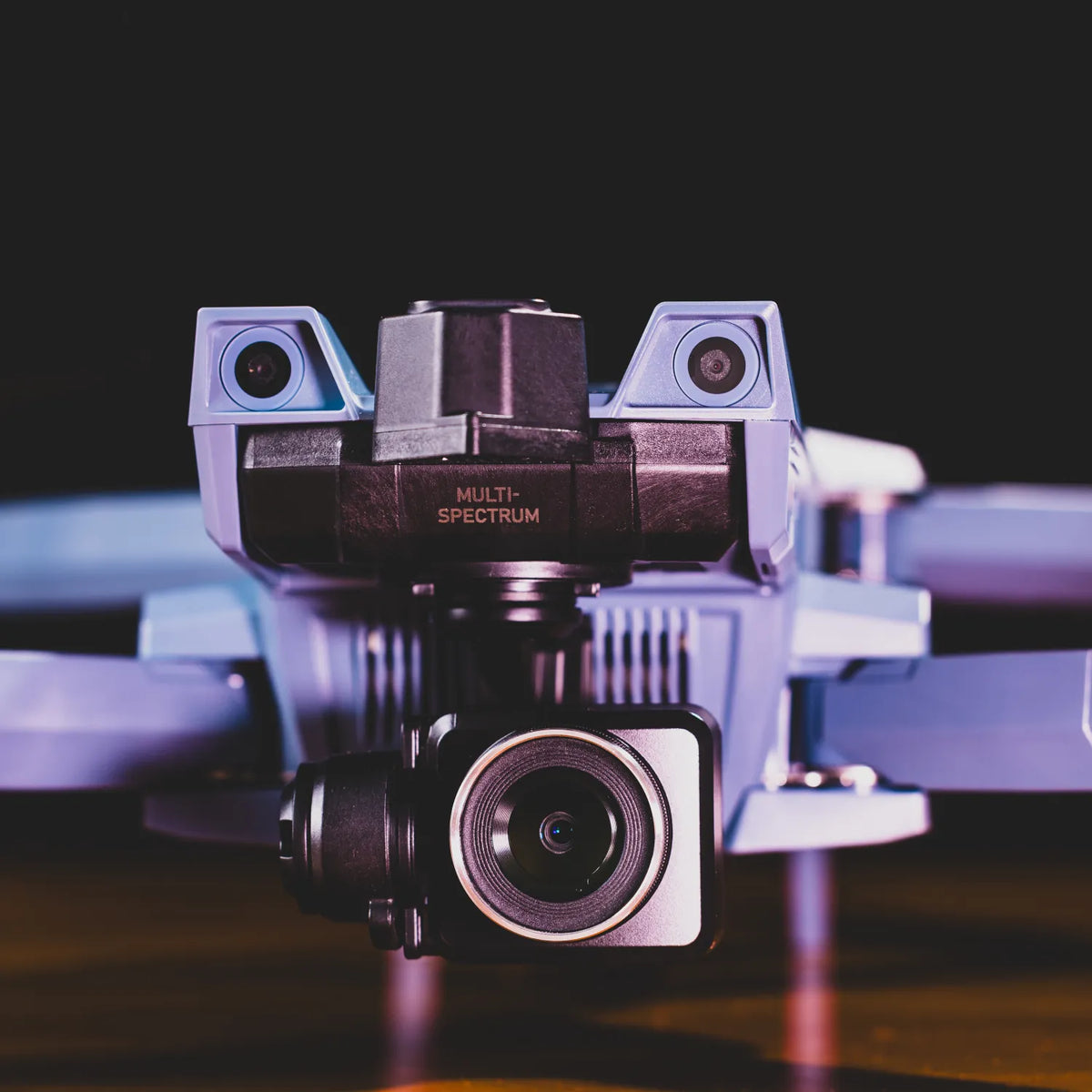

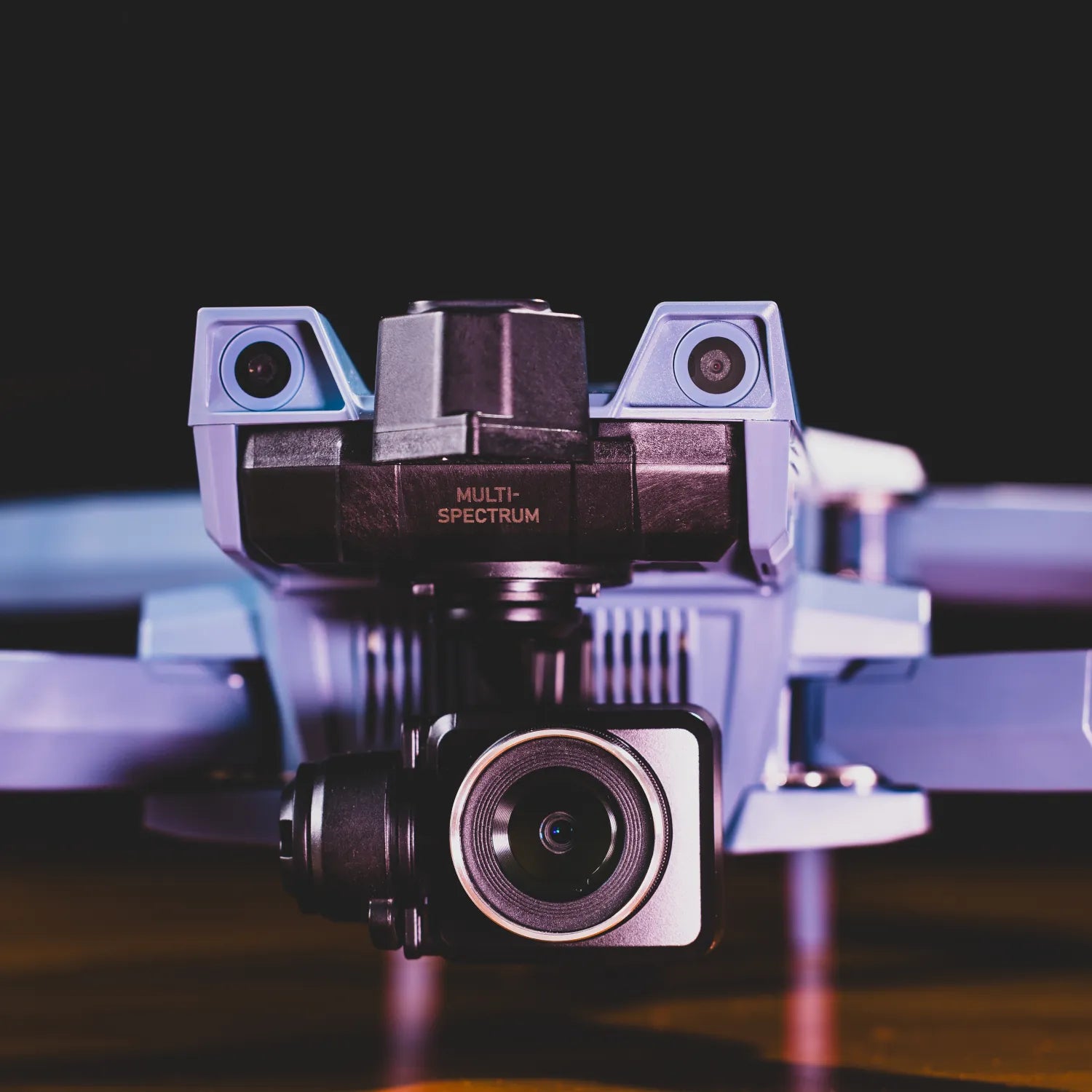

The Multispectral Camera is designed exclusively for the ACSL SOTEN and mounts through the aircraft's one-touch swappable payload interface.
Which bands does it capture?
A field-attachable triple bandpass filter isolates 550 nm (green), 680 nm (red), and 850 nm (near-infrared). Those bands support NDVI and similar vegetation index calculations in your analysis software.
Can it record video?
No. The Multispectral Camera captures 16-bit TIFF stills only. Live view is available to the operator at Full HD 20fps, but it is not recorded. For video, use the Standard Camera or the Optical Zoom Camera payload.
Can I swap between this and other SOTEN payloads?
Yes. The SOTEN uses a tool-free one-touch camera mount, so a single aircraft can change payloads in the field between flights.
Is it weather resistant?
Installed on the SOTEN aircraft, the camera is rated IP43, which covers protection from solid objects larger than 1 mm and from spraying water at up to 60° from vertical. Operating range is 0°C to 40°C at 10% to 90% humidity.
What is the warranty period?
All products come with a 12-month manufacturer warranty.
