Quantum Systems

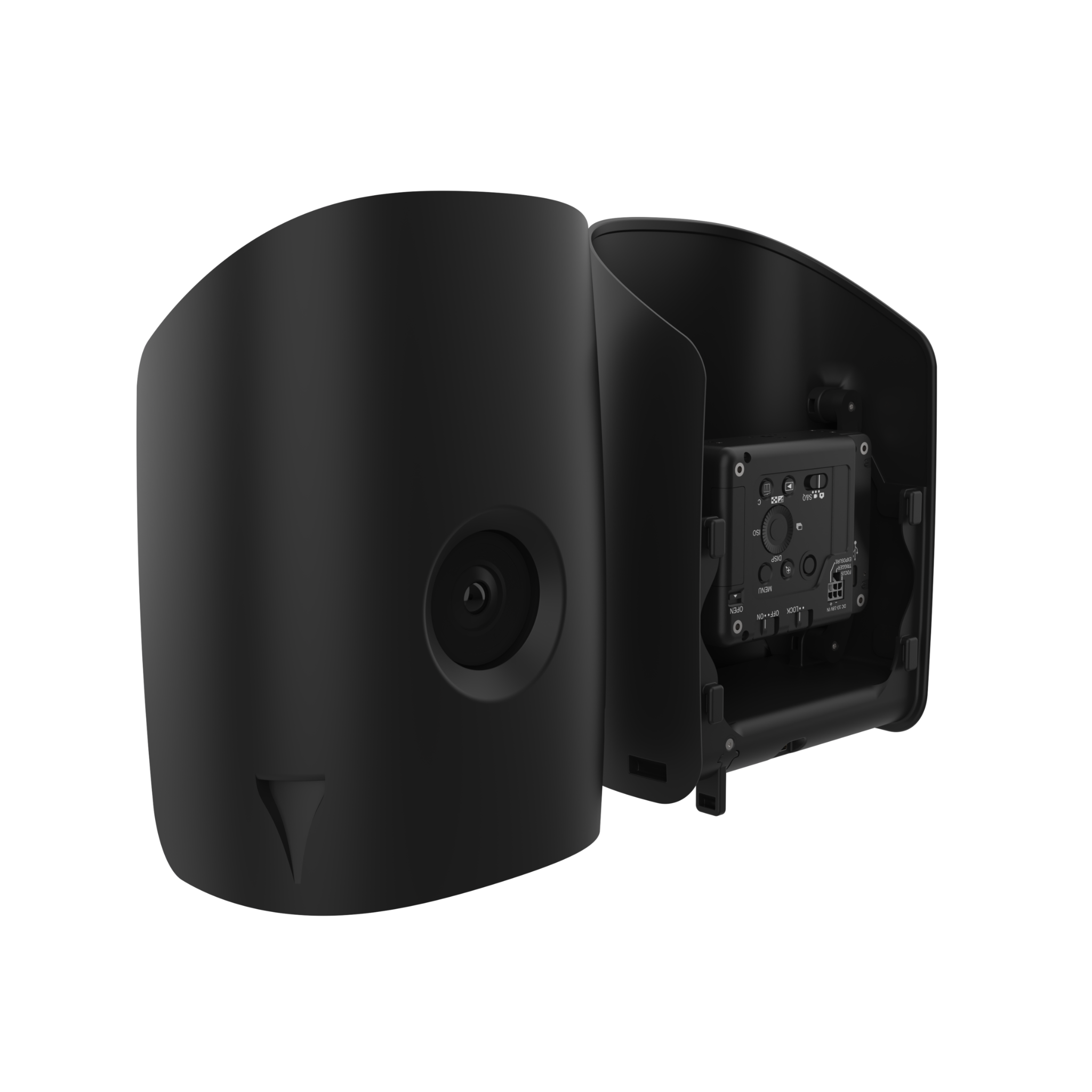

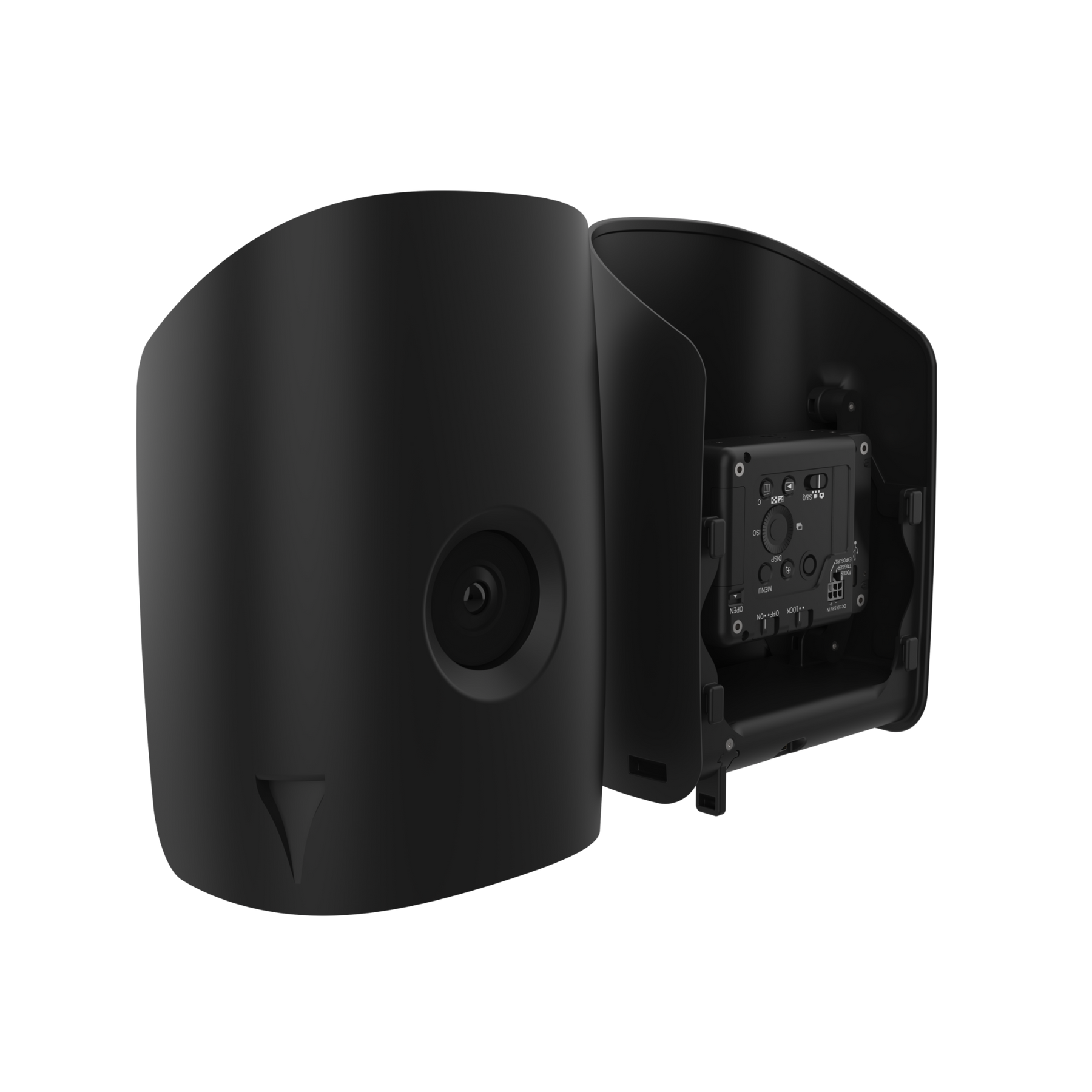

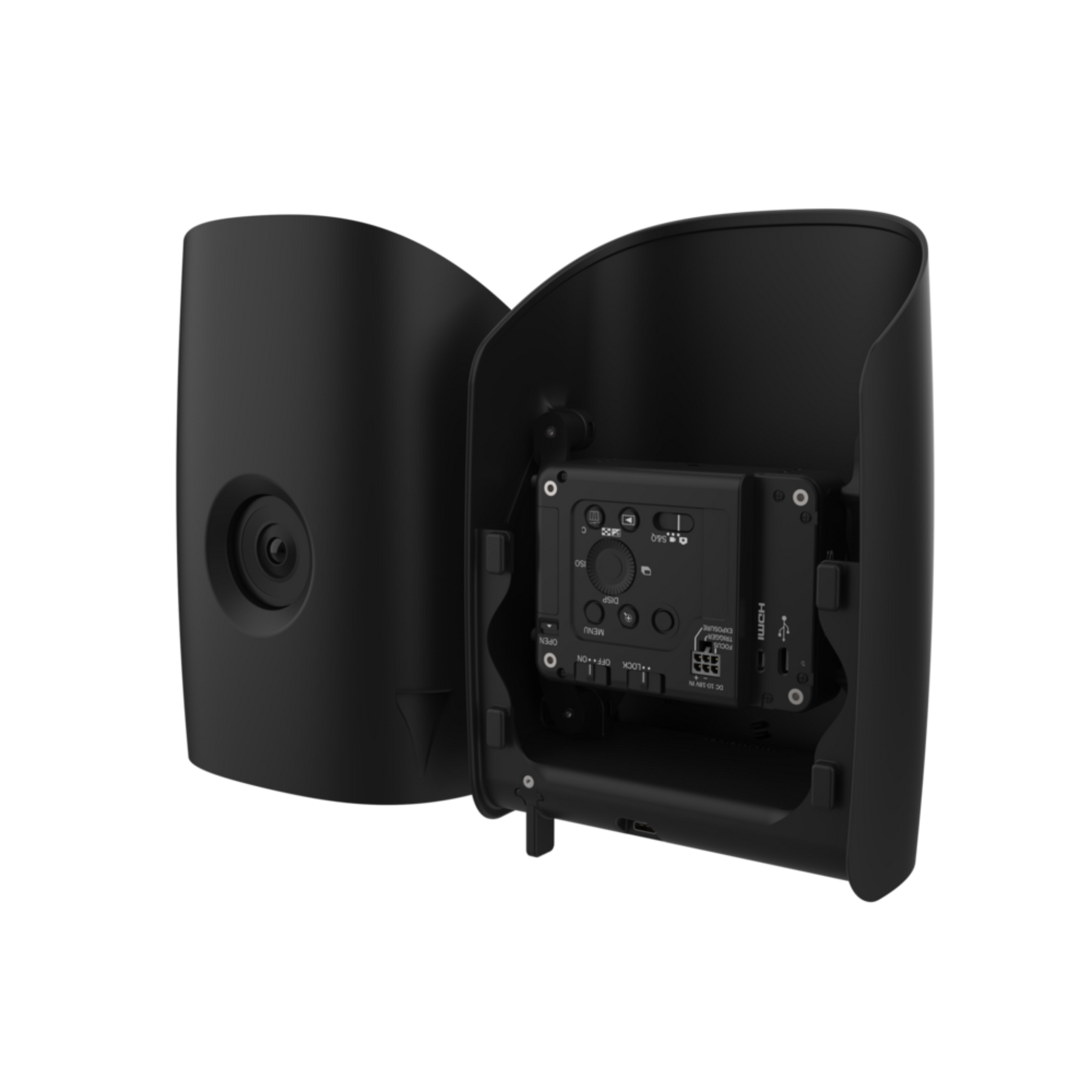

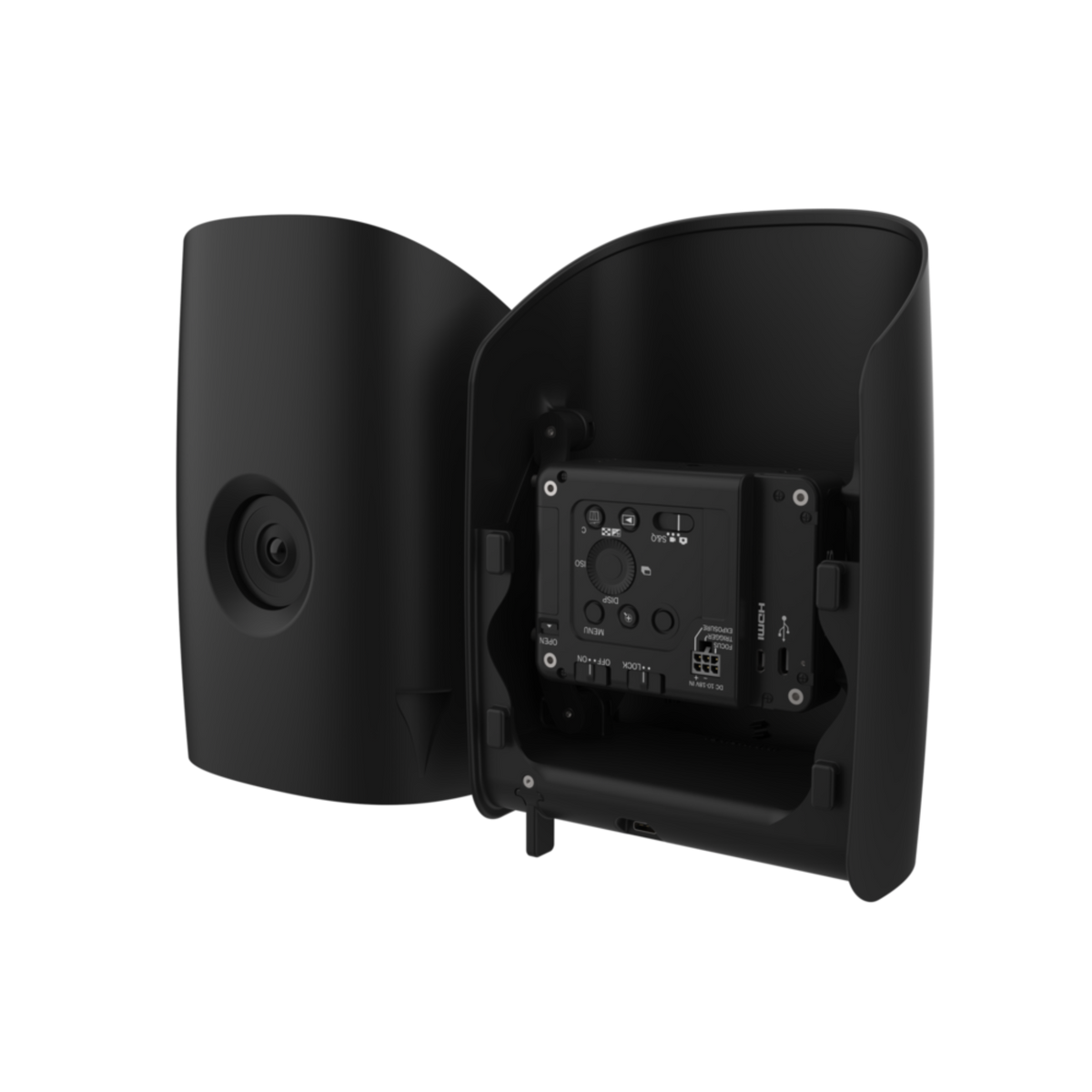

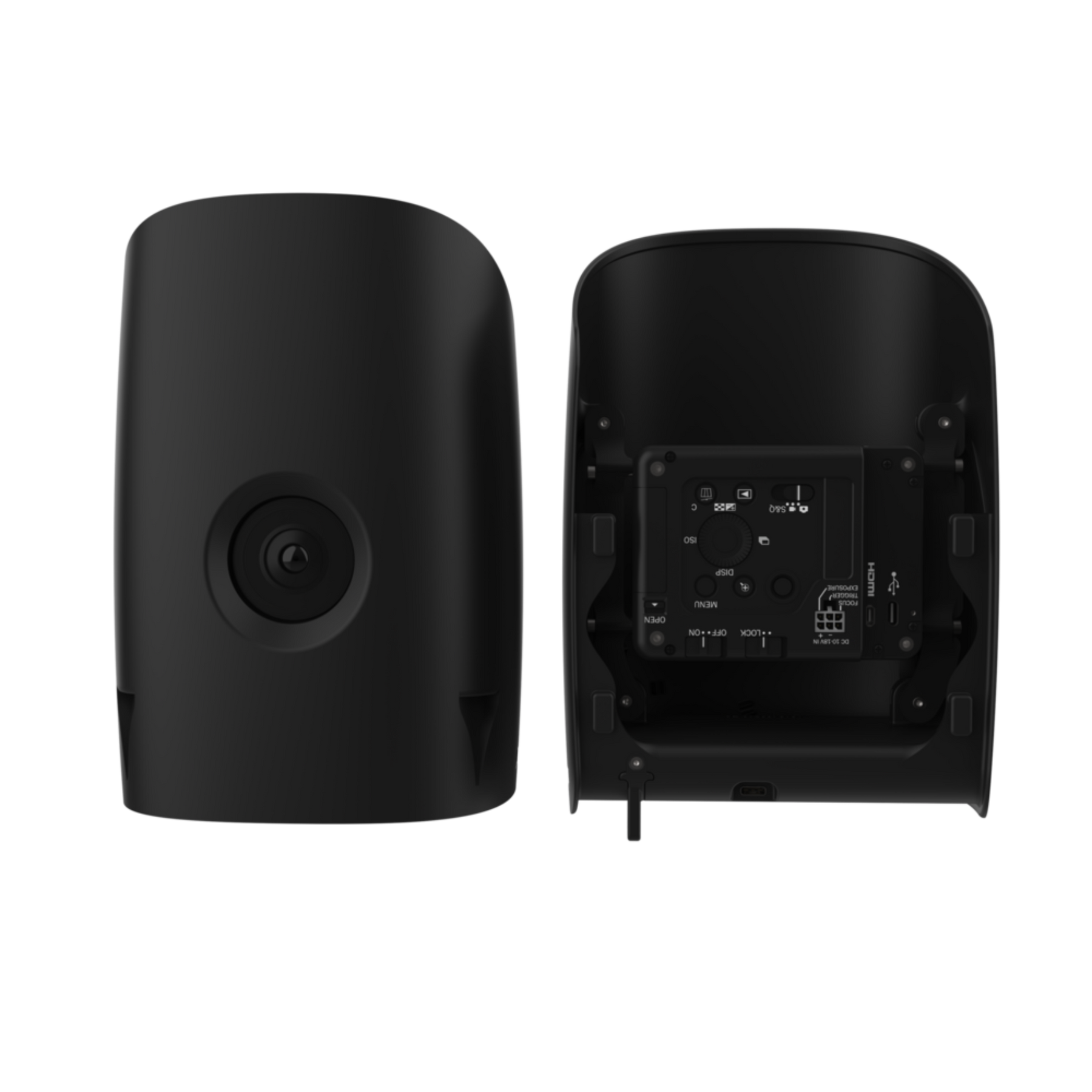

Trinity Pro Sony ILX-LR1 Camera


The Sony ILX-LR1 camera, with its cutting-edge high-accuracy capabilities and expansive coverage, seamlessly integrates into Quantum Systems drones and allows direct camera control, while delivering exceptional image quality. The camera harnesses advanced sensor technology and processing power, resulting in a ultra compact solution that elevates project efficiency. User have the flexibility to customize settings to suit any mission, reducing data load and streamlining workflows, while maintaining image quality.


  • Sensor Resolution: 61.0 MP (9504 × 6336 px)
  • GSD @100m AGL:  1.57 cm/px
  • GSD @120m AGL: 1.88 cm/px
  • Coverage @120m AGL: 491 ha (1.88 cm/px GSD, 70% overlap)
  • Coverage with 0.7 cm/px GSD: 184 ha (@45m AGL, 70% overlap)
  • Sensor type: Exmor R CMOS
  • Sensore format: 35 mm full frame
  • Sensor size: 35.7 mm × 23.8 mm
  • Lens: f=24 mm, F2.8
  • Payload weight (ready to fly): 600g
