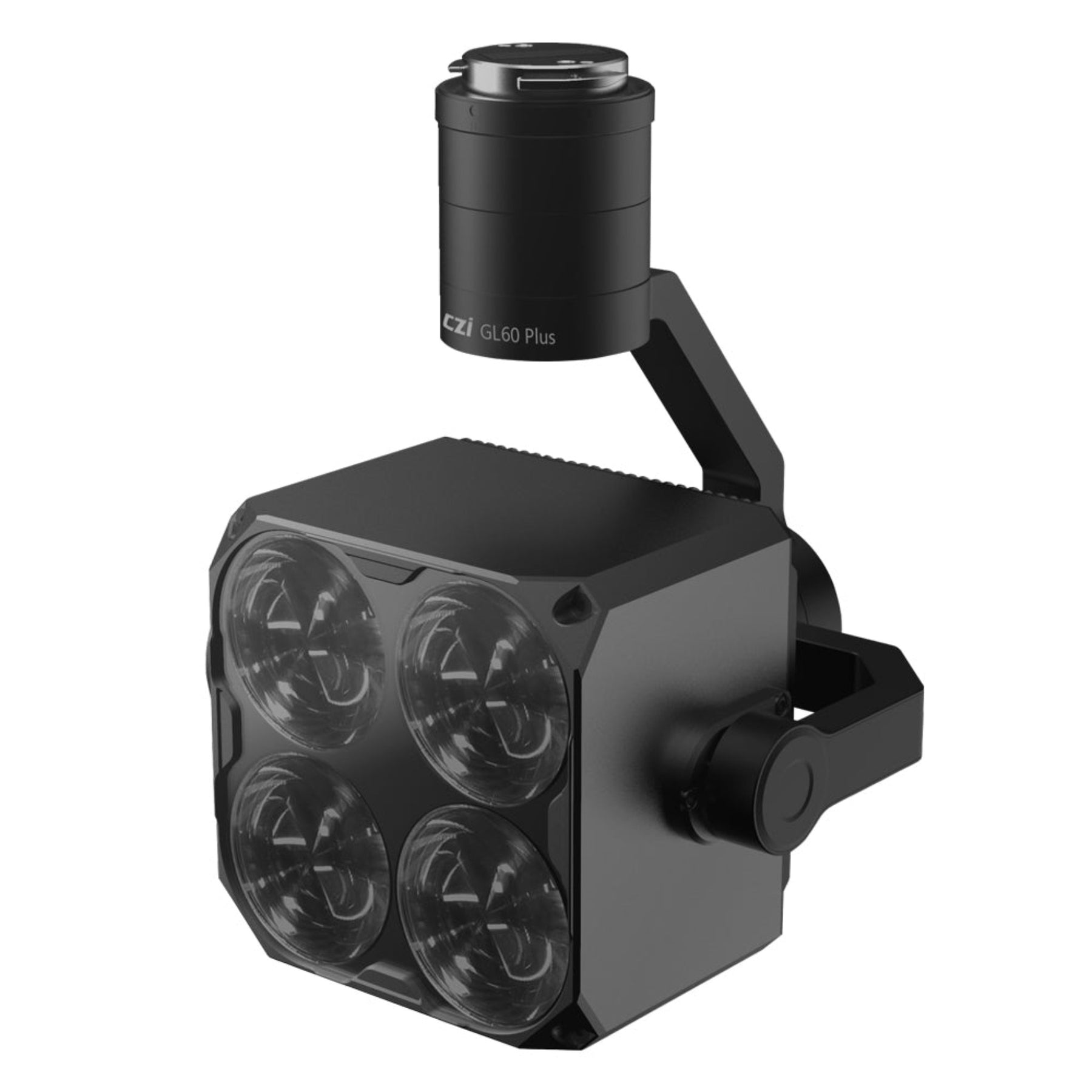

CZI GL60 Plus Spotlight for DJI Matrice Series
The CZI GL60 Plus is a high-output gimbal spotlight built for the DJI Matrice series, turning your drone into a powerful aerial searchlight for search and rescue, public safety, inspection, and night operations. It mounts via DJI Skyport V2.0 and delivers up to 13,400 lumens from a compact 750g body.
13,400 lumens of focused light, reaching up to 150 meters from the air.
Features
- High-output illumination: up to 13,400 lumens from a 120W LED, lighting an area as large as 1,225 m².
- Long-range beam: imaging-grade optics with four lens groups and a tight 15° beam angle deliver an effective reach of up to 150 meters.
- Full gimbal control: 360° continuous horizontal rotation and a –110° to +40° pitch range keep the beam on target as the aircraft maneuvers.
- Lightweight payload: at just 750g, it preserves flight time and handling on the Matrice platform.
- Plug-and-play mounting: connects through DJI Skyport V2.0 for seamless integration and control.
- Built for the field: fully sealed design with a wide operating temperature range for demanding outdoor conditions.
Specifications
| Brightness | Up to 13,400 lumens |
| LED power | 120 W |
| Beam angle | 15° |
| Effective distance | Up to 150 m |
| Max lighting area | 1,225 m² |
| Gimbal pitch | -110° to +40° |
| Gimbal rotation | 360° (continuous) |
| Weight | 750 g (26.45 oz) |
| Dimensions | 126 × 131 × 167 mm |
| Operating temperature | -20°C to +50°C (-4°F to 122°F) |
| Mount interface | DJI Skyport V2.0 |
| Compatibility | DJI Matrice 300 / 350 RTK |
FAQ
Which drones is the GL60 Plus compatible with?
It is designed for the DJI Matrice series, mounting via DJI Skyport V2.0 on the Matrice 300 RTK and Matrice 350 RTK.
How far does the beam reach?
The effective irradiation distance is up to 150 meters, with a focused 15° beam and a maximum lighting area of about 1,225 m².
Will it work in bad weather?
The GL60 Plus uses a fully sealed design and operates across a wide temperature range of -20°C to +50°C, making it suitable for demanding outdoor conditions.
What is the warranty period?
All products come with a 12-month manufacturer warranty.
