Quantum Systems

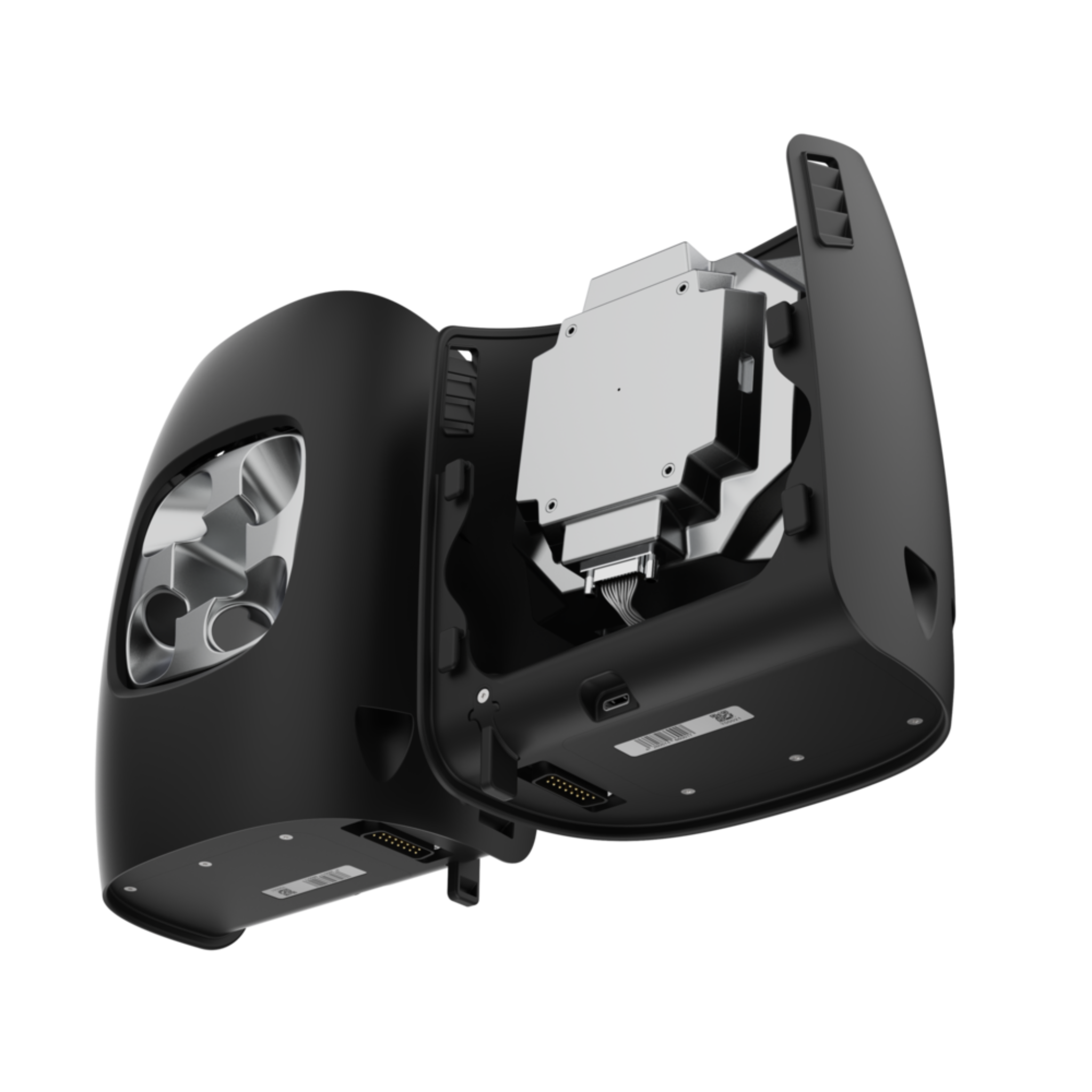

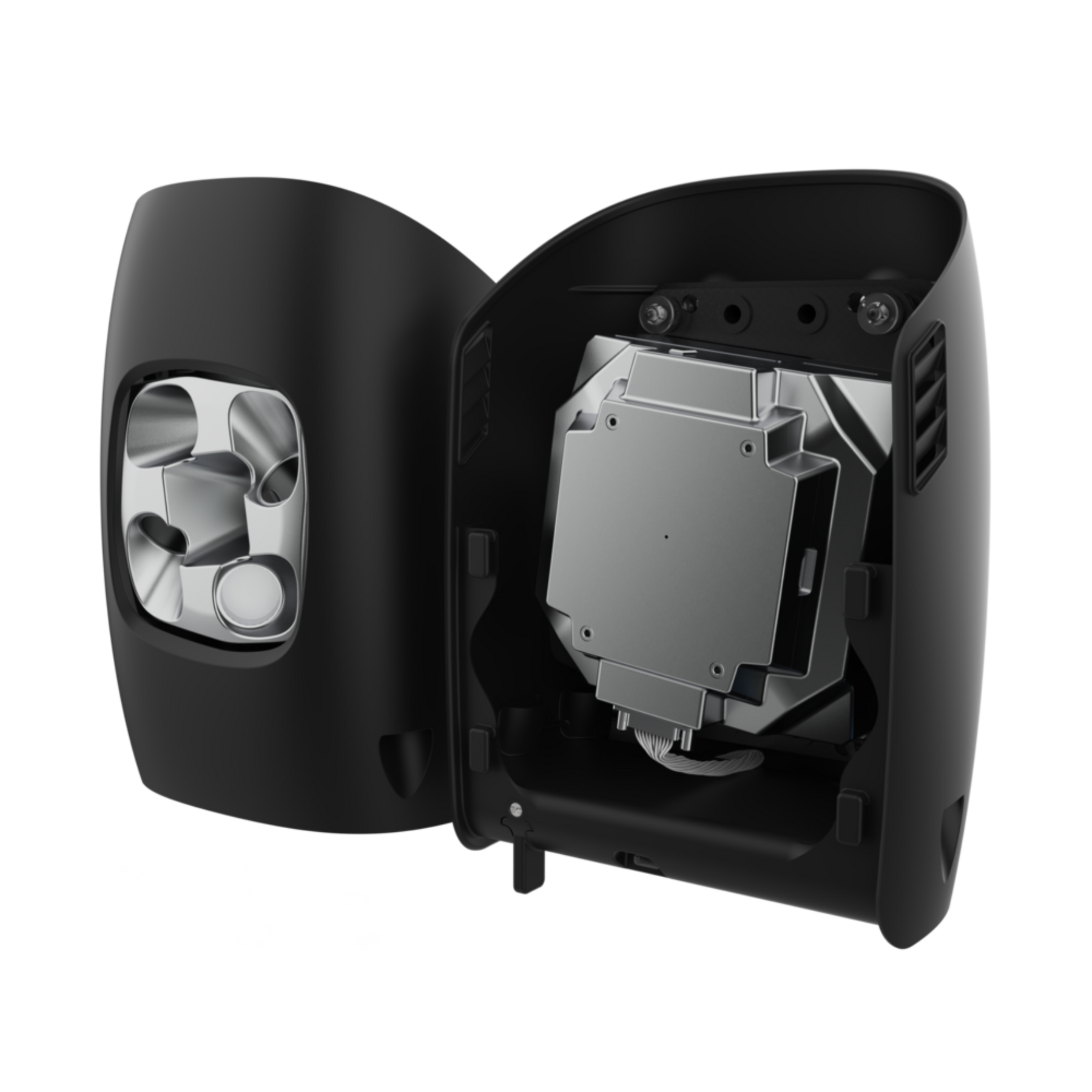

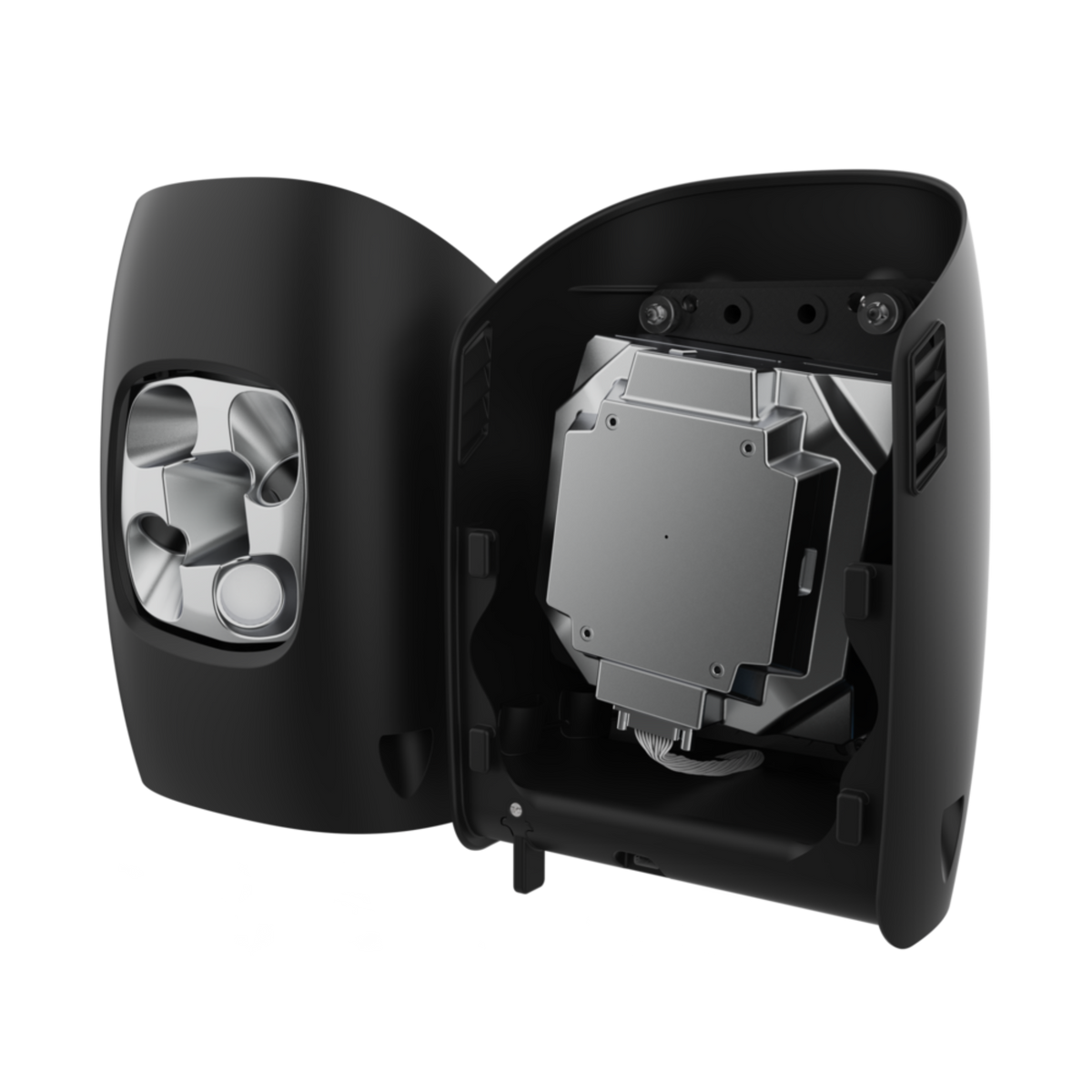

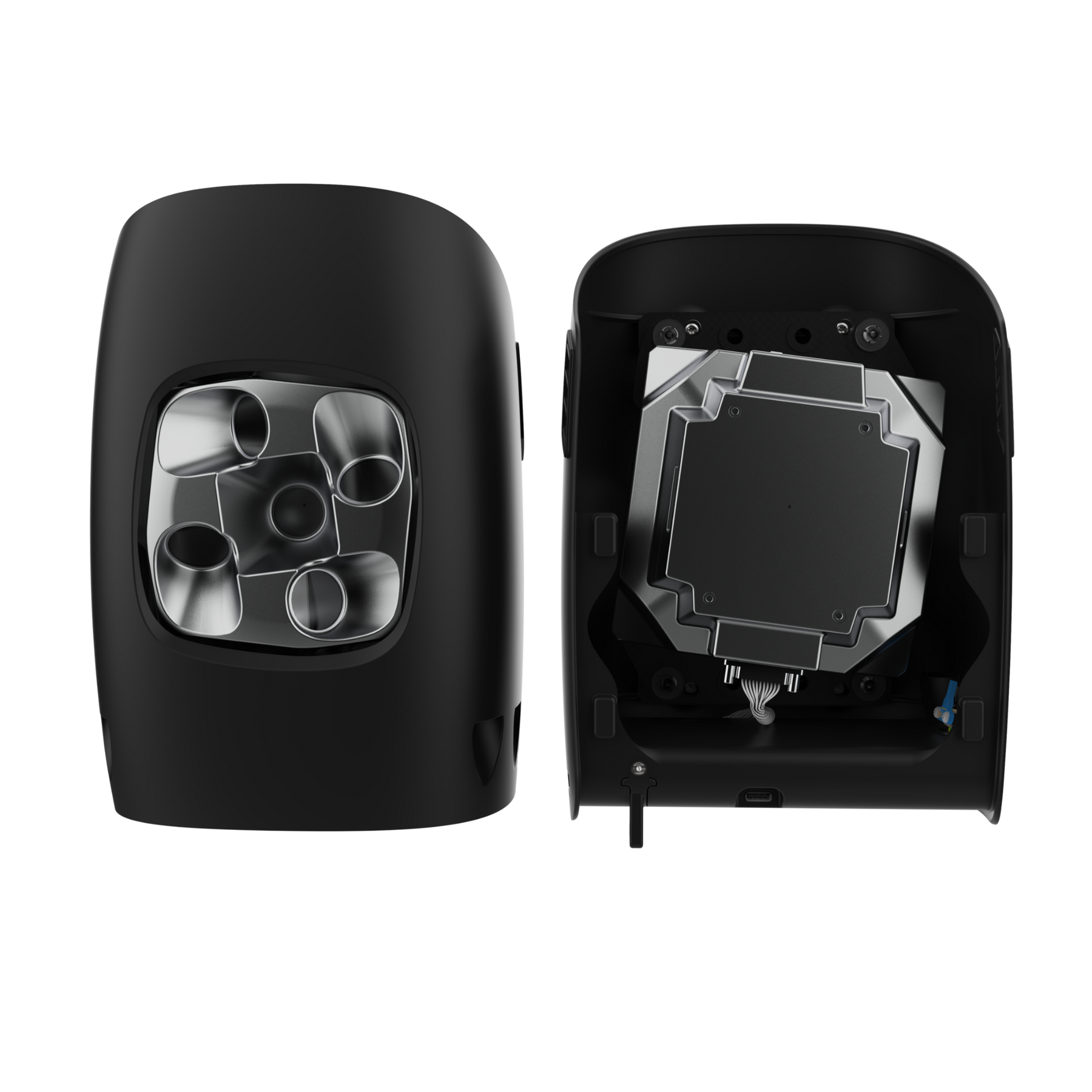

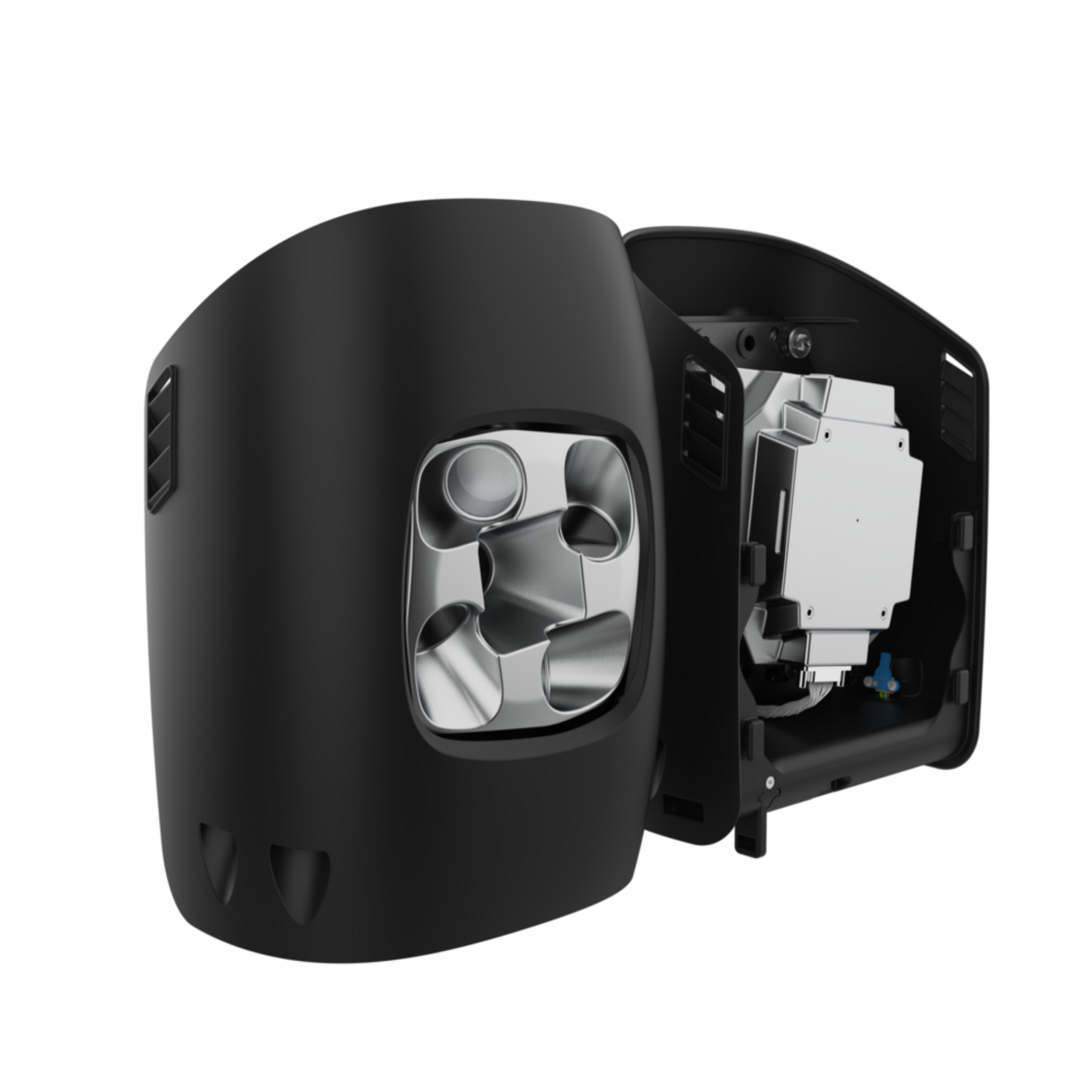

Trinity Pro Oblique D2M Camera
This product requires a quote. Contact us for pricing.
Prefer to talk? Call us at 800-359-0530
Five-lens RGB Camera
The Oblique D2M is a powerful oblique imaging system consisting of five high-resolution multi-directional cameras, making it the ideal tool for large scale 3D photogrammetry. A fast trigger interval along with custom high-speed storage provides class-leading time efficiency without compromising data quality. The payload combines four oblique and one NADIR camera to capture complex geometries with ease. This ensures remarkable detail even on slanted surfaces and makes Oblique D2M destined for 3D mesh generation of high-rise areas, industrial environments, archaeological sites and alike.
- GSD: 1.50 cm @100m AGL
- Cameras: 1 x NADIR, 4 x oblique
- Sensor resolution: 26 MP (6252 x 4168 px)
- Total resolution: 130 MP
- Trigger interval: ≥ 0.8 seconds
- Sensor type: CMOS
- Sensor format: APS-C
- Sensor size: 23.5 x 15.6 mm
- Focal length: 25 mm NADIR, 35 mm (oblique)
- Payload weight (ready to fly): 833.7 g
- Storage: High speed data storage device (640 GB)
- Flight time: 60 minutes
