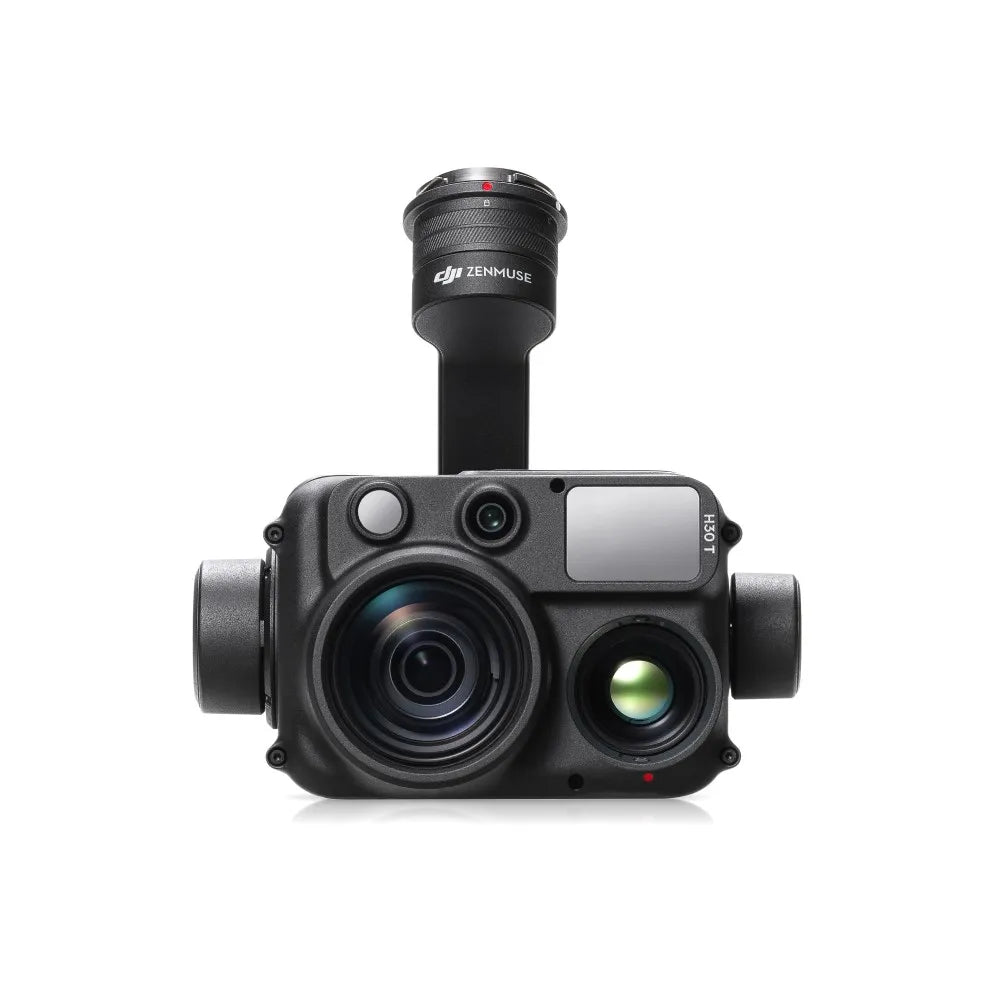

The DJI Zenmuse H30T is DJI's flagship all-weather multi-sensor payload, integrating five major modules into a single gimbal: a 48 MP wide-angle camera, a 40 MP zoom camera with 34× optical zoom, a 1280×1024 infrared thermal camera, a laser range finder with 3000 m range, and an NIR auxiliary light. Designed for the Matrice 400, 350 RTK, and 300 RTK, the H30T delivers superior performance across public safety, search and rescue, energy inspection, and critical infrastructure operations — day or night, in virtually any weather.
Five sensors. One payload. Unmatched situational awareness across every operational environment.
Features
- Five integrated sensor modules — wide-angle camera, zoom camera, infrared thermal camera, laser range finder, and NIR auxiliary light — eliminating the need for multiple payloads
- 40 MP zoom camera with 34× optical zoom and 400× digital zoom for long-range observation and detail capture, with DJI's latest image stabilisation algorithm for steady telephoto footage
- 48 MP wide-angle camera with a 24 mm equivalent focal length and f/1.7 aperture for broad scene coverage and low-light performance
- 1280×1024 infrared thermal camera — 4× the resolution of the previous generation — with three gain modes (High Gain, Low Gain, and High-Res) for precise temperature measurement, wide-range detection, and fine thermal detail in security and SAR applications
- Temperature measurement range from -20° to 600°C (extending to 1600°C with infrared density filter), with spot, area, and centre-point measurement methods plus temperature alert
- Link Zoom simultaneously mirrors zoom levels across the visual and thermal cameras, keeping both views aligned during observation
- Laser range finder with a 3–3000 m measurement range, providing linear distance, altitude, and GPS coordinates of targets in the field
- Full-colour and black-and-white night vision modes across both zoom and wide-angle cameras, with NIR illumination for enhanced contrast in darkness
- Pre-recording on all cameras retains up to 30 seconds of footage before formal recording begins, ensuring critical moments are never missed
- UHR (Ultra-High Resolution) infrared imaging activates automatically at higher zoom levels to maintain image clarity
- IP54 dust and water resistance rated for operation in harsh field conditions
- Compatible with DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK (requires DJI RC Plus on M300 RTK)
Specifications
| Specification | Value |
|---|---|
| General | |
| Dimensions (L × W × H) | 170 × 145 × 165 mm |
| Weight | 920 ± 5 g |
| Power consumption | 28 W |
| Ingress protection | IP54 |
| Operating temperature | -20° to 50°C (-4° to 122°F) |
| Storage temperature | -20° to 60°C (-4° to 140°F) |
| Compatible aircraft | Matrice 400, Matrice 350 RTK, Matrice 300 RTK (requires DJI RC Plus) |
| Mounting | Detachable DJI Skyport |
| Gimbal | |
| Stabilisation | 3-axis (tilt, roll, pan) |
| Angular vibration range | Hover: ±0.002° · Flight: ±0.004° |
| Controllable range | Tilt: -120° to +60° · Pan: ±320° |
| Zoom camera | |
| Sensor | 1/1.8-inch CMOS, 40 MP |
| Focal length | 7.1–172 mm (equiv. 33.4–809.3 mm) |
| Aperture | f/1.6–f/5.2 |
| DFOV | 66.7°–2.9° |
| Optical zoom | 34× |
| Max digital zoom | 400× |
| Video resolution | 3840×2160@30fps · 1920×1080@30fps |
| Max photo size | 7328×5496 |
| ISO range | Single Shot: 100–25600 · Night Scene: 100–819200 |
| Wide-angle camera | |
| Sensor | 1/1.3-inch CMOS, 48 MP |
| Focal length | 6.72 mm (equiv. 24 mm) |
| Aperture | f/1.7 |
| DFOV | 82.1° |
| Video resolution | 3840×2160@30fps · 1920×1080@30fps |
| Max photo size | 8064×6048 |
| ISO range | Single Shot: 100–25600 · Night Scene: 100–409600 |
| Infrared thermal camera | |
| Thermal imager | Uncooled VOx Microbolometer |
| Focal length | 24 mm (equiv. 52 mm) |
| Aperture | f/0.95 |
| DFOV | 45.2° |
| Video resolution | 1280×1024@30fps |
| Photo resolution | 1280×1024 |
| Pixel pitch | 12 μm |
| Spectral band | 8–14 μm |
| NETD | ≤50 mK @ f/1.0 |
| Digital zoom | 32× |
| Temperature measurement range | High Gain: -20° to 150°C / -20° to 450°C (with density filter) · Low Gain: 0° to 600°C / 0° to 1600°C (with density filter) |
| Temperature measurement methods | Spot, area, centre-point |
| Palettes | White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron |
| Laser range finder | |
| Wavelength | 905 nm |
| Measurement range | 3–3000 m |
| Measurement accuracy | ≤500 m: ±(0.2 m + distance × 0.15%) · >500 m: ±1.0 m |
| Safety class | Class 1 |
| NIR auxiliary light | |
| Wavelength | 850 nm |
| FOV | 4.6 ± 0.6° (round) |
| Illumination range | Approx. 8 m diameter circle @ 100 m |
| Safety class | Class 1 |
FAQ
What is the difference between the Zenmuse H30 and H30T?
The Zenmuse H30 includes the wide-angle camera, zoom camera, laser range finder, and NIR auxiliary light. The H30T adds a fifth module — a 1280×1024 infrared thermal camera with temperature measurement capabilities — making it the recommended choice for applications requiring thermal detection, such as search and rescue, fire detection, electrical inspection, and security operations.
Which aircraft is the Zenmuse H30T compatible with?
The H30T is compatible with the DJI Matrice 400, Matrice 350 RTK, and Matrice 300 RTK. When used with the M300 RTK, the DJI RC Plus remote controller is required.
Can the thermal and visual cameras be used simultaneously?
Yes. The H30T supports simultaneous live feeds from multiple sensors. The Link Zoom feature also synchronises zoom levels across the thermal and zoom cameras, keeping both views aligned during observation or tracking operations.
What temperature measurement range does the H30T support?
In High Gain mode, the H30T measures temperatures from -20° to 150°C, extendable to 450°C with an infrared density filter. In Low Gain mode, the range extends from 0° to 600°C, or up to 1600°C with the infrared density filter — making it suitable for fire investigation, industrial inspection, and high-heat environments.
Is the H30T suitable for night operations?
Yes. The H30T is specifically designed for day and night operations. Both the zoom and wide-angle cameras support full-colour and black-and-white Night Scene modes. The NIR auxiliary light provides additional 850 nm illumination to enhance the zoom camera's contrast in darkness, and the thermal camera operates independently of visible light conditions entirely.
