Quantum Systems

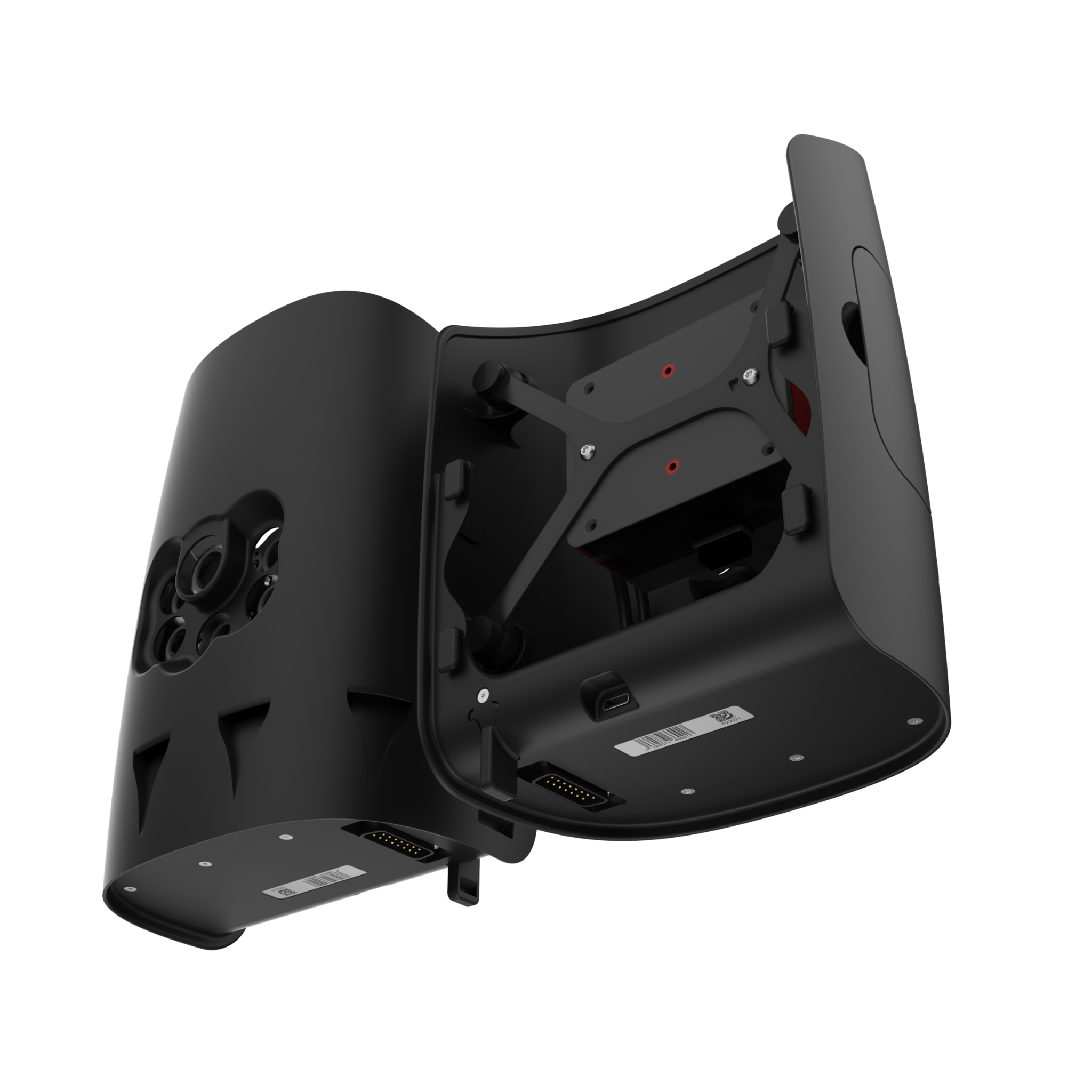

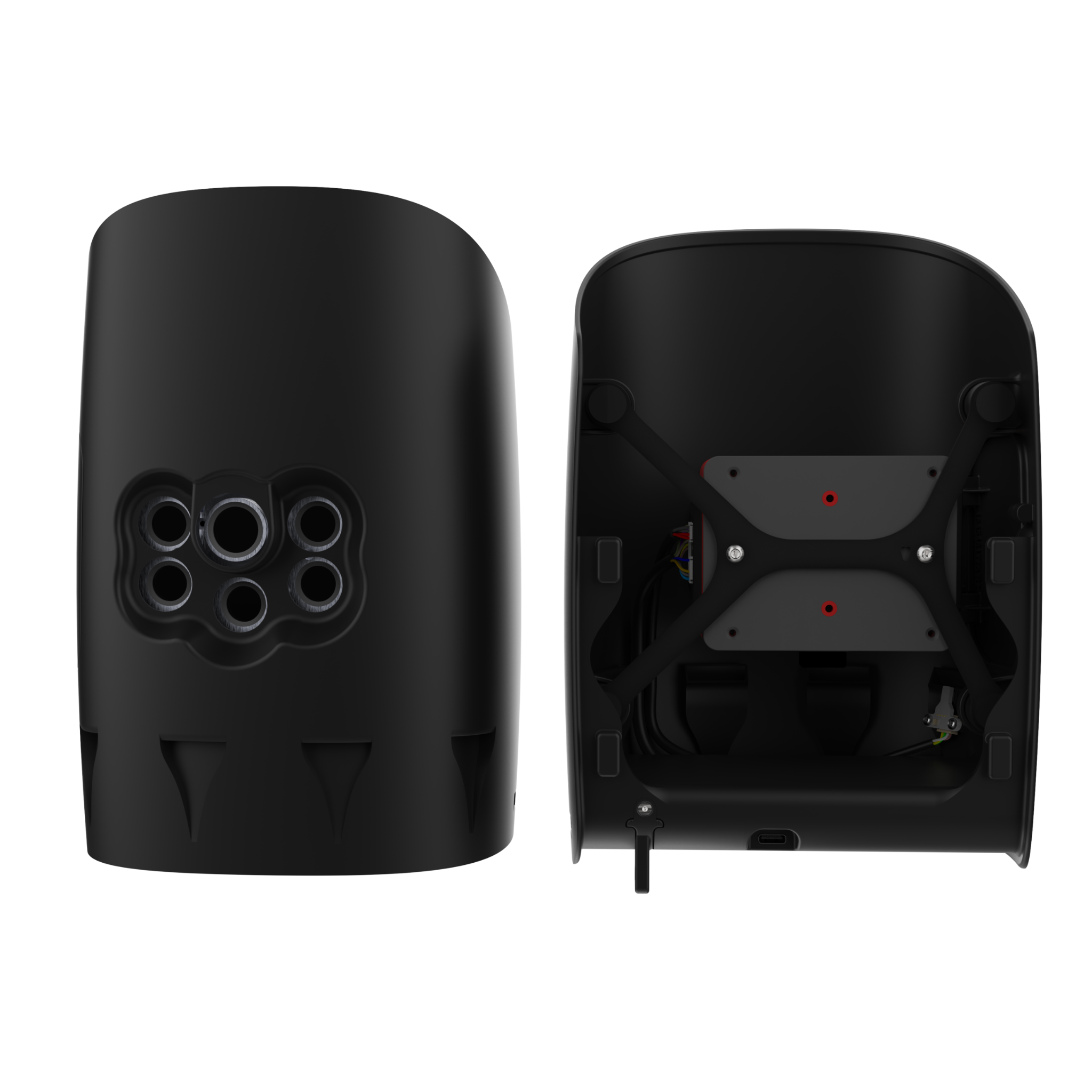

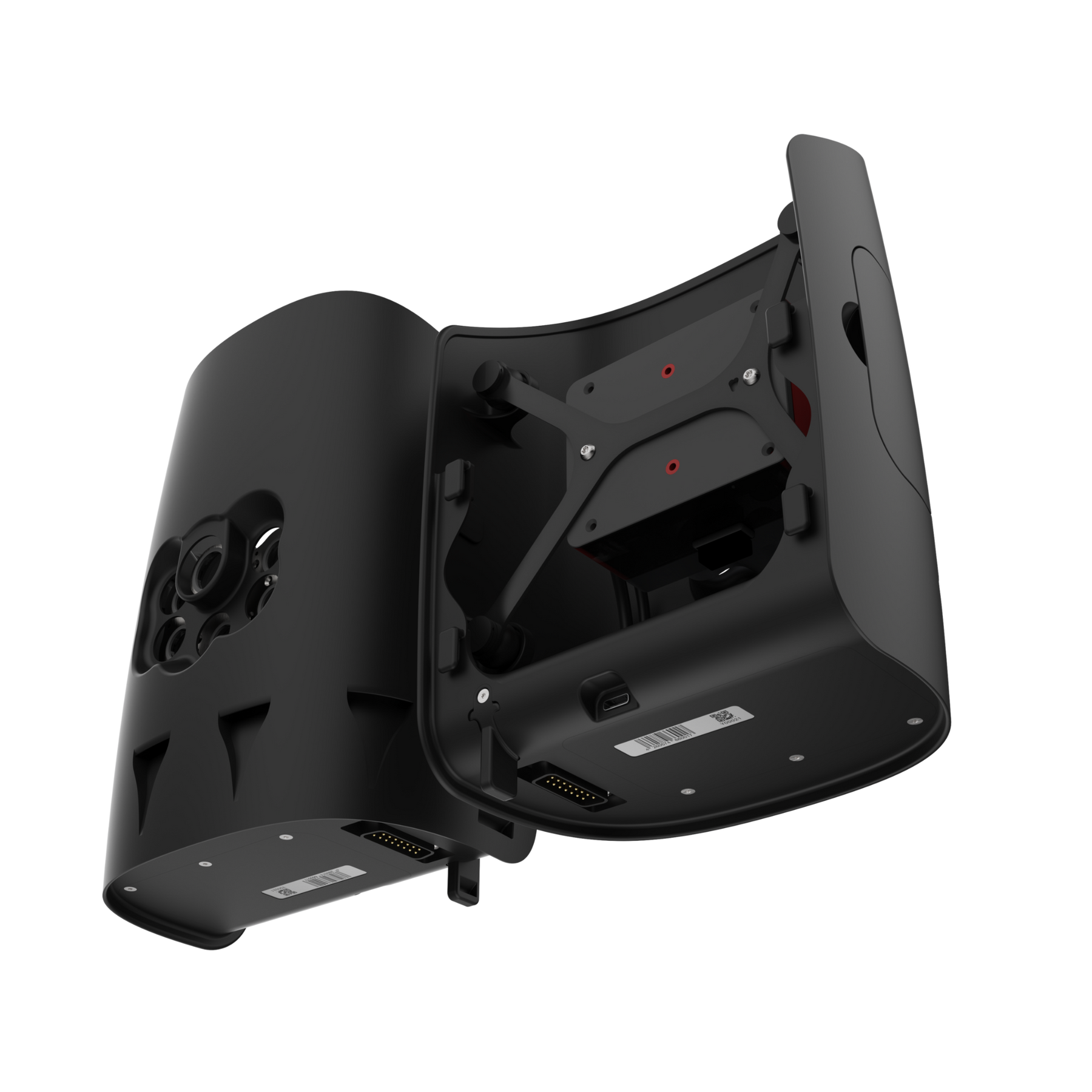

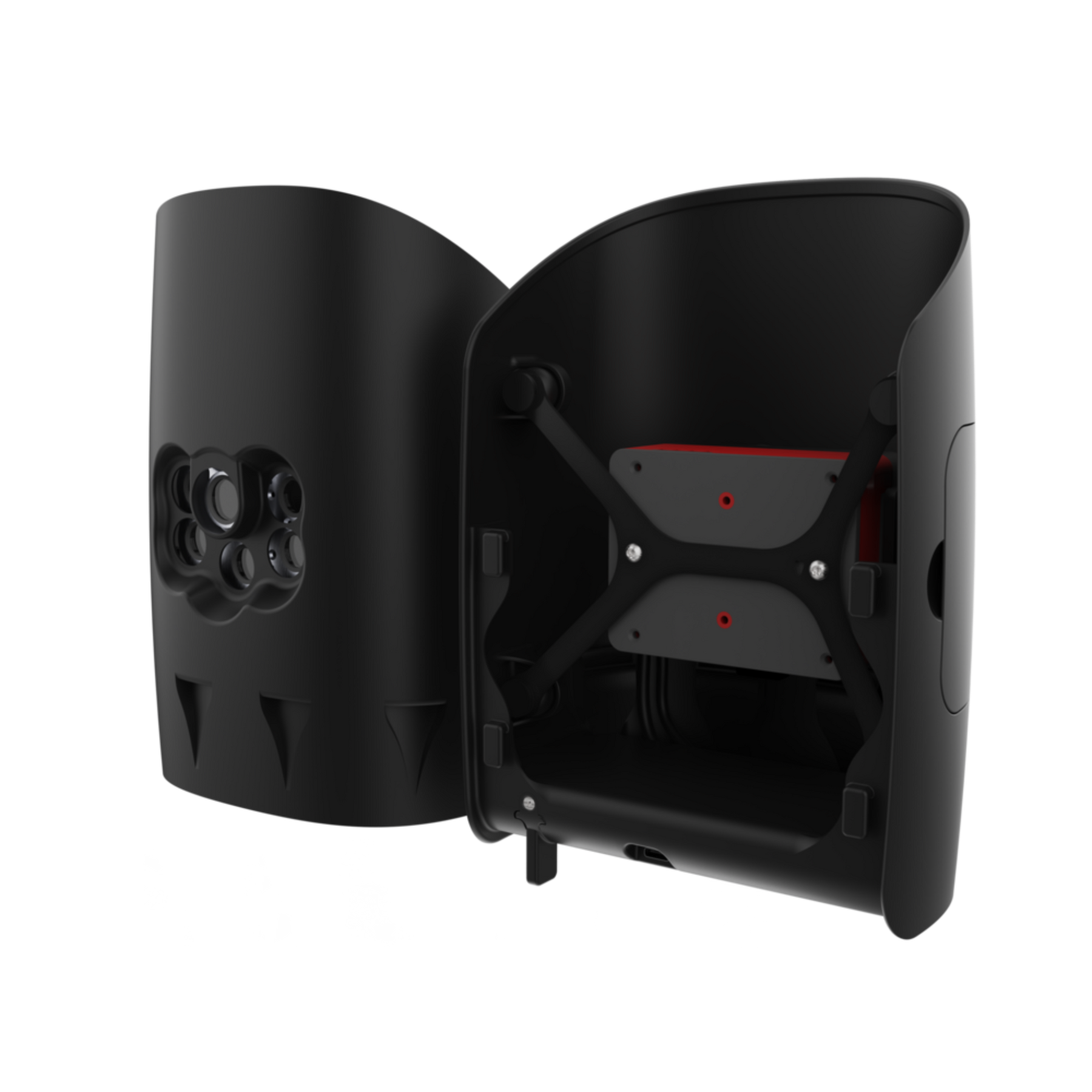

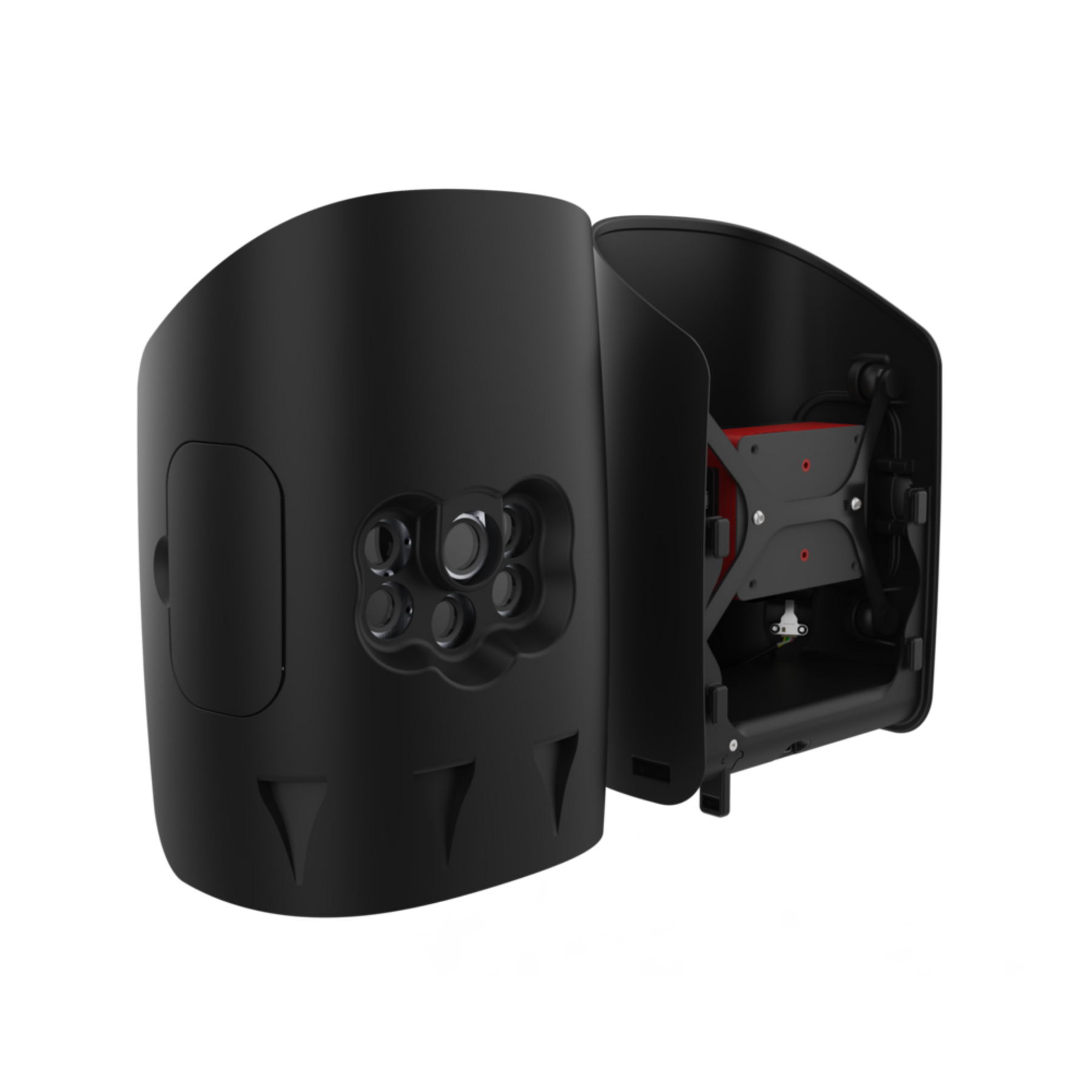

Trinity Pro RedEdge-P Multispectral Sensor
This product requires a quote. Contact us for pricing.
Prefer to talk? Call us at 800-359-0530
MicaSense RedEdge-P
RGB and Multispectral Camera
The RedEdge-P is the ultimate premium solution for high res RGB and multispectral data applicable for agriculture, forestry, environmental monitoring and more.
The RedEdge-P is the premium multispectral sensor for general plant health monitoring plus plant counting, early weed detection and other tasks requiring machine learning. With pan-sharpening.
RedEdge-P Sensor
Technical Specification
| Sensor resolution | 1456 x 1088 (1.6MP per MS band), 2464 x 2056 (5.1MP panchromatic band) |
| Wave length | Blue (475 nm center, 32 nm bandwidth), Green (560 nm center, 27 nm bandwidth), Red (668 nm center, 14 nm bandwidth), RedEdge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth) |
| RGB Color output | 5.1 MP (global shutter, aligned with all bands)* |
| GSD |
7.7 cm per pixel (per MS band) at 120m
(~400 ft) AGL 3.98 cm per pixel (panchromatic band) at 120m (~400 ft) AGL |
| Exposure Interval | 0.8s |
| Interfaces |
3 configurable GPIO / select from:
Host virtual button. USB 2.0 port for WiFi. Serial.
10/100/1000 Ethernet. CF Express for storage |
| Field of view | 50° HFOV x 38° VFOV (MS), 44° HFOV x 38° VFOV (PAN) |
| Storage | CFexpress Card |
| Payload weight RTF | 504 g |
| Dimensions | 8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in) |
| External power | 7.0 V – 25.2 V |
| Power input | 5.5/7.0/10W (standby, average, peak) |
*with appropriate post-processing
