GPC

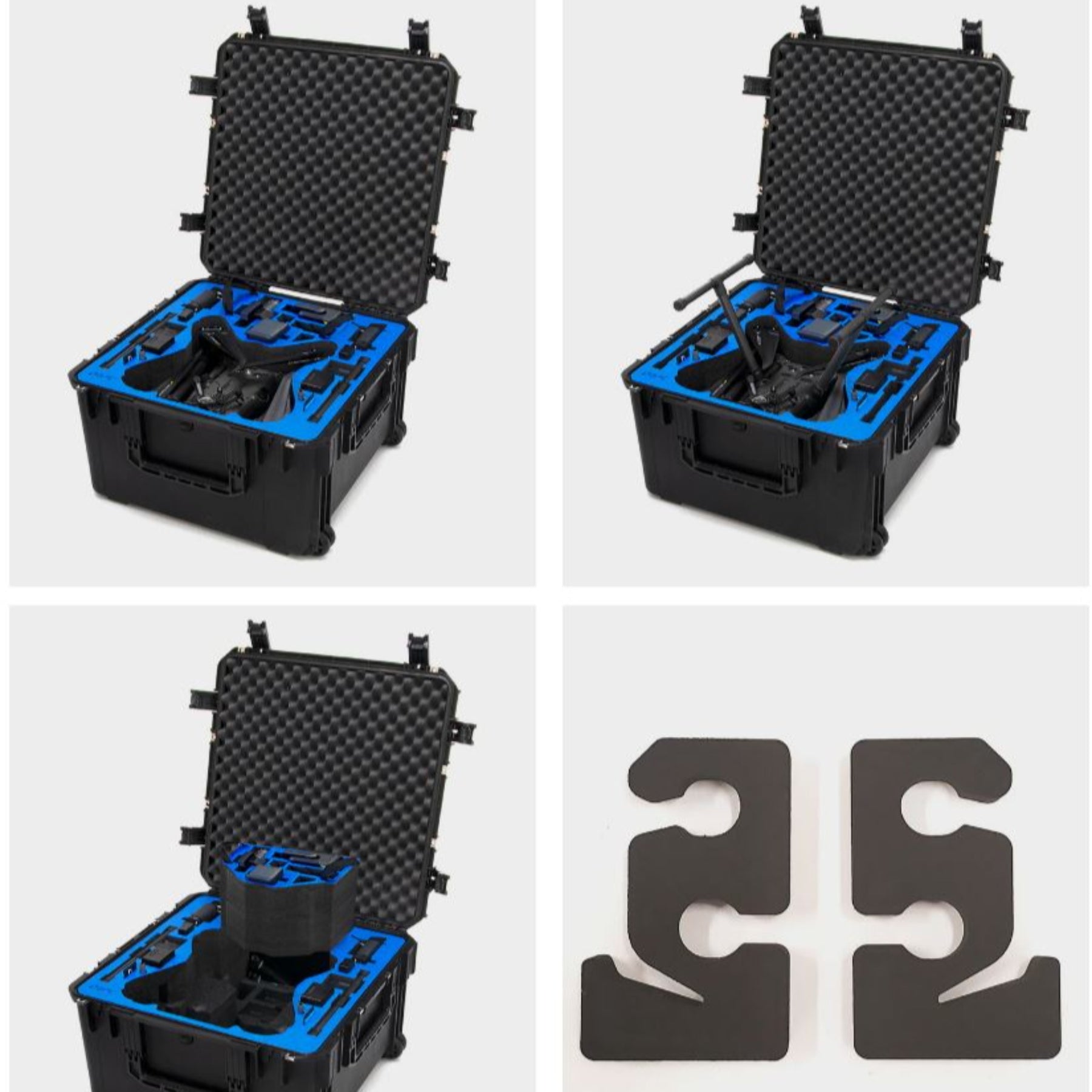

GPC DJI Matrice 300 V2 Case
The GPC DJI M300 Hard Case V2 is the updated version of GPC's full-kit rolling case for the DJI Matrice 300 RTK, with a redesigned payload tray that accommodates the modern DJI Zenmuse lineup: Zenmuse L1 LiDAR, P1 photogrammetry, H20, H20T, H20N, and the Wingsland Z15 spotlight. The same MIL-spec SKB shell, inline wheels, and lifetime replacement guarantee as the V1, but the foam is tooled around the payloads operators are flying today rather than the older Z30 / XT2 generation. Carries four flights worth of TB60 batteries (eight packs), two controllers, two controller batteries, spare props, and accessories in one watertight case. Made in the USA.
USA-made MIL-spec rolling case for the DJI Matrice 300 RTK. Updated payload tray for L1, P1, H20, H20T, H20N, and Z15. Eight TB60 batteries, two controllers, spare props, accessories — full mission kit in one SKB-spec shell.
Features
- Full M300 RTK mission kit in one rolling case: aircraft, eight TB60 flight batteries (four full rotations), two controllers, two controller batteries, updated payload tray, spare props, and accessory cavities
- Updated removable payload tray with water-jet precision-cut cavities for the DJI Zenmuse L1 LiDAR, Zenmuse P1 photogrammetry camera, Zenmuse H20, H20T, H20N, and Wingsland Z15 spotlight — the M300 RTK's primary payload lineup since 2021
- Same SKB military-spec hard-shell case as the original V1, made in the USA, with water-jet precision-cut closed-cell foam tooled for the current M300 RTK kit
- Industrial-strength pull handle and inline skate-style wheels — sized for a 28-pound empty case that loads to 70+ pounds with a full battery and payload complement
- Padlock-ready: padlock holes are reinforced with stainless steel padlock protector clips for secure transport in vehicles, hotels, and shared facilities
- Watertight and dust tight construction (MIL-C-4150J), resistant to UV, solvents, corrosion, and fungus (MIL-STD-810F), and rated for impact protection (MIL-STD-810F)
- Ambient pressure equalization valve (MIL-STD-648C) automatically equalizes air pressure during elevation changes
- Molded-in hinge and trigger-release latches engineered for daily open-close cycles
- Two accessory cavities under the payload tray for cables, USB chargers, and small accessories
- Replacement payload tray sold separately if you need to upgrade an existing V1 case to V2 payload compatibility without buying a complete new case
- Lifetime replacement guarantee from Go Professional Cases on the case shell and hardware
What it carries
- 1 × DJI Matrice 300 RTK aircraft (with batteries installed for storage)
- 8 × DJI TB60 Intelligent Flight Batteries (four flight rotations)
- 2 × DJI Smart Controller Enterprise (with the option to keep DJI lanyard attached)
- 2 × WB37 controller batteries
- Spare propellers
- Removable updated payload tray for one of: DJI Zenmuse L1, P1, H20, H20T, H20N, or Wingsland Z15 (pluck the perforated foam to combine cavities for other configurations)
- 2 × Cavities for accessories under the payload tray
- 1 × Cavity for GPC LensPen MicroPro (sold separately)
- 1 × Cavity for GPC Micro SD Card Holder (sold separately)
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Go Professional Cases (GPC), Inc. |
| SKU | GPC-DJI-M300-V2 |
| Country of origin | Made in the USA (Poway, California) |
| Compatible aircraft | DJI Matrice 300 RTK |
| Shell | SKB military-spec hard case |
| Foam | Water-jet precision-cut, closed-cell, tooled for the current M300 RTK kit with updated payload tray |
| Exterior dimensions (L × W × D) | 26.50 × 26.54 × 15.65 in |
| Interior dimensions (L × W × D) | 24.00 × 24.00 × 14.00 in |
| Weight (empty) | 28 lb |
| Shipping weight | 35 lb |
| Wheels | Inline skate-style |
| Pull handle | Industrial-strength |
| Watertight rating | MIL-C-4150J |
| Environmental resistance | MIL-STD-810F (UV, solvents, corrosion, fungus, impact) |
| Pressure equalization | MIL-STD-648C valve, automatic |
| Hinge / latch system | Molded-in hinge, trigger-release latches |
| Security | Padlock holes with stainless steel protector clips (padlocks sold separately) |
| Side handle | Snap-down rubber over-molded cushion grip |
| Warranty | Lifetime replacement guarantee |
V1 vs. V2: which one is right for me?
Both versions share the same SKB shell, dimensions, weight, wheel design, controller cavities, battery cavities, and accessory layout. The difference is the payload tray:
- V1 payload tray is tooled for the original M300 Zenmuse lineup: H20, H20T, Z15, Zenmuse Z30, and FLIR XT2 — payloads released around 2020 and earlier.
- V2 payload tray (this product) is tooled for the current M300 RTK lineup: Zenmuse L1 LiDAR, P1 photogrammetry, H20, H20T, H20N night vision, and Wingsland Z15 — payloads released from 2021 onward.
Choose the V2 if you're flying the L1, P1, or H20N on your M300 RTK. Choose the V1 if you're still on the legacy Z30 / XT2 payloads. If you have a V1 case and have upgraded your payloads since, GPC sells the V2 payload tray as a separate replacement SKU — you can swap the tray without replacing the whole case.
What about the Matrice 350 RTK or RC Plus controllers?
The V2 case (like the V1) is tooled around the M300 RTK kit with the Smart Controller Enterprise. The Matrice 350 RTK ships with the larger DJI RC Plus controller, which doesn't match the V2 controller cavities. For an M350 RTK with RC Plus, the correct GPC product is the GPC DJI Matrice 350 Case (separate SKU). If you're running an M350 RTK with the legacy Smart Controller Enterprise (uncommon but possible), the V2 may still work — contact us to confirm fit before ordering.
Who this is for
- Matrice 300 RTK operators flying current-generation Zenmuse payloads (L1, P1, H20, H20T, H20N) who want a case tooled specifically for that configuration
- Surveying and mapping crews running Zenmuse L1 LiDAR or P1 photogrammetry on an M300 RTK, where the case needs to protect both the aircraft and the precision payload
- Public-safety and law-enforcement programs running H20N for night-vision missions, where the case carries a complete kit including the specialized payload
- Fleet operators with existing M300 RTK programs that have transitioned from older H20-only configurations to mixed L1 / P1 / H20-series fleets
- Operators upgrading from the V1 payload tray to support newer payloads without replacing the whole case (V2 tray sold separately)
- Public-safety, inspection, and utility programs that need a USA-made MIL-spec alternative to manufacturer-supplied cases with a lifetime replacement guarantee
What's included
- 1 × GPC DJI M300 Hard Case V2 (hard shell + custom M300 RTK foam insert with updated removable payload tray)
Please note: The aircraft, controllers, batteries, propellers, charger, payloads, and other accessories are sold separately. The GPC LensPen MicroPro and GPC Micro SD Card Holder are also sold separately — the case has cavities pre-cut for them, but the accessories themselves are not included. Padlocks for the case's lockable holes are sold separately.
FAQ
What's the difference between the V1 and V2 cases?
Same SKB shell, same dimensions, same wheels, same MIL-spec ratings, same controller and battery cavities. The difference is the removable payload tray. The V1 tray is cut for H20, H20T, Z15, Z30, and FLIR XT2 — DJI's older M200/M300 payload lineup. The V2 tray (this product) is cut for L1, P1, H20, H20T, H20N, and Z15 — the modern M300 RTK payload lineup. Pick the V2 if you're flying L1 or P1 or H20N; pick the V1 if you're still on Z30 / XT2.
Can I upgrade my V1 case to V2 payload compatibility?
Yes. GPC sells the V2 payload tray as a separate "DJI Matrice 300 V2 Payload Tray Replacement" SKU. If you already have a V1 case, you can buy just the updated tray and install it in your existing shell — you don't need to replace the whole case. Contact us to order the tray separately.
Does the V2 work with the DJI RC Plus controller?
The V2 case is tooled around the Smart Controller Enterprise that originally shipped with the M300 RTK. The DJI RC Plus is a different controller (larger, with WB37 external batteries), and it doesn't match the V2's controller cavities cleanly. For M350 RTK kits with RC Plus, GPC sells the separate "DJI Matrice 350 Case" — that's the correct product if your kit uses the RC Plus.
Does the V2 payload tray fit the Zenmuse H30 or H30T?
The V2 tray is cut for L1, P1, H20, H20T, H20N, and Z15. The newer H30 and H30T payloads (released 2024) have different dimensions and may not seat correctly in the V2 tray. GPC produces updated trays for newer payload generations; for H30-series compatibility, contact us about current tray options or a custom foam configuration.
How heavy is the case when fully loaded?
Empty weight is 28 pounds. Loaded with the M300 RTK aircraft (~6.3 kg / 14 lb), eight TB60 batteries (~1.35 kg / 3 lb each, ~24 lb total), two controllers, two WB37 batteries, payloads, and accessories, total weight is approximately 70-80 pounds. The inline skate wheels and pull handle are designed for that load — wheel the case rather than carrying it. The cushion grip side handle is for short lifts in and out of vehicles.
Can I check this on an airline?
The case shell is rated for the impact and environmental stresses of airline checked baggage, but the exterior dimensions (26.5 × 26.5 × 15.7 in) plus the loaded weight exceed standard checked baggage limits on most commercial airlines. Expect oversized/overweight surcharges and verify with your specific airline before traveling. Lithium-battery restrictions also apply: TB60 batteries are ~274 Wh each, far above the FAA / IATA 100 Wh threshold, and cannot fly as carry-on or checked baggage on a commercial passenger flight. TB60 batteries require Class 9 hazardous materials shipment by a licensed freight carrier.
Is the case lockable?
Yes. The padlock holes are reinforced with stainless steel padlock protector clips. The case accepts standard padlocks (sold separately). For programs that need TSA-compliant locks or specific security ratings, verify the padlock specifications against your organization's policy.
Can I customize the foam?
The V2 foam is tooled for the standard M300 RTK kit, including the removable payload tray with perforated cavities for individual Zenmuse payloads. If you don't carry one of the supported payloads, you can pluck the perforated foam to convert the cavity to general storage. For fully custom foam cuts, GPC offers custom foam services as a separate order.
Where is it made?
Designed and built in Poway, California by Go Professional Cases — the same manufacturer that supplies hard cases for DJI's enterprise drone lineup used by public-safety, surveying, federal, and commercial operators. The shells are SKB military-spec, and the foam is water-jet cut in-house in the United States.
What's the warranty?
The GPC case ships with a lifetime replacement guarantee from Go Professional Cases against manufacturing defects in the shell, hinge, latch hardware, and wheels. The foam insert and payload tray are consumable; replacement foam and trays are available as separate SKUs. Standard exclusions apply for damage from extreme misuse or unauthorized modification.
