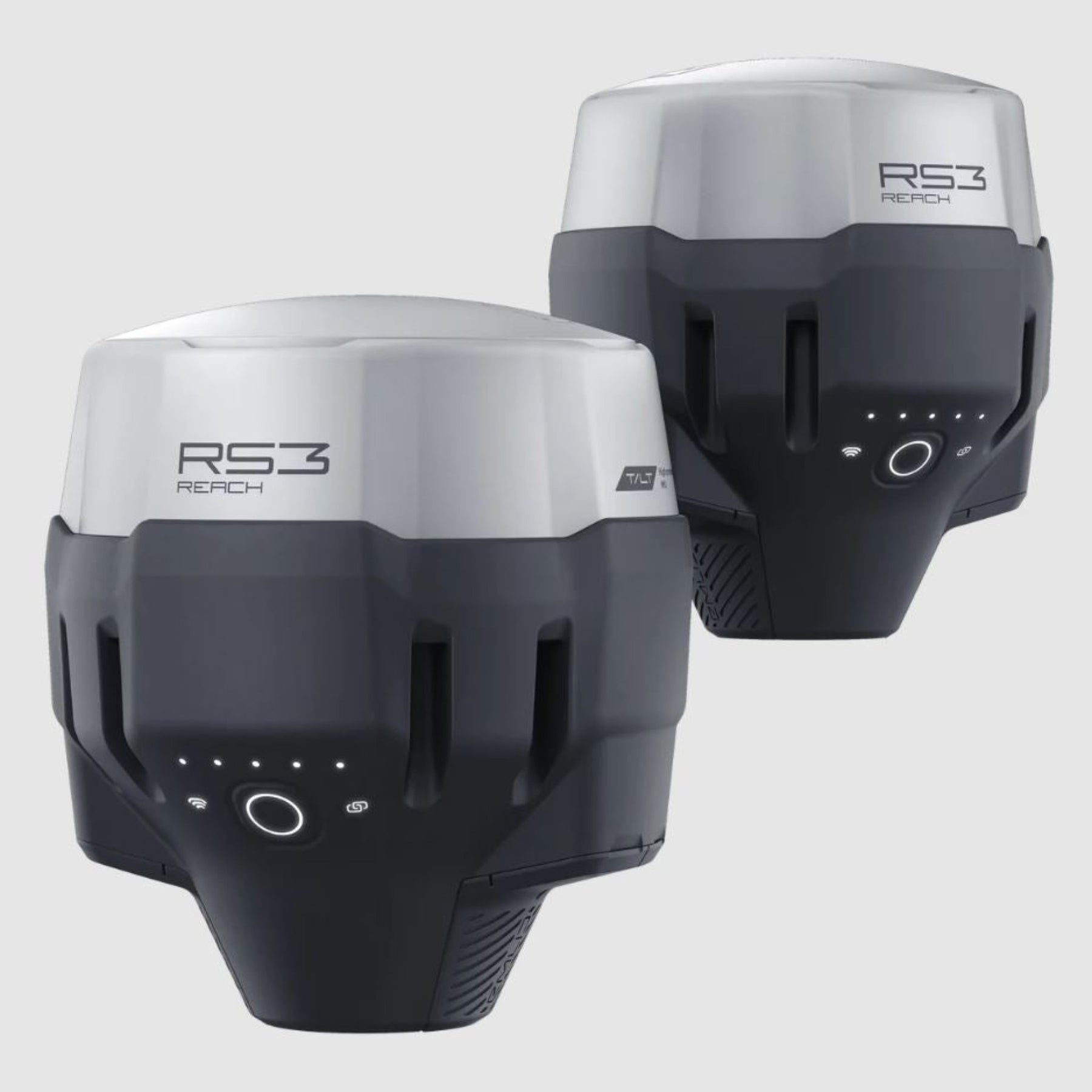

The Emlid Reach RS3 Survey Kit bundles two RS3 receivers for a complete, field-ready RTK base and rover setup. With IMU-based tilt compensation on both units, centimetre-accurate surveying is possible at up to 60° of tilt — no levelling required. Everything you need to start collecting survey-grade data is included straight out of the box.
A complete RTK system in two cases — set up your base, grab your rover, and get to work.
Features
- Includes two Reach RS3 receivers, pre-configured for use as a base and rover pair over LoRa radio — no additional hardware required
- IMU-based tilt compensation on both units allows accurate point collection at up to 60° of tilt, speeding up work at building corners, walls, and hard-to-reach locations
- Calibration-free and immune to magnetic disturbances — reliable tilt performance even near metal structures and reinforced surfaces
- LoRa radio link provides up to 8 km base-to-rover range; both units also support LTE NTRIP for CORS network connectivity
- PPK-capable with RINEX logging on both receivers — compatible with Emlid Studio, OPUS, AUSPOS, and third-party PPP services
- Up to 22 hours battery life per unit; charges via USB-C and accepts external power banks for multi-day fieldwork
- IP67 waterproof and impact-resistant, rated from -20 to +65°C for demanding survey environments
- Managed through Emlid Flow for field data collection, stakeout, and team collaboration — free to use with optional subscription upgrade
Specifications
| Specification | Value |
|---|---|
| Dimensions (each unit) | 126 × 126 × 142 mm |
| Weight (each unit) | 950 g |
| Operating temperature | -20 to +65°C |
| Ingress protection | IP67 |
| Battery | Li-Ion 5200 mAh, 7.2 V (37.44 Wh) |
| Battery life | 22 hrs logging / 18 hrs RTK rover with tilt |
| Charging | USB Type-C, 5 V / 3 A |
| GNSS signals | GPS/QZSS L1C/A, L2C · GLONASS L1OF, L2OF · BeiDou B1I, B2I · Galileo E1B/C, E5b |
| Channels | 184 |
| Update rate | Up to 10 Hz |
| Convergence time | ~5 seconds (typically) |
| Static accuracy (H / V) | 4 mm + 0.5 ppm / 8 mm + 1 ppm |
| PPK accuracy (H / V) | 5 mm + 0.5 ppm / 10 mm + 1 ppm |
| RTK accuracy (H / V) | 7 mm + 1 ppm / 14 mm + 1 ppm |
| Tilt RTK accuracy | ±2 mm + 0.3 mm/° |
| Tilt range | Up to 60° |
| Radio (LoRa) | 868/915 MHz, up to 8 km range |
| UHF radio | 410–470 MHz receive-only (TRIMTALK 450S), antenna sold separately |
| LTE modem | Global bands, nano-SIM |
| Wi-Fi | 802.11 b/g/n |
| Bluetooth | 5.4 |
| Ports | RS-232, USB Type-C |
| Internal storage | 16 GB |
| Data formats | RINEX, NMEA, LLH/XYZ, UBX |
| Corrections | NTRIP, RTCM3 |
What's included
- 2 × Emlid Reach RS3 receiver
- 2 × LoRa antenna
- 2 × USB-C cable
- 2 × Carrying case with strap
