DJI

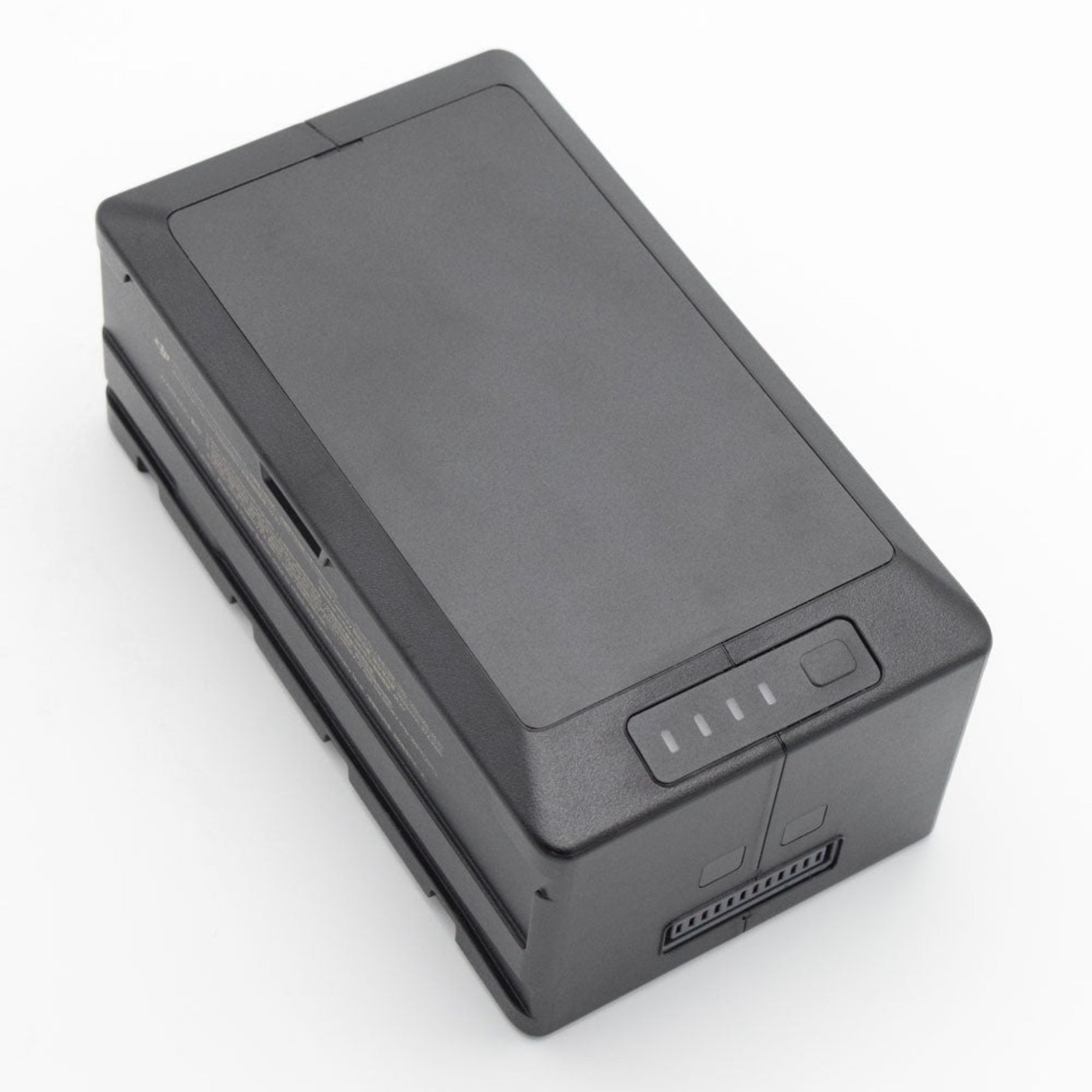

DJI TB60 Battery For Matrice 300 and Matrice 350
No longer available
We recommend DJI TB65 Intelligent Flight Battery instead.
The DJI TB60 Intelligent Flight Battery is the high-capacity flight pack for the Matrice 300 RTK and Matrice 350 RTK. Each 274 Wh, 12S LiPo pack delivers up to 55 minutes of flight time (no payload), and its hot-swappable design lets you change batteries without powering the aircraft down to keep operations moving. The Matrice uses two TB60 batteries per flight, and built-in intelligent management handles charging, discharging, and health monitoring.
274 Wh hot-swappable flight battery for the DJI Matrice 300 RTK and Matrice 350 RTK. Two per aircraft, up to 55 minutes of flight time.
Now replaced by the TB65: DJI has succeeded the TB60 with the newer TB65 Intelligent Flight Battery. The TB65 is cross-compatible with the Matrice 300 RTK and Matrice 350 RTK and offers a roughly two-fold increase in rated charge cycles (about 400 versus 200). The TB60 remains a valid battery for both aircraft and can be used alongside a TB65 fleet, but do not mix a TB60 and a TB65 on the same aircraft in a single flight; use a matched pair. If you are building a new fleet, consider the TB65.
Features
- High-capacity 274 Wh pack delivering up to 55 minutes of flight time (no payload) on the Matrice 300 RTK
- Hot-swappable design lets you replace batteries without powering off the aircraft, minimizing downtime between flights
- Built-in intelligent battery management for charging, discharging, and health monitoring
- Compatible with both the Matrice 300 RTK and Matrice 350 RTK
- Charged and stored in the BS60 or BS65 Intelligent Battery Station (with current firmware)
- Wide operating temperature range for demanding field conditions
Specifications
| Specification | Value |
|---|---|
| Compatible aircraft | DJI Matrice 300 RTK, Matrice 350 RTK |
| Capacity | 5935 mAh |
| Voltage | 52.8 V |
| Battery type | LiPo 12S |
| Energy | 274 Wh |
| Weight | Approximately 1.35 kg |
| Max flight time | Up to 55 minutes (no payload, Matrice 300 RTK) |
| Rated charge cycles | Approximately 200 |
| Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
| Batteries per flight | 2 |
| Hot-swappable | Yes |
Who this is for
- Matrice 300 RTK and Matrice 350 RTK operators who need replacement or additional TB60 flight batteries
- Existing TB60 fleets keeping a consistent battery type across their aircraft
- Public-safety, inspection, and survey teams that want spare packs on hand to extend mission time
What's included
- 1 × DJI TB60 Intelligent Flight Battery
Please note: The Matrice 300 RTK and Matrice 350 RTK use two flight batteries per aircraft. This listing is for a single TB60 battery unless otherwise stated; you need a matched pair to fly. Charge and store TB60 packs in a compatible BS60 or BS65 station on current firmware. Do not mix a TB60 and a TB65 on the same aircraft in a single flight. The aircraft and station are sold separately.
FAQ
Has the TB60 been discontinued?
DJI has succeeded the TB60 with the newer TB65 Intelligent Flight Battery. The TB60 is still a valid, supported battery for the Matrice 300 RTK and Matrice 350 RTK, but the TB65 is the current generation and is rated for roughly twice the charge cycles (about 400 versus 200). For new fleets, the TB65 is worth considering.
Which aircraft use the TB60?
The DJI Matrice 300 RTK and Matrice 350 RTK. Each aircraft flies on two TB60 batteries per flight.
Can I mix TB60 and TB65 batteries?
You can operate a fleet that includes both, and both charge in the BS60 and BS65 stations (with current firmware). However, do not fly a TB60 and a TB65 together on the same aircraft in a single flight. Always use a matched pair of the same battery type.
Is it hot-swappable?
Yes. The TB60's hot-swap capability lets you replace batteries without powering down the aircraft, which keeps turnaround fast during back-to-back operations.
How long is the flight time?
Up to about 55 minutes with no payload on the Matrice 300 RTK. Real-world flight time is lower with payloads installed and varies with conditions and flight profile.
How do I charge and store it?
Use a compatible DJI BS60 or BS65 Intelligent Battery Station, kept on current firmware. The stations support ready-to-fly and storage charge levels to help maintain battery health.
