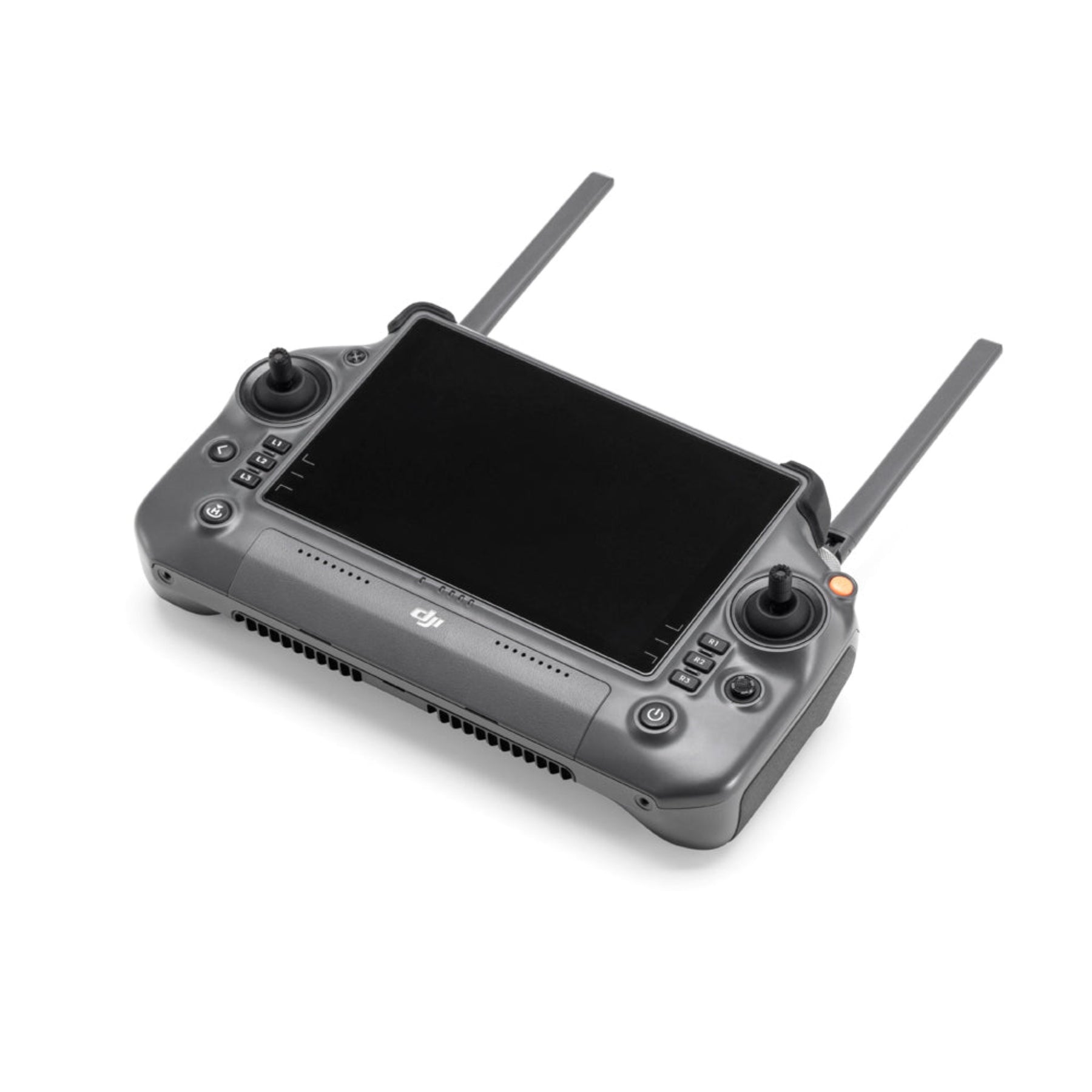

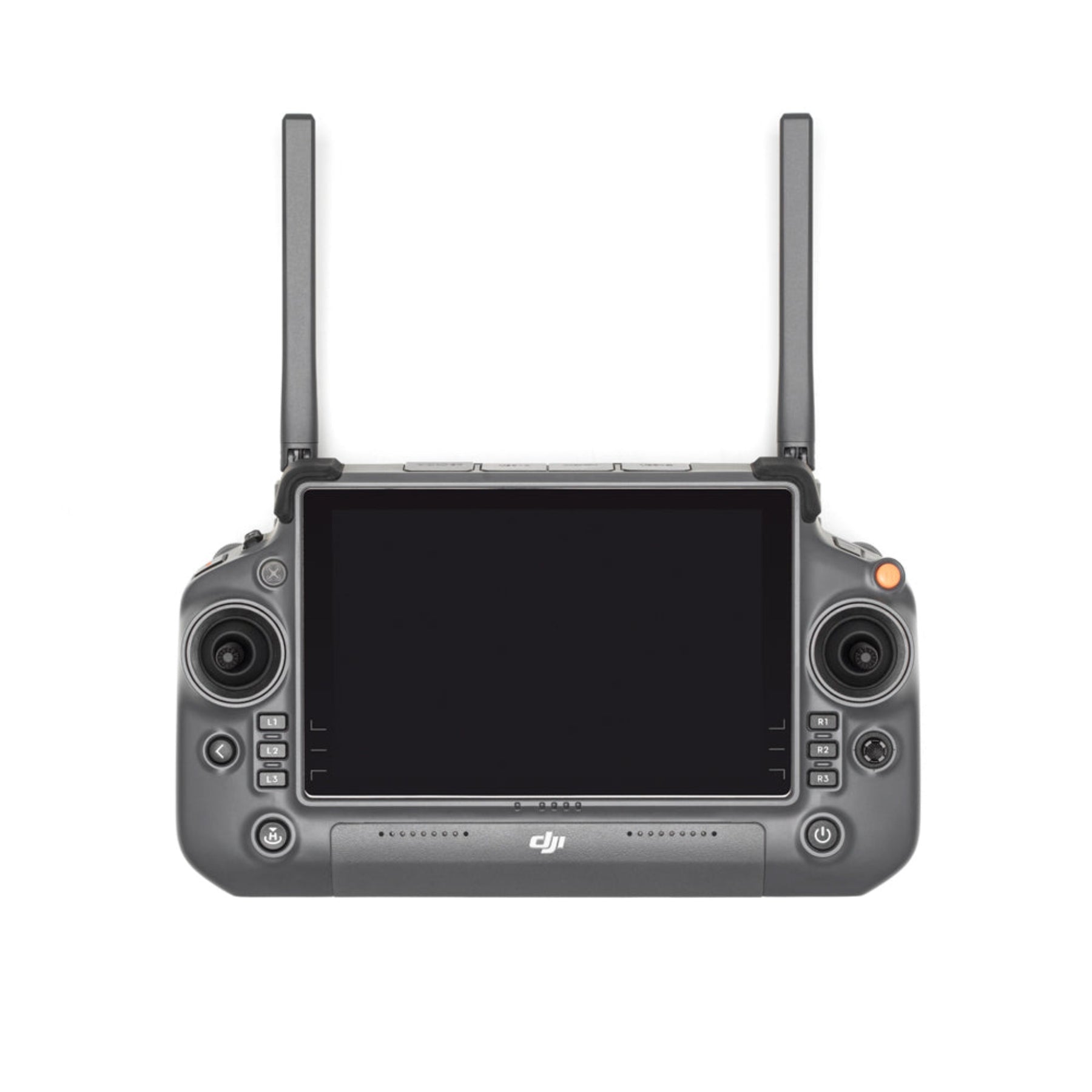

DJI RC Plus

The DJI RC Plus is DJI's flagship enterprise remote controller for the previous-generation Matrice lineup, used to fly the DJI Matrice 350 RTK, the Matrice 30 Series, and the Matrice 300 RTK (with current firmware). It combines a 7.02-inch 1,200 nit FHD touchscreen with DJI's O3 Enterprise video transmission for up to 15 km of range under FCC rules, an IP54 weather rating, and a hot-swappable internal-plus-external battery design that delivers approximately six hours of combined runtime in the field. Six physical mission buttons sit below the sticks for hands-on access to camera switching, gimbal control, and the most common in-flight actions.

Enterprise remote controller for the DJI Matrice 350 RTK, Matrice 30 Series, and Matrice 300 RTK. 7.02-inch 1,200 nit display, IP54, hot-swappable batteries, ~6-hour combined runtime, O3 Enterprise transmission to 15 km (FCC).

Features

• 7.02-inch FHD touchscreen with 1,920 × 1,200 resolution and 1,200 nits of brightness for clear visibility in direct sunlight
• DJI O3 Enterprise video transmission with 15 km maximum range (FCC) and intelligent dual-band switching across 2.4 GHz and 5.8 GHz for stable links in interference
• Compatible with the entire previous-generation Matrice enterprise lineup: Matrice 350 RTK, Matrice 30 Series (M30 and M30T), and Matrice 300 RTK with current firmware
• Six dedicated physical mission buttons positioned next to the control sticks and screen for hands-on camera-view switching (wide / zoom / IR / FPV), gimbal control, and other mission-critical functions without taking eyes off the screen
• IP54 protection rating with a -20 °C to 50 °C operating range — built for sustained operation in rain, dust, snow, and cold-weather field environments
• Hot-swappable battery system: an internal 6,500 mAh battery keeps the controller live while you replace the removable external WB37 pack, so the link to the aircraft never drops during a battery swap
• Approximately 3 hours 18 minutes on the internal battery alone, or approximately 6 hours combined with the optional WB37 external battery installed
• 65 W USB-C Power Delivery charging input with passthrough power support, so the controller can charge or run while connected to a wall charger, vehicle inverter, or portable power station
• Built-in 2T4R antenna array with removable, swappable antennas for customized configurations in challenging RF environments
• Optional 4G transmission via DJI Cellular Dongle (sold separately) for enhanced link in obstructed or BVLOS scenarios
• Supports DJI's dual-operator workflow: a second RC Plus can control the gimbal and payload independently while the primary controller handles flight
• HDMI output, USB-C with OTG, USB-A 2.0, microSD expansion, Wi-Fi 6, Bluetooth 5.1, and triple-mode GNSS (GPS, Galileo, BeiDou)

Specifications

Who this is for

• Replacement. Operators replacing a damaged, lost, or end-of-life RC Plus on an existing Matrice 350 RTK, M30 Series, or M300 RTK
• Second controller / dual-operator setup. Crews running dual-controller missions where one pilot flies the aircraft and a second operator handles the gimbal or payload — common in cinema, complex inspection, and search-and-rescue work
• Fleet standardization. Agencies and contractors running multiple M30 / M300 / M350 airframes who want pilots to operate a consistent controller across the fleet
• Spare for mission-critical operations. Public-safety and emergency-response teams that keep a spare RC Plus charged and ready in case the primary controller fails mid-mission
• Training programs. Flight schools and agency training divisions that need additional controllers to run multi-pilot training without sharing one unit between students

What's included

• 1 × DJI RC Plus Remote Controller

Note: This is the standalone controller. The WB37 external battery, USB-C power adapter, charging hub, DJI Cellular Dongle, neck strap or chest mount, and any aircraft are sold separately. The internal battery is built into the controller and ships pre-installed. Most operators already have these accessories from their existing Matrice kit.

Setup and operation

• Charge the controller fully before first use. A 65 W USB-C PD source reaches full charge in approximately 2 hours, whether powering the internal battery only or both internal and external batteries when the WB37 is installed.
• Link the controller to your aircraft through the standard DJI Pilot 2 setup procedure or the aircraft's linking process. Refer to the user manual for your specific aircraft model.
• For maximum runtime, install the WB37 external battery (sold separately) before extended missions. The hot-swap design lets you replace the external pack mid-flight without dropping the link to the aircraft.
• For 4G-enhanced transmission in obstructed environments or BVLOS operations, install the DJI Cellular Dongle (sold separately) per DJI's instructions.
• Customize the six physical mission buttons through DJI Pilot 2 to match your standard workflow: camera switching, gimbal recenter, payload triggers, return-to-home, or any combination of supported functions.
• For dual-operator missions, pair a second RC Plus with the aircraft per DJI's documented dual-operator setup. The two controllers split duties: one flies the aircraft, the second handles the gimbal and payload.
• Store the controller in a padded case with sticks protected. Broken or bent sticks during transport are the most common controller damage in field-deployed kits.
