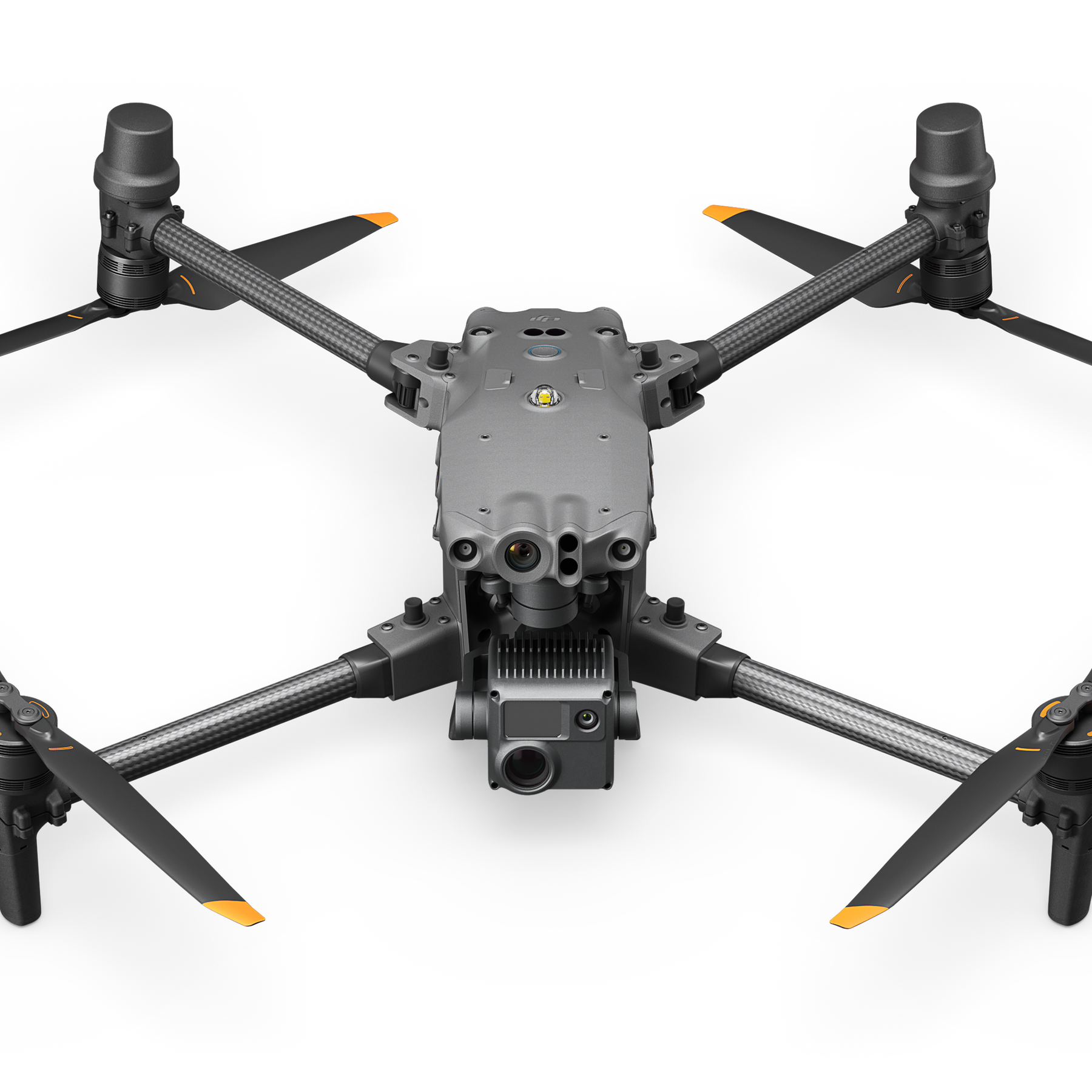

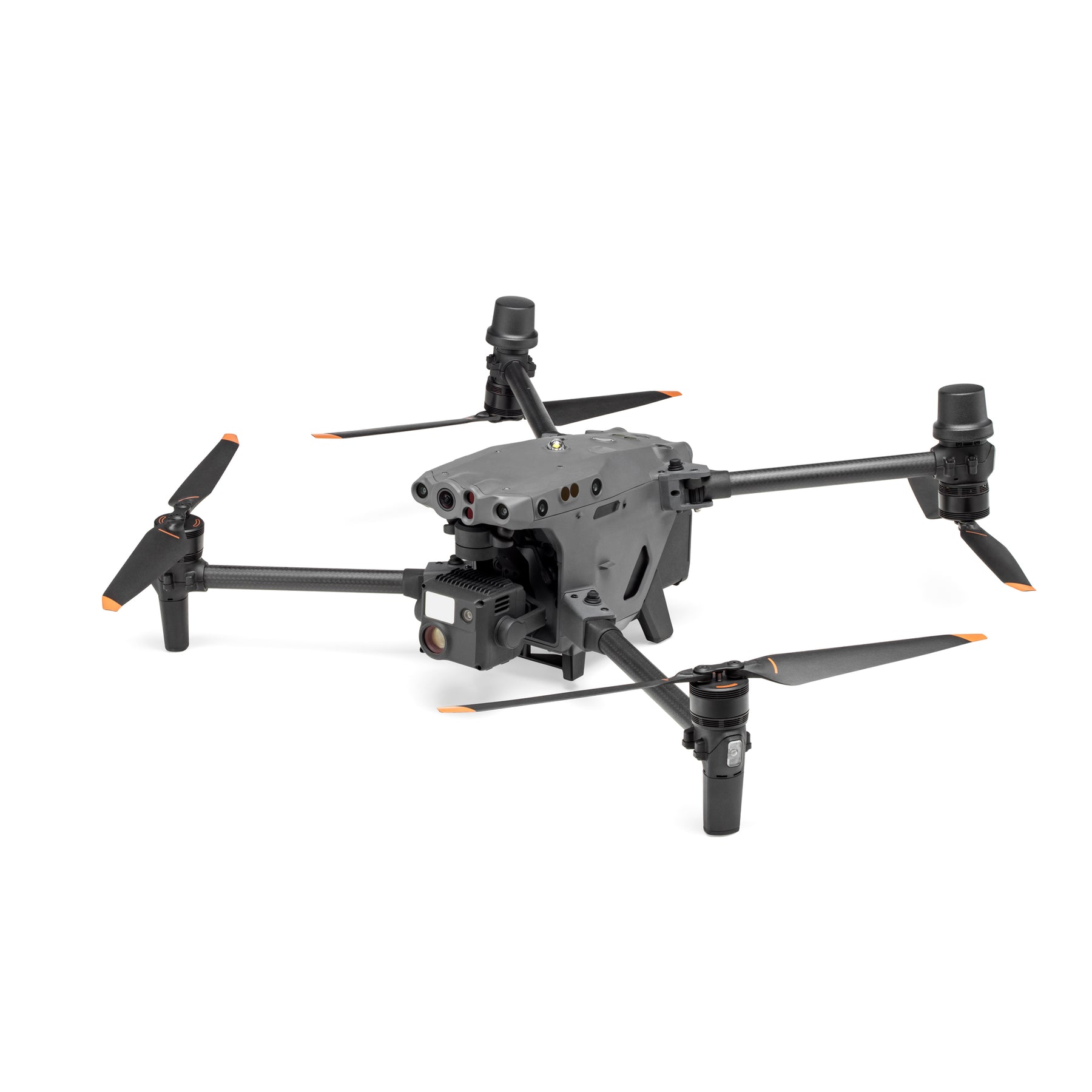

The DJI Matrice 30 is a compact, IP55-rated enterprise drone built for inspection, mapping, public safety, and infrastructure operations. Integrating a 12 MP wide-angle camera, a 48 MP zoom camera with up to 200× hybrid zoom, a laser rangefinder with 1,200 m range, and a forward FPV camera — all in a foldable 3,770 g airframe — the M30 deploys in under three minutes and operates in temperatures from -20°C to 50°C. With O3 Enterprise transmission reaching 15 km, built-in RTK for centimetre-level accuracy, and omnidirectional obstacle sensing, it delivers professional-grade aerial intelligence wherever the mission demands.
Ready to fly in under three minutes — built to keep flying in conditions that ground everything else.
Features
- Three integrated imaging systems — 12 MP wide-angle camera (24 mm equiv.), 48 MP zoom camera with 5–16× optical zoom and 200× hybrid zoom, and a laser rangefinder with 3–1,200 m range for precise target coordinate delivery via PinPoint
- FPV camera (161° DFOV, 1080p/30fps) optimised for low-light conditions provides clear ground and skyline visibility for confident day and night operations
- Smart Low-Light Photo for bright, clear imagery in low-light and dusk conditions
- IP55 ingress protection — dust and water resistant — combined with an operating temperature range of -20° to 50°C for reliable performance in adverse weather
- Omnidirectional obstacle sensing with dual-vision and ToF sensors on all six sides, plus a built-in ADS-B receiver for real-time alerts of nearby crewed aircraft
- Built-in RTK module for centimetre-level positioning accuracy (1 cm + 1 ppm horizontal), supporting GNSS+Vision Fusion Positioning for reliable return-to-home even without GNSS signals
- O3 Enterprise video transmission with 15 km range (FCC), four built-in antennas, and triple-channel 1080p live feeds — with optional 4G Enhanced Transmission via DJI Cellular Dongle for complex environments
- 41-minute max flight time; dual TB30 batteries with hot-swap capability for uninterrupted continuous operations

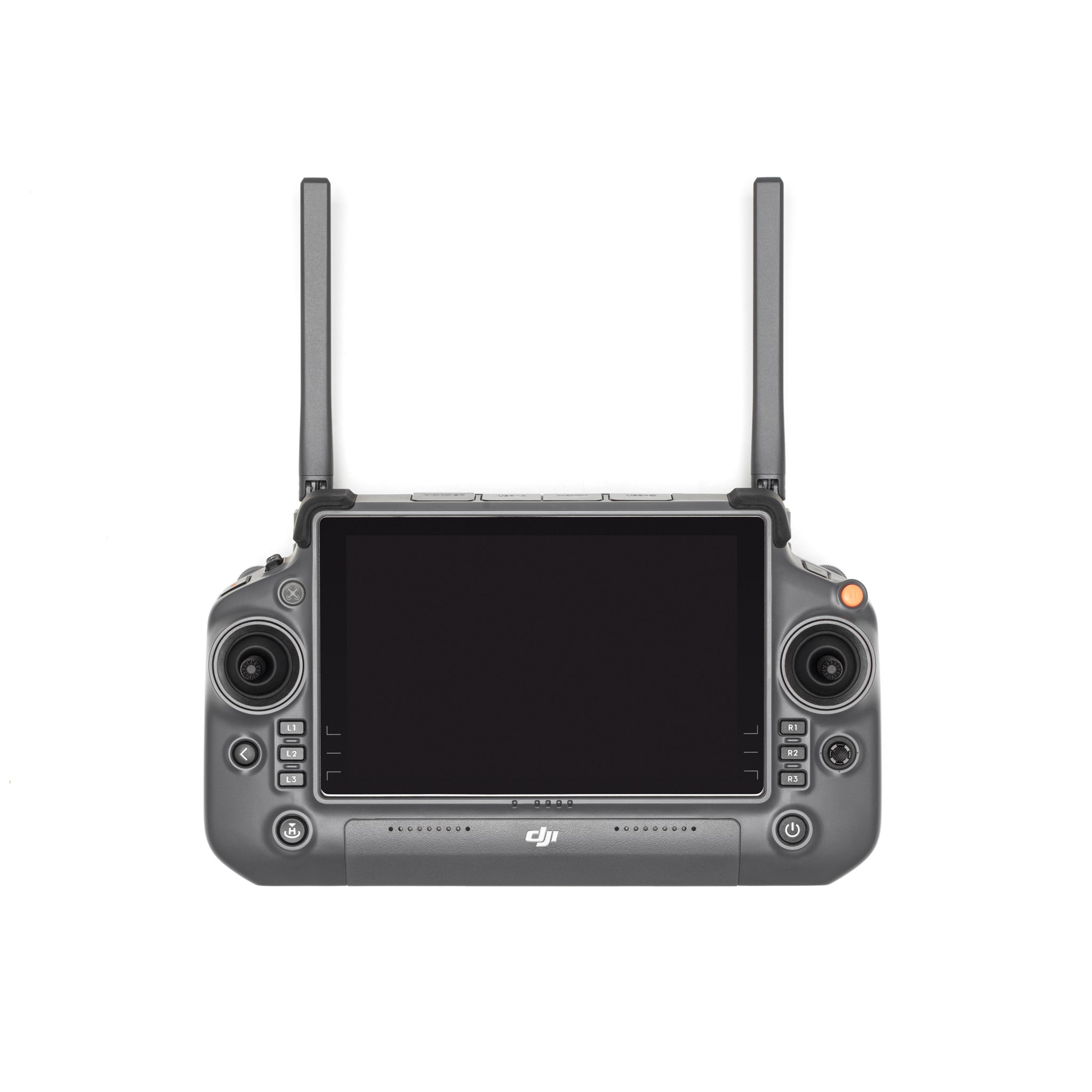

- Controlled via DJI RC Plus — a 7-inch, 1200 cd/m² widescreen enterprise controller with IP54 protection, up to 6 hours of battery life (internal + external), and DJI Pilot 2 for mission planning and flight safety management
- Advanced redundancy systems — dual IMUs, dual barometers, dual compasses, and dual GNSS receivers — to keep critical missions running in unexpected scenarios
- Service ceiling of 7,000 m (with 1676 high-altitude propellers) for high-altitude deployments
Specifications
| Specification | Value |
|---|---|
| Aircraft | |
| Weight (incl. two batteries) | 3,770 ± 10 g |
| Dimensions (folded) | 365 × 215 × 195 mm |
| Dimensions (unfolded, excl. propellers) | 470 × 585 × 215 mm |
| Diagonal wheelbase | 668 mm |
| Max takeoff weight | 4,069 g |
| Max ascent / descent speed | 6 m/s / 5 m/s |
| Max horizontal speed | 23 m/s |
| Max flight time | 41 min |
| Max hover time | 36 min |
| Max wind resistance | 12 m/s |
| Service ceiling | 5,000 m (1671 propellers) · 7,000 m (1676 high-altitude propellers) |
| Operating temperature | -20° to 50°C |
| Ingress protection | IP55 |
| GNSS | GPS + Galileo + BeiDou + GLONASS (GLONASS with RTK enabled) |
| RTK accuracy | 1 cm + 1 ppm (H) · 1.5 cm + 1 ppm (V) |
| Hovering accuracy | ±0.1 m (vision) · ±0.5 m (GPS) · ±0.1 m (RTK) |
| Wide camera | |
| Sensor | 1/2-inch CMOS, 12 MP |
| Lens | DFOV 84° · 24 mm equiv. · f/2.8 · focus 1 m to ∞ |
| Max video resolution | 3840 × 2160 (4K/30fps) |
| Photo size | 4000 × 3000 |
| ISO range | 100–25600 |
| Zoom camera | |
| Sensor | 1/2-inch CMOS, 48 MP |
| Focal length | 21–75 mm (equiv. 113–405 mm) |
| Aperture | f/2.8–f/4.2 |
| Optical zoom | 5×–16× |
| Max hybrid zoom | 200× |
| Max video resolution | 3840 × 2160 (4K/30fps) |
| Max photo size | 8000 × 6000 |
| ISO range | 100–25600 |
| FPV camera | |
| Resolution | 1920 × 1080 |
| DFOV | 161° |
| Frame rate | 30 fps |
| Gimbal | |
| Angular vibration range | ±0.01° |
| Controllable range | Pan: ±90° · Tilt: -120° to +45° |
| Laser rangefinder | |
| Wavelength | 905 nm |
| Measurement range | 3–1,200 m |
| Accuracy | ±(0.2 m + D × 0.15%) |
| Safety class | Class 1M |
| Obstacle sensing | |
| Vision sensing range | Forward: 0.6–38 m · All other directions: 0.5–33 m |
| Infrared sensing range | 0.1–10 m |
| Video transmission (O3 Enterprise) | |
| Max transmission distance | 15 km (FCC) · 8 km (CE/SRRC/MIC) |
| TB30 intelligent flight battery | |
| Capacity | 5,880 mAh |
| Voltage | 26.1 V |
| Energy | 131.6 Wh |
| Weight | Approx. 685 g |
| Operating temperature | -20° to 50°C |
| DJI RC Plus remote controller | |
| Screen | 7.02-inch LCD, 1920×1200, 1200 cd/m² |
| Internal battery | Li-ion, 6500 mAh @ 7.2 V |
| Operating time | Approx. 3 hrs 18 min (internal) · Approx. 6 hrs (internal + external) |
| Ingress protection | IP54 |
| Operating temperature | -20° to 50°C |
FAQ
What is the difference between the Matrice 30 and Matrice 30T?
The Matrice 30 includes a wide-angle camera, zoom camera, FPV camera, and laser rangefinder. The Matrice 30T adds a 640×512 infrared thermal camera with temperature measurement for applications requiring heat detection, such as search and rescue, electrical inspection, and firefighting support. Both models share the same airframe, battery, and transmission system. If thermal imaging is not required for your operations, the M30 offers the same flight performance and visual imaging capabilities at a lower price point.
Does the Matrice 30 include RTK?
Yes. The M30 has a built-in RTK module that delivers 1 cm + 1 ppm horizontal and 1.5 cm + 1 ppm vertical accuracy in RTK Fix mode. It also supports GNSS+Vision Fusion Positioning for reliable return-to-home even in environments with GNSS obstruction or interference.
How quickly can the Matrice 30 be deployed?
The M30 is designed to be ready to fly in under three minutes. The foldable airframe, integrated sensor suite, and pre-flight checklist in DJI Pilot 2 are all designed to minimise setup time, making it well suited to rapid-response scenarios.
Can the Matrice 30 fly in rain or extreme temperatures?
Yes. The M30 carries an IP55 ingress protection rating, making it resistant to dust and water jets. It operates in temperatures from -20° to 50°C, making it suitable for cold-weather operations, tropical environments, and adverse weather conditions that would ground less rugged platforms.
What is the maximum zoom on the Matrice 30?
The M30's zoom camera supports 5×–16× optical zoom and up to 200× hybrid zoom, with a 48 MP sensor and 8K maximum photo resolution. This allows operators to identify subjects and capture detail at considerable distances without repositioning the aircraft.
