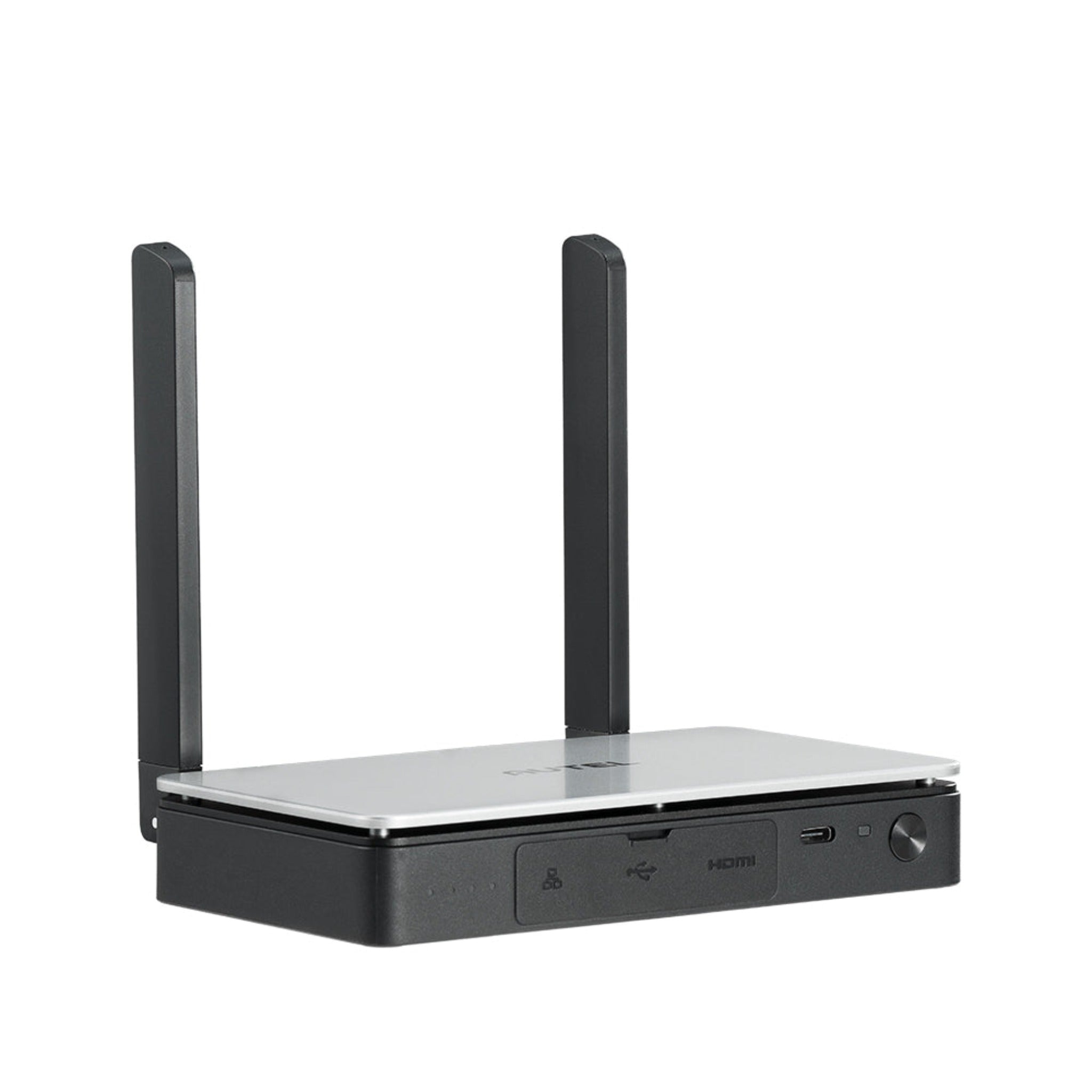

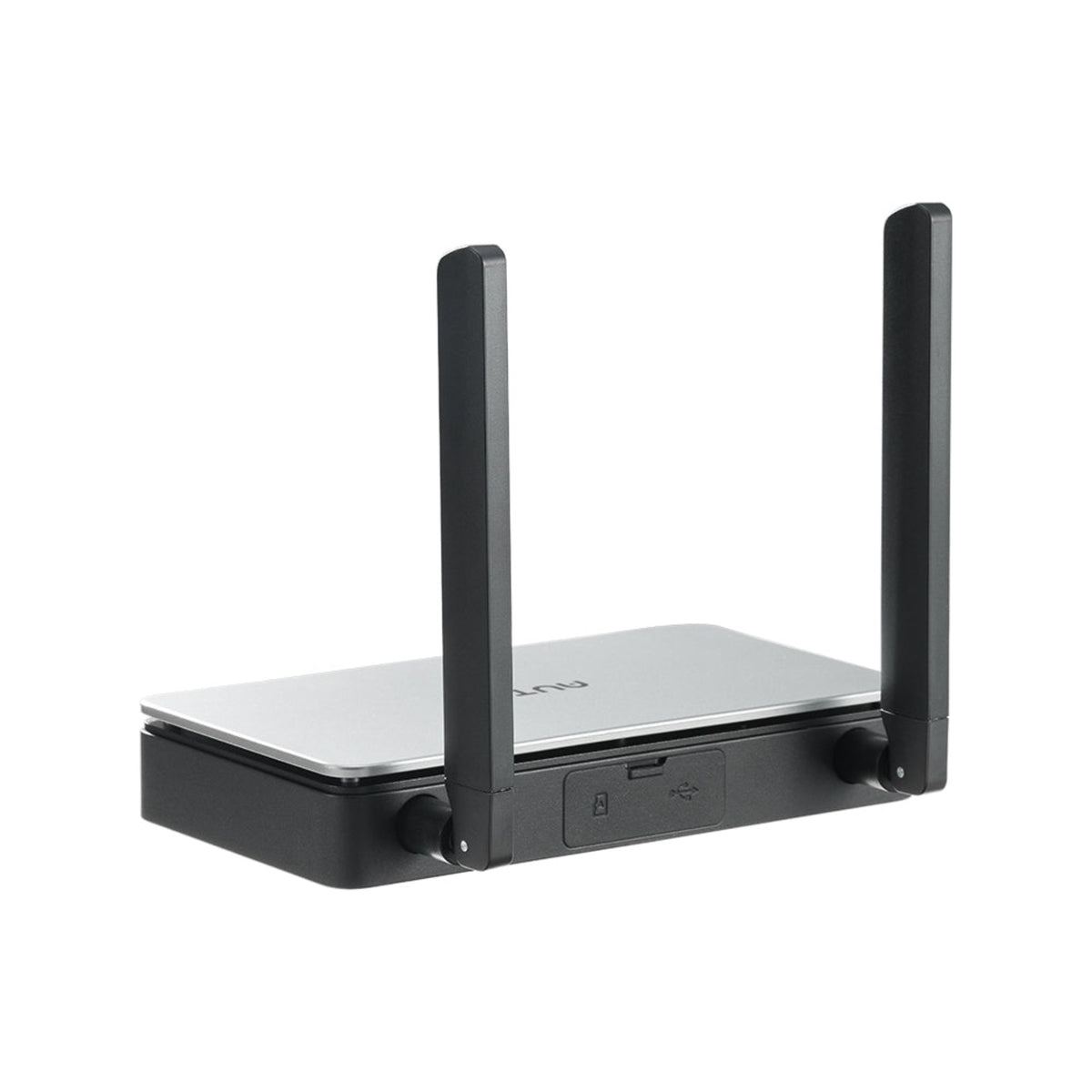

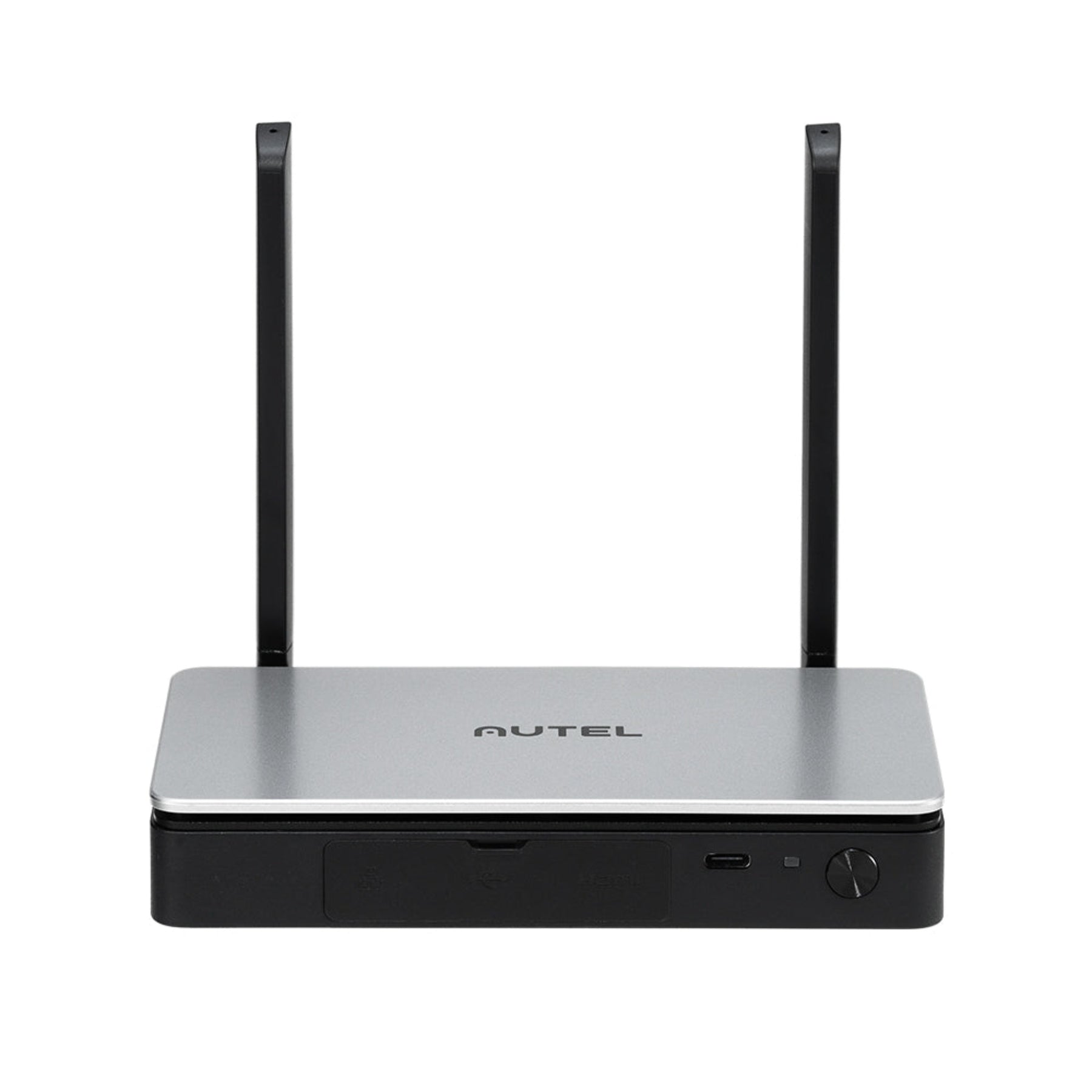

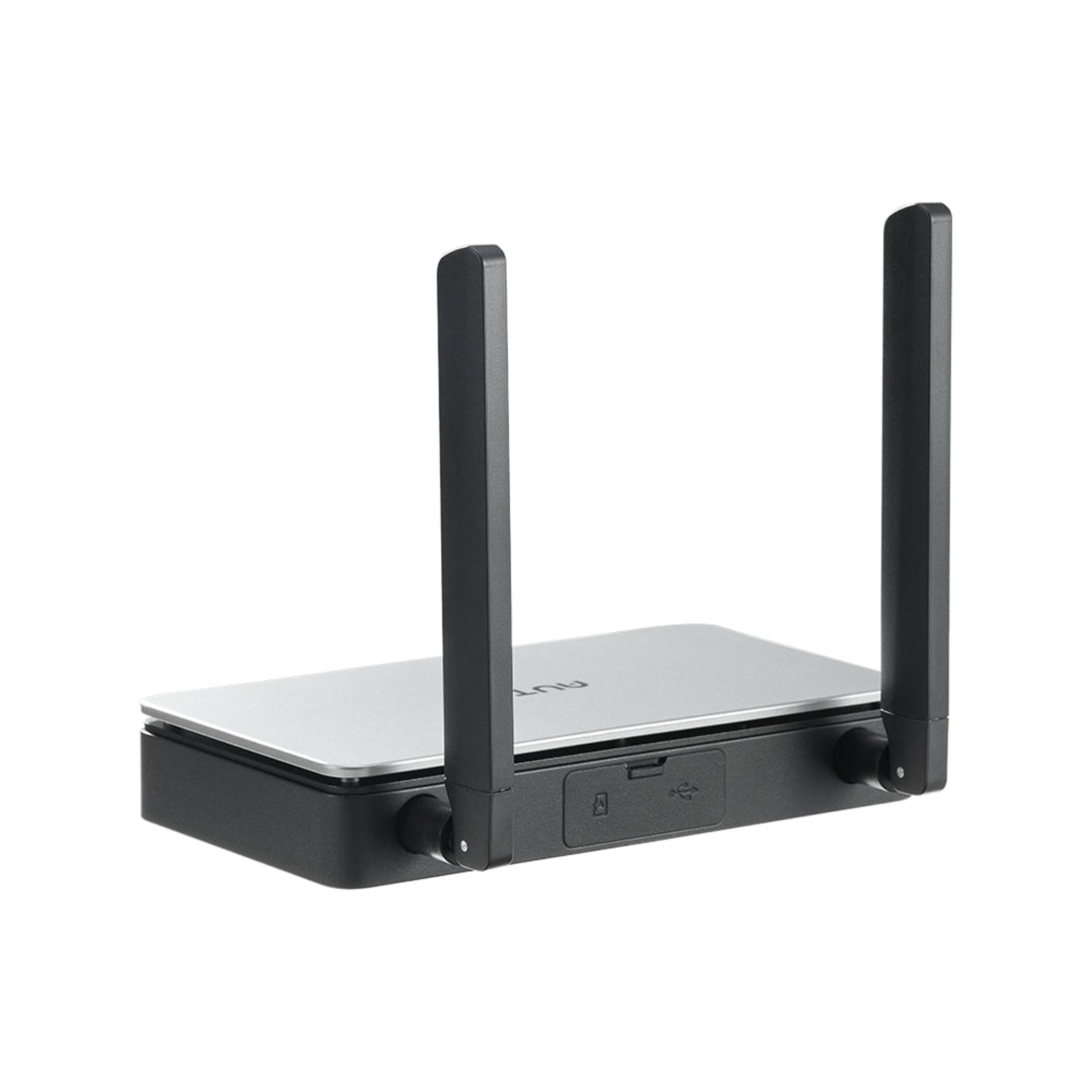

Autel Robotics Live Deck 2
Sold out
The Autel Robotics Live Deck 2 is a second-generation real-time video receiving system for the Autel EVO II V3 lineup. It pulls the live feed straight from a compatible EVO II V3 aircraft and routes it out over HDMI or Ethernet, including RTMP streaming, so a command post, control room, or broadcast setup can watch the drone's view without relying on internet or cellular service. Built on Autel's SkyLink 2.0 transmission system, it receives video from up to 12 km away, runs up to 5 hours on its internal battery, and carries an IP43 rating for field use.
Real-time drone video to HDMI, Ethernet, and RTMP for the Autel EVO II V3 series. Up to 12 km range, 5-hour battery, no internet required.
Features
- Receives the live video feed directly from a compatible Autel EVO II V3 aircraft and routes it to external displays and networks
- HDMI and Ethernet outputs, including RTMP streaming, for command centers, control rooms, live broadcast, and multi-viewer setups
- Delivers up to 1080p at 60 fps for smooth, detailed real-time viewing
- Built on Autel's SkyLink 2.0 transmission system, using 2.4/5.8 GHz and 900 MHz bands for a robust link and up to 12 km (7.45 mi) of range in unobstructed conditions
- Shares the feed to multiple endpoints without depending on internet or cellular infrastructure, which is valuable for remote or connectivity-limited operations
- High-capacity 5000 mAh Li-Po battery for up to 5 hours of continuous operation
- IP43-rated housing for dust and water resistance in demanding field environments
Specifications
| Specification | Value |
|---|---|
| Type | Real-time video receiving / transmission system (2nd generation) |
| Compatible aircraft | Autel EVO II V3 series (see compatibility) |
| Transmission system | Autel SkyLink 2.0 |
| Operating frequencies | 2.4 GHz, 5.8 GHz, 900 MHz |
| Max transmission range | Up to 12 km (7.45 mi), unobstructed |
| Video output resolution | Up to 1080p at 60 fps |
| Outputs | HDMI, Ethernet (including RTMP streaming) |
| Battery | 5000 mAh Li-Po |
| Operating time | Up to 5 hours continuous |
| Ingress protection | IP43 |
Compatibility
- Autel EVO II Pro V3
- Autel EVO II Dual 640T V3
- Autel EVO II RTK Series V3
- Autel EVO II Enterprise V3
The Live Deck 2 works only with V3 models. It is not backward compatible with V1 or V2 EVO II aircraft, and it does not support the EVO Max series. Confirm your aircraft is a V3 model before ordering.
Who this is for
- Public-safety agencies feeding a live drone view to an incident command post or emergency operations center
- Broadcast and media teams streaming aerial footage over RTMP
- Inspection and monitoring operations that need a shared live feed on site without cellular or internet coverage
- Any EVO II V3 operator who needs to route the drone feed to external displays or a network
Please note: The Live Deck 2 is compatible with Autel EVO II V3 aircraft only. It is not compatible with V1 or V2 EVO II models or the EVO Max series. The drone, controller, cables, and any displays are sold separately unless otherwise stated. Verify your aircraft model before ordering.
FAQ
Which drones does the Live Deck 2 work with?
The Autel EVO II V3 series: EVO II Pro V3, EVO II Dual 640T V3, EVO II RTK Series V3, and EVO II Enterprise V3. It does not work with V1 or V2 EVO II aircraft or with the EVO Max series.
How does it output video?
Over HDMI and Ethernet, including RTMP streaming. That lets you send the live feed to a monitor, a command center, a network, or a streaming platform, at up to 1080p 60 fps.
Do I need internet or cellular service to use it?
No. The Live Deck 2 receives the feed directly from the aircraft over Autel's SkyLink 2.0 link and can route it to your displays and local network without internet or cellular. RTMP streaming to an online platform would, of course, require a network connection.
How far away can it receive video?
Up to 12 km (7.45 mi) in unobstructed, interference-free conditions, using the SkyLink 2.0 system across the 2.4/5.8 GHz and 900 MHz bands. Real-world range varies with environment and interference.
How long does the battery last?
The built-in 5000 mAh Li-Po battery supports up to 5 hours of continuous operation.
Is it weather resistant?
It carries an IP43 rating for dust and water resistance, suitable for field use. As with any IP rating, avoid heavy or direct water exposure.
