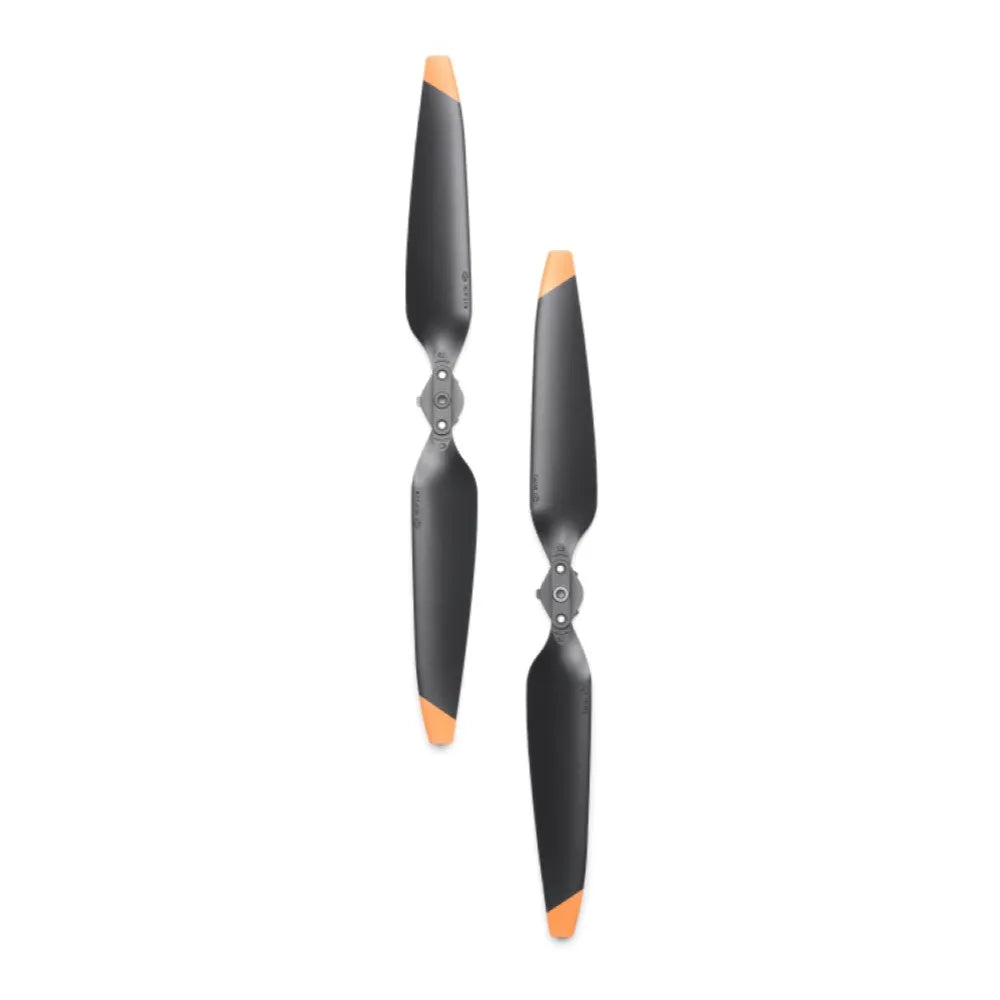

DJI Matrice 4 Series Propeller Pair
The DJI 1157F Propeller Pair is the standard, factory-spec folding propeller for the DJI Matrice 4 Series (M4T and M4E). Each pair contains one clockwise (CW) and one counter-clockwise (CCW) blade in the 10.8 in size used across the M4 platform. The 1157F is the propeller the Matrice 4 Series ships with and the one its published flight performance is rated against, including the 49-minute flight-time figure and the 35 km maximum flight distance.
Factory-spec folding propellers for the DJI Matrice 4T and 4E. One CW, one CCW per pair.
Features
- Genuine DJI replacement propellers (model 1157F), the standard propeller for the Matrice 4T and Matrice 4E
- Dynamically balanced blades tuned for the M4 motors and rated for the airframe's full published flight envelope
- Foldable form factor that collapses for transport and locks rigid in operation, matching the M4 Series' compact case-pack workflow
- Each pair contains one clockwise (CW) and one counter-clockwise (CCW) blade, the configuration required to replace a matched rotor pair on the M4
- The performance baseline for the platform: longer flight time and range than the 1154F low-noise option, and the propeller the aircraft's published specs are measured against
Specifications
| Specification | Value |
|---|---|
| Compatible aircraft | DJI Matrice 4T, Matrice 4E |
| Propeller model | 1157F (Standard) |
| Quiet alternative | 1154F Low-Noise (sold separately) |
| Propeller size | 10.8 in |
| Rotation pair | 1 × clockwise (CW), 1 × counter-clockwise (CCW) |
| Aircraft takeoff weight (with standard propellers) | 1,219 g |
| Aircraft max takeoff weight (with standard propellers) | 1,420 g |
| Max flight time | 49 min |
| Max hover time | 42 min |
| Max flight distance | 35 km |
| Aircraft max altitude | 6,000 m |
| Aircraft operating temperature | 14 °F to 104 °F (–10 °C to 40 °C) |
| UPC | 190021119406 |
| EAN | 6941565994301 |
Who this is for
- Matrice 4T and M4E operators replacing a chipped, cracked, or end-of-life propeller pair as part of routine preflight or post-flight maintenance
- Fleet operators standardizing on factory-spec propellers across multiple M4 airframes
- Public safety, inspection, mapping, and utility crews who want spare props on hand so a single blade strike does not ground the aircraft
- Operators who want the platform's full published endurance and range, where noise is not the limiting factor for the mission
What's included
- 1 × Clockwise (CW) 1157F propeller
- 1 × Counter-clockwise (CCW) 1157F propeller
Installation and care
- Inspect propellers before every flight. Replace any blade that is chipped, cracked, warped, or shows visible damage. A damaged propeller is one of the most common preventable causes of in-flight failure on a multirotor.
- The 1157F is built for the Matrice 4 Series. Do not install it on any other DJI airframe.
- Do not mix 1157F (standard) and 1154F (low-noise) propellers on the same aircraft. Install a matched set of the same model on every rotor position; mixing pitch and profile produces asymmetric thrust and unpredictable handling.
- Install propellers per the procedure in the DJI Matrice 4 Series user manual, and verify the manufacturer-supplied mounting hardware is fully seated before flight.
- After installation, perform a hover check and confirm there is no vibration or unusual acoustic signature before committing to the mission.
- Select the correct propeller profile in the DJI Pilot 2 settings if your firmware exposes that option. The aircraft uses propeller type to inform performance limits and battery-time estimates.
Please note: The Matrice 4 Series uses multiple propeller pairs to make a complete set. This listing is a single pair (1 × CW, 1 × CCW) and is intended as a replacement or spare. Refer to the DJI Matrice 4 Series user manual for the full propeller count and the correct CW / CCW placement on the airframe. The aircraft is sold separately.
Note on the Matrice 4D Series: DJI sells a different propeller for the Matrice 4D / 4TD dock-based aircraft. That part is not interchangeable with this one. Confirm your aircraft model before ordering.
Under FAA Part 107, a remote pilot in command is responsible for ensuring the aircraft is in a condition for safe operation before each flight (14 CFR 107.49). A current set of undamaged, factory-spec propellers is part of that preflight determination. Inspect, document, and replace propellers on the schedule appropriate to your operation.
FAQ
What is the difference between the 1157F and the 1154F low-noise propeller?
The 1157F is the standard propeller that ships with the Matrice 4 Series and is optimized for the platform's full published flight envelope: 49 minutes maximum flight time, 42 minutes maximum hover, and 35 km maximum flight distance. The 1154F is a quieter alternative tuned to lower the aircraft's acoustic signature. Switching to the low-noise propeller reduces flight time to 46 min, hover to 39 min, and range to 32 km. Use the 1157F when endurance and range matter; use the 1154F when discretion and noise control are the priority.
Are these compatible with both the Matrice 4T and the Matrice 4E?
Yes. The 1157F is the standard propeller for both aircraft in the Matrice 4 Series. It is not compatible with any other DJI Matrice model (M30 Series, M300 RTK, M350 RTK, M3D / 3TD, M400), which use different propellers with different geometry and balance.
Is this compatible with the Matrice 4D or Matrice 4TD?
No. The Matrice 4D Series uses a different propeller part developed for the dock-based variant of the aircraft. The 1157F sold here is for the standard Matrice 4T and Matrice 4E. Confirm your aircraft model before ordering.
Can I mix standard and low-noise propellers on the same aircraft?
No. The 1157F and 1154F have different aerodynamic profiles and produce different thrust at the same RPM. Mixing them on a single airframe creates asymmetric lift and unpredictable handling, and the flight controller is not tuned for the mixed configuration. Always install a matched set of the same model on every rotor position.
How many propellers does a full Matrice 4 Series set require?
The Matrice 4 Series uses multiple propeller pairs to make a full set, with each motor location requiring a specific CW or CCW blade. Refer to the DJI Matrice 4 Series user manual for the total count and the correct placement of each rotation. This listing is a single pair (1 × CW, 1 × CCW) and is intended for replacement or spares.
When should I replace a propeller?
Replace any propeller that shows visible damage during preflight inspection, including chips, cracks, gouges, warping, or material delamination. Replace immediately after any prop strike or hard landing, even if no damage is visible. Many operators also replace propellers on a fixed flight-hour or cycle interval as part of a documented maintenance program; check the DJI Matrice 4 Series user manual and your own SOP for the interval that fits your operation.
What happens if I install the CW and CCW props in the wrong positions?
The aircraft will not be able to maintain stable flight; the flight controller will detect imbalanced torque almost immediately and either refuse takeoff or attempt an emergency response. Always confirm CW and CCW placement against the DJI Matrice 4 Series user manual before each flight.
Can these propellers be repaired?
No. Composite propellers should not be field-repaired with adhesives or fillers. A damaged blade has compromised structural integrity and unpredictable balance, both of which create real risk in flight. Replace damaged propellers; do not repair them.
Will the aircraft know which propeller I've installed?
The Matrice 4 Series tracks propeller type for performance estimation. After swapping propellers, verify the propeller selection in DJI Pilot 2 matches the hardware actually installed so the aircraft's flight-time estimates and performance envelope are accurate.
