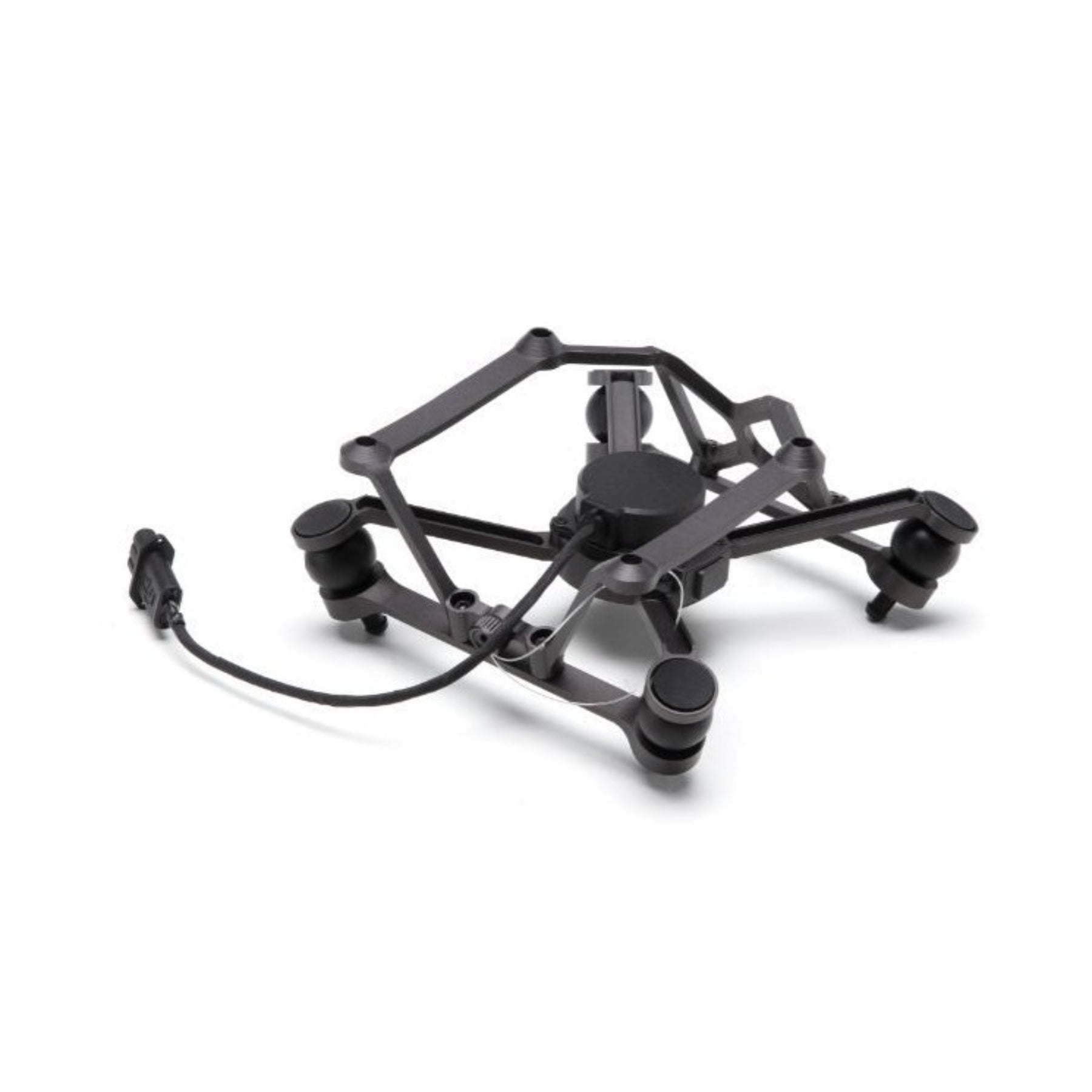

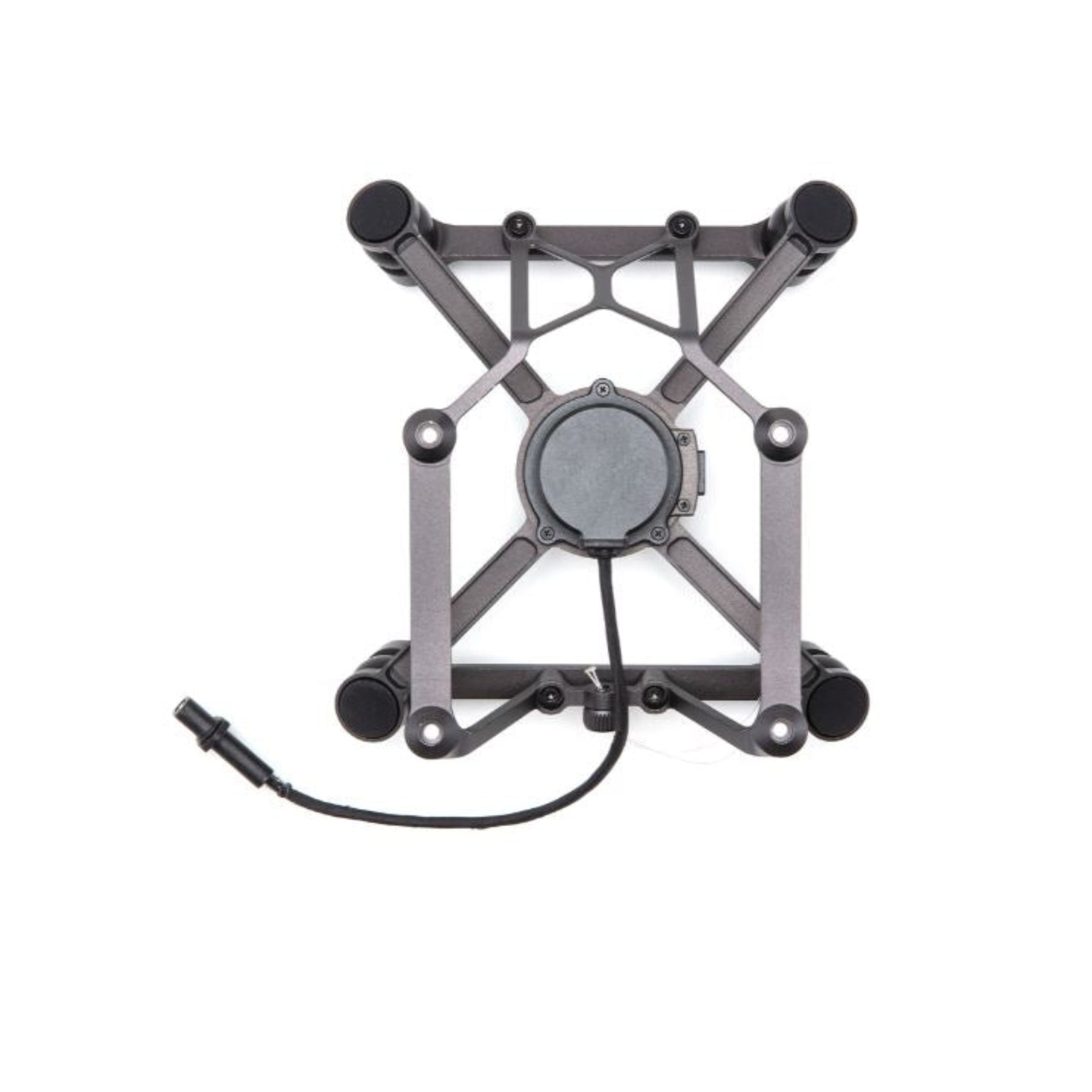

DJI Matrice 300 Series Upward Gimbal Connector
Sold out
The DJI Matrice 300 Series Upward Gimbal Connector enables top-mount payload integration on M300 RTK and M350 RTK drones, expanding your aerial imaging capabilities for inspection, surveying, and mapping missions that require an upward-facing camera perspective.
Unlock full 360° coverage — mount a payload above as well as below for complete situational awareness.
Features
- Designed for the DJI Matrice 300 RTK and Matrice 350 RTK to enable upward-facing gimbal and payload attachment
- Secure mechanical connection with reliable data and power passthrough to compatible DJI payloads
- Expands the M300 RTK and M350 RTK to support simultaneous multi-payload configurations (up to three payloads)
- Compatible with DJI's Skyport V2 interface for quick-release mounting and secure locking
- Lightweight construction minimises impact on flight time and payload capacity
- Purpose-built for bridge inspection, power line survey, and overhead structure analysis workflows
Specifications
| Compatible aircraft | DJI Matrice 300 RTK, DJI Matrice 350 RTK |
| Mount position | Upward (top-mount) |
| Interface type | DJI Skyport V2 |
| Payload compatibility | DJI Zenmuse series (Skyport V2 compatible) |
| Max supported payload weight | Up to 2.7 kg (combined all payloads) |
| Part number | CP.EN.00000327.01 |
What's included
- 1 × Upward Gimbal Connector
- 1 × Mounting hardware set
FAQ
Which DJI aircraft is this connector compatible with?
This connector is compatible with the DJI Matrice 300 RTK and DJI Matrice 350 RTK. It is not compatible with other Matrice series aircraft such as the M200 or M210.
Which payloads can be mounted using this connector?
Any DJI payload with a Skyport V2 interface is compatible, including the Zenmuse H20, H20T, H20N, P1, L1, and Z30. Third-party payloads using the DJI Payload SDK and Skyport V2 interface may also be compatible — check with your payload manufacturer.
Can I use this connector at the same time as a downward gimbal?
Yes. The M300 RTK supports up to three simultaneous payloads — one upward and up to two downward — when using the appropriate connectors. Ensure total payload weight remains within aircraft limits.
Does fitting this connector affect flight time?
Adding a payload via the upward connector will affect flight time depending on the weight of the attached payload. Always calculate expected flight time using DJI's flight planning tools with your specific payload configuration.
Is installation of this connector something I can do myself?
The connector is designed for user installation and attaches to the top of the M300 RTK airframe. Refer to the DJI Matrice 300 RTK user manual for step-by-step installation guidance, or contact us if you need assistance.
