Colorado Drone Chargers DJI Matrice 4 Series Portable Rapid Charging System

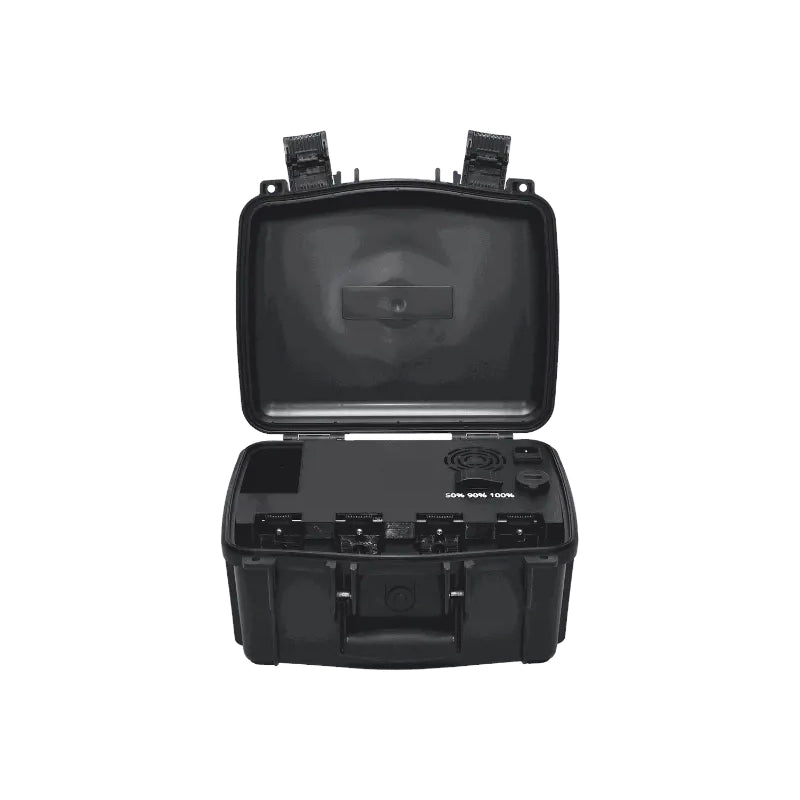

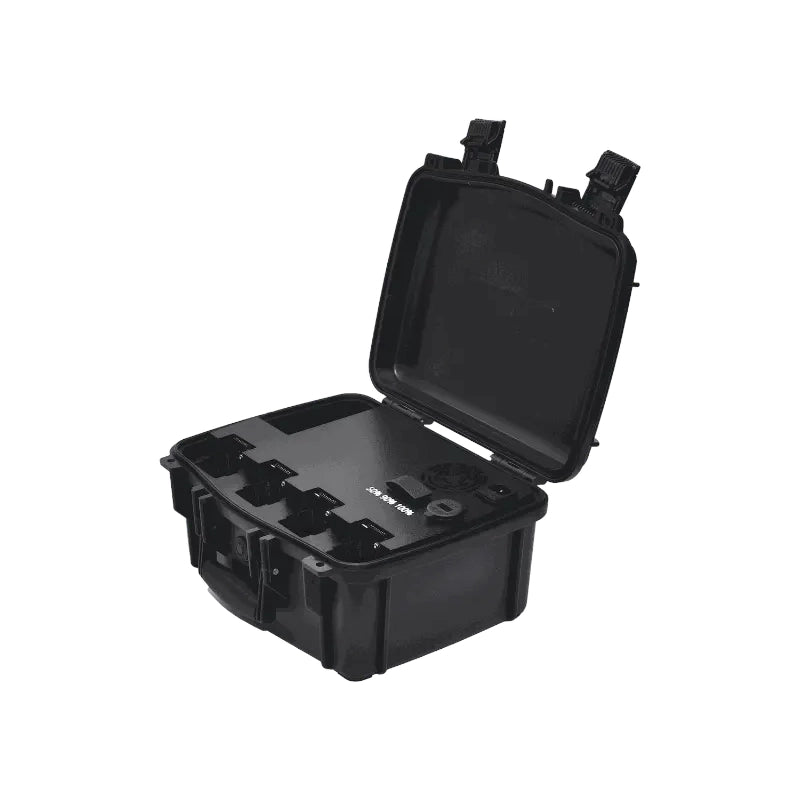

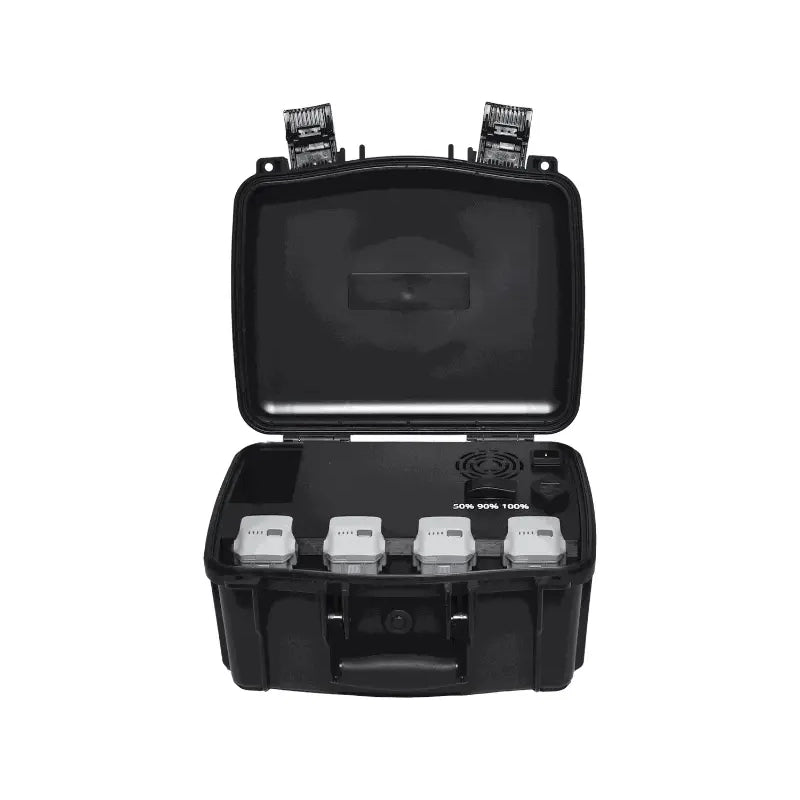

The Colorado Drone Chargers Matrice 4 Series PRCS (Portable Rapid Charging System) is a four-bay field charging case for DJI Matrice 4T and 4E Intelligent Flight Batteries. It charges four packs and two USB accessories at the same time, taking roughly 60 minutes to bring a battery from 20% to 90%, so a single case can keep a Matrice 4 Series aircraft in the air through long inspection, mapping, and public safety days. Three charging modes (50%, 90%, or 100%) let you tailor each cycle to the mission, and the whole system lives inside an impact-resistant, watertight, dust-proof hard case ready to roll straight from the truck to the flight line.
Four Matrice 4T/4E batteries plus two USB devices, ~60 minutes from 20% to 90%, off any pure or modified sine wave inverter or generator.
Features
- Charges four DJI Matrice 4T and 4E Intelligent Flight Batteries simultaneously
- Two USB outputs (1 × USB-A, 1 × USB-C) for accessories such as controllers, tablets, and phones
- Three charging modes: 50%, 90%, or 100% so you can tailor each cycle to storage, quick-turn, or full top-off
- Approximately 60 minutes per battery from 20% to 90% state of charge
- Runs from grid power, pure sine wave, and modified sine wave inverters and generators for true field deployment
- 100% duty cycle: run cycle after cycle without forced cooldowns
- Multi-fan cooling with voltage and temperature management for safe rapid charging
- Impact-resistant, watertight, and dust-proof hard case with easy-open pressure release valve
- Auto-switching universal input (88 to 264 VAC, 47 to 63 Hz) for use in the US and abroad
- Backed by Colorado Drone Chargers' lifetime warranty, with free shipping in the contiguous U.S. and a 30-day money-back guarantee
Specifications
| Charging bays | 4 × DJI Matrice 4T/4E battery bays |
| USB outputs | 1 × USB-A, 1 × USB-C |
| Charging modes | 50%, 90%, 100% |
| Charge time | ~60 minutes (20% to 90%) |
| Duty cycle | 100% |
| Input voltage | 88 to 264 VAC, auto-switching |
| Input frequency | 47 to 63 Hz |
| Max power rating | 500 W |
| Output voltage | 17 VDC |
| Cooling | Multi-fan, with voltage and temperature management |
| External dimensions | 14 × 12 × 6.9 in |
| Weight (without batteries) | 10.1 lb |
| Case | Impact-resistant, watertight, dust-proof, with pressure release valve |
| Warranty | Lifetime, from Colorado Drone Chargers |
Compatibility
- DJI Matrice 4T and Matrice 4E Series aircraft
- DJI Intelligent Flight Batteries for the Matrice 4T Series
- Not compatible with Matrice 4TD (dock version) batteries
What's included
- 1 × Colorado Drone Chargers Matrice 4 Series PRCS in hard case
- AC power cable
Please note: Matrice 4T/4E batteries are not included with the charger.
FAQ
How much faster is this than charging one battery at a time?
The PRCS charges four Matrice 4T/4E packs in parallel at roughly 60 minutes from 20% to 90%. A single-bay charger handles one battery in a similar window, so the PRCS effectively quadruples your throughput per cycle and keeps the aircraft flying while spent packs cycle back to ready.
What do the three charging modes do?
You can select 50%, 90%, or 100% per cycle. 50% is useful for safe long-term storage, 90% is the manufacturer-recommended target for everyday flight readiness on Intelligent Flight Batteries, and 100% is available when you need maximum endurance for a single mission.
Can I run it off a generator or inverter in the field?
Yes. The PRCS accepts both pure sine wave and modified sine wave power sources, so it works with a wide range of portable generators and inverters. At 500 W max, plan on a power source rated comfortably above that to allow for inrush and headroom. Colorado Drone Chargers publishes inverter and generator sizing guidance on their site.
Will it work outside the United States?
Yes. The input is auto-switching from 88 to 264 VAC, 47 to 63 Hz, so the same unit runs on US, EU, UK, and most other grid standards with the appropriate AC cord.
What is the 100% duty cycle rating?
It means the charger is designed to run continuously, cycle after cycle, without a required cooldown between sessions. Combined with the multi-fan cooling and temperature management, that is what makes it suitable for long inspection, mapping, or public safety days.
Is this compatible with the Matrice 4TD dock version?
No. The Matrice 4TD dock version uses different batteries and is not supported by this charger. The PRCS is built for the Matrice 4T and 4E Intelligent Flight Batteries used with the standard aircraft.
Are batteries included?
No. The PRCS ships as a charging system only. Matrice 4T/4E Intelligent Flight Batteries are sold separately.
What is the warranty?
The PRCS is backed by Colorado Drone Chargers' lifetime warranty, with free shipping in the contiguous U.S. and a 30-day money-back guarantee.
