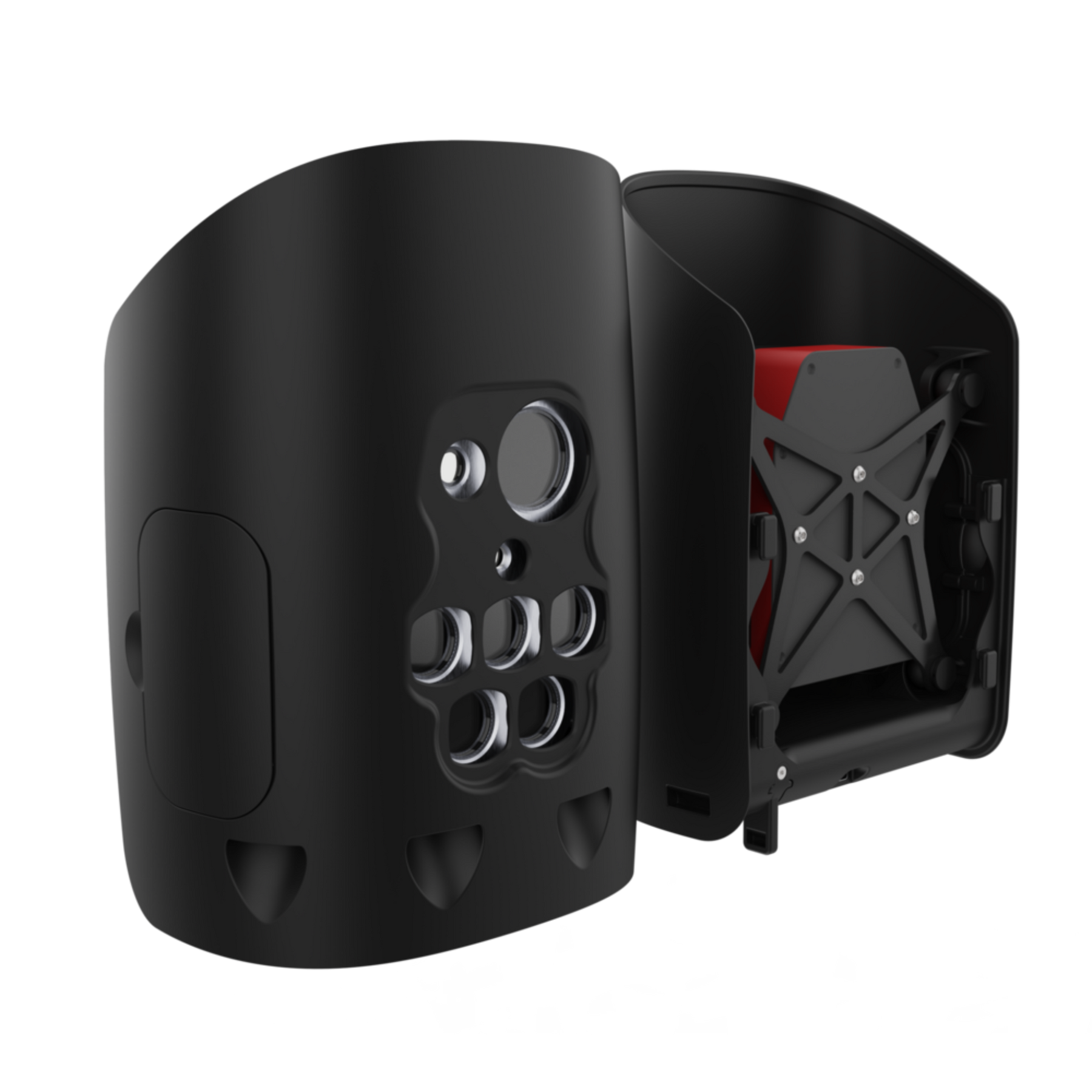

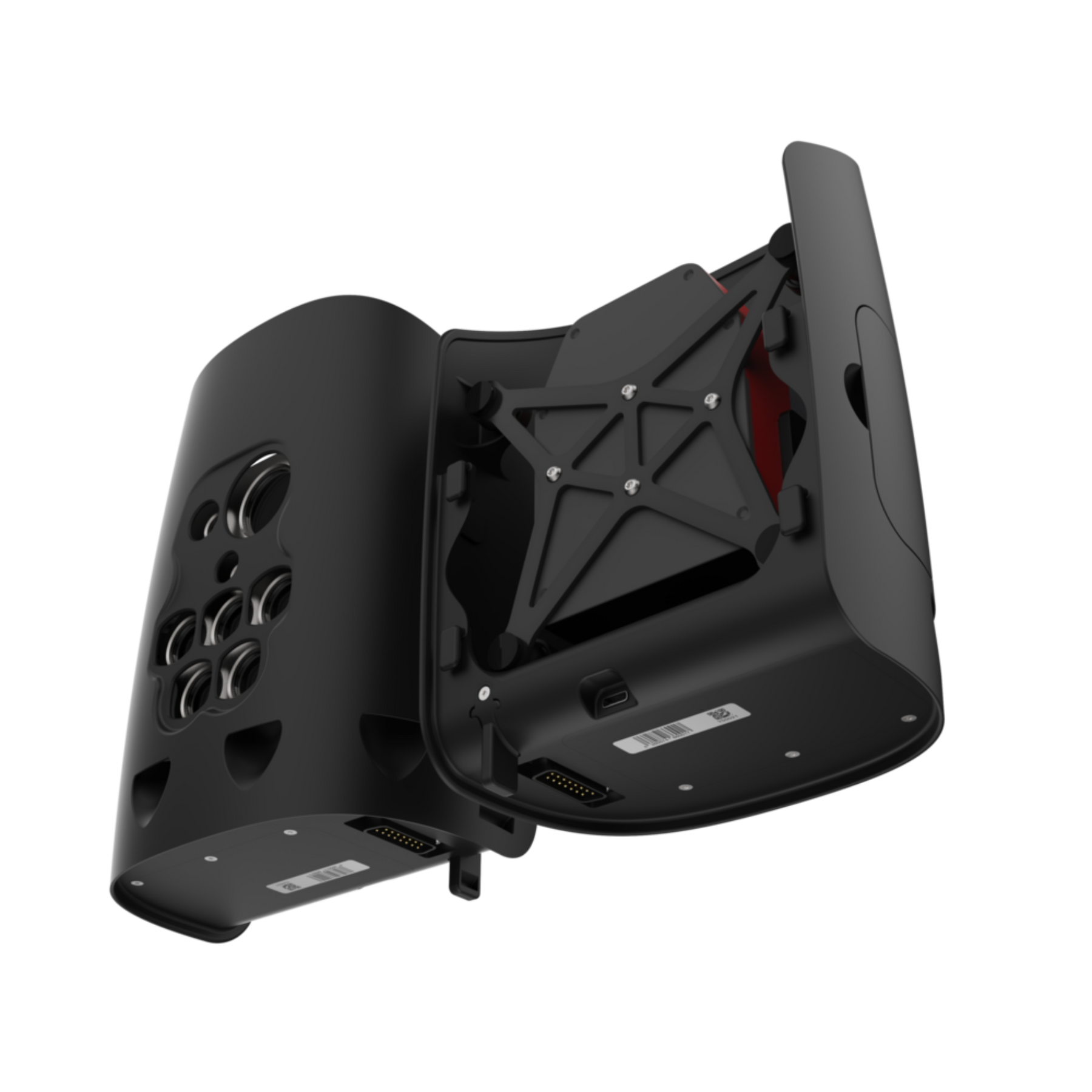

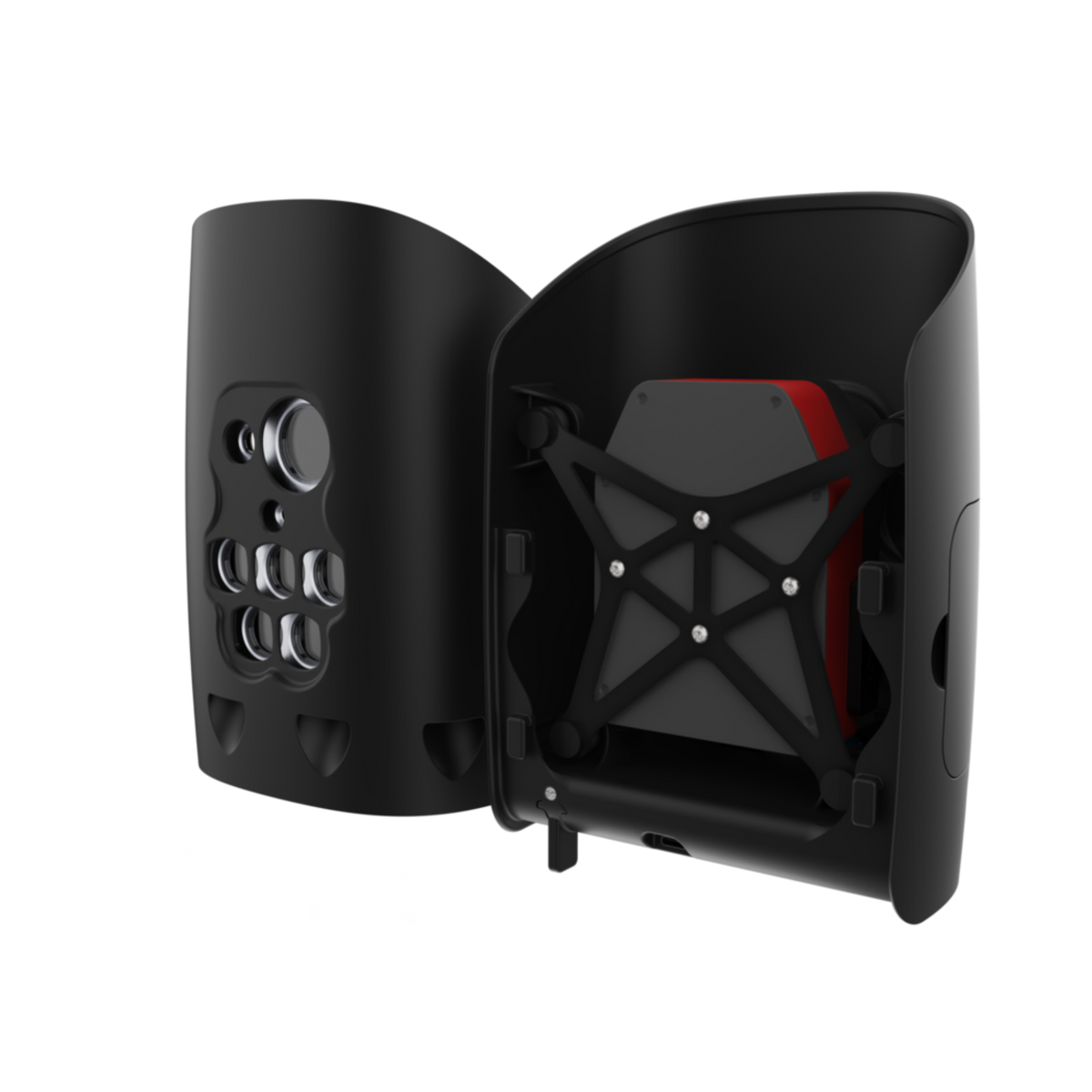

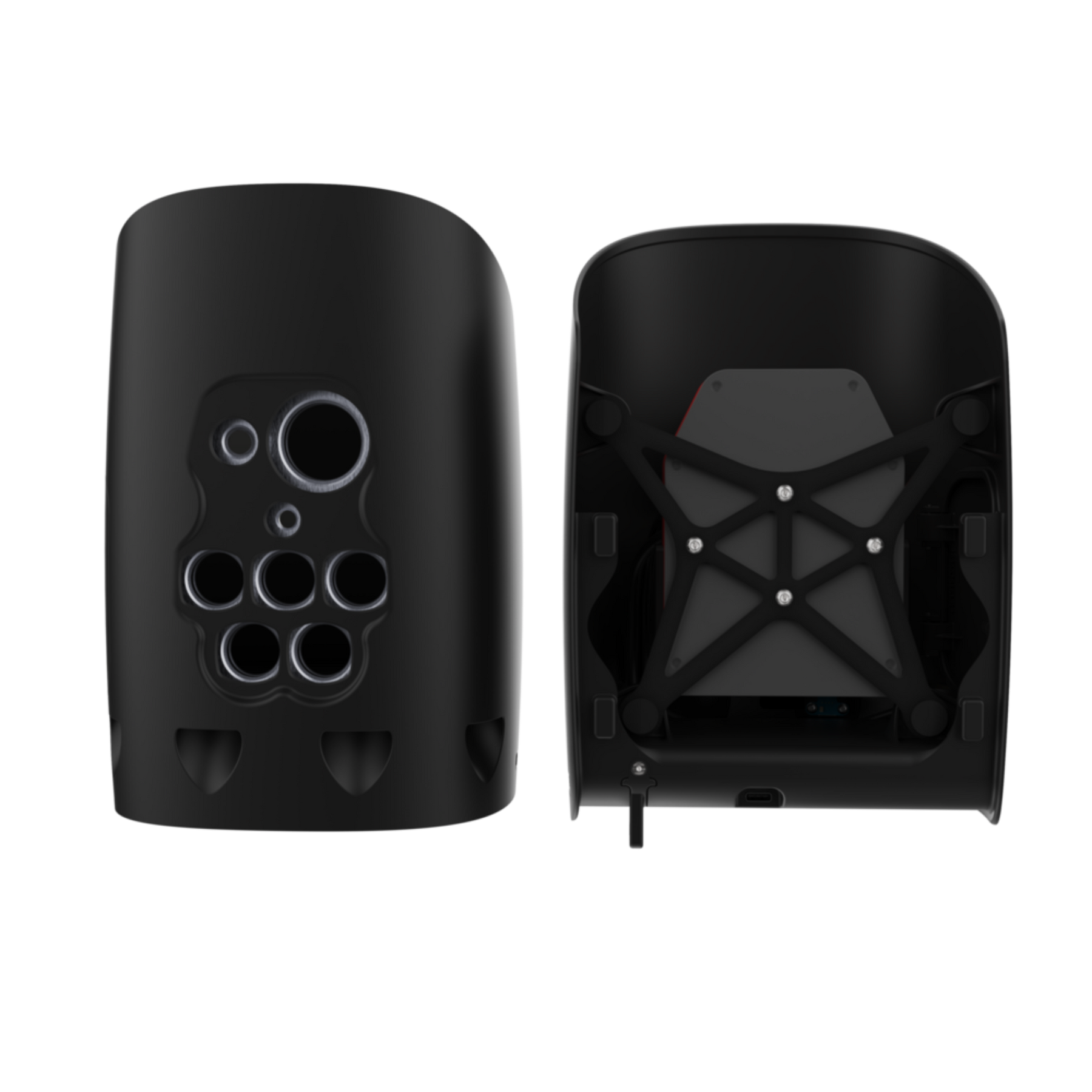

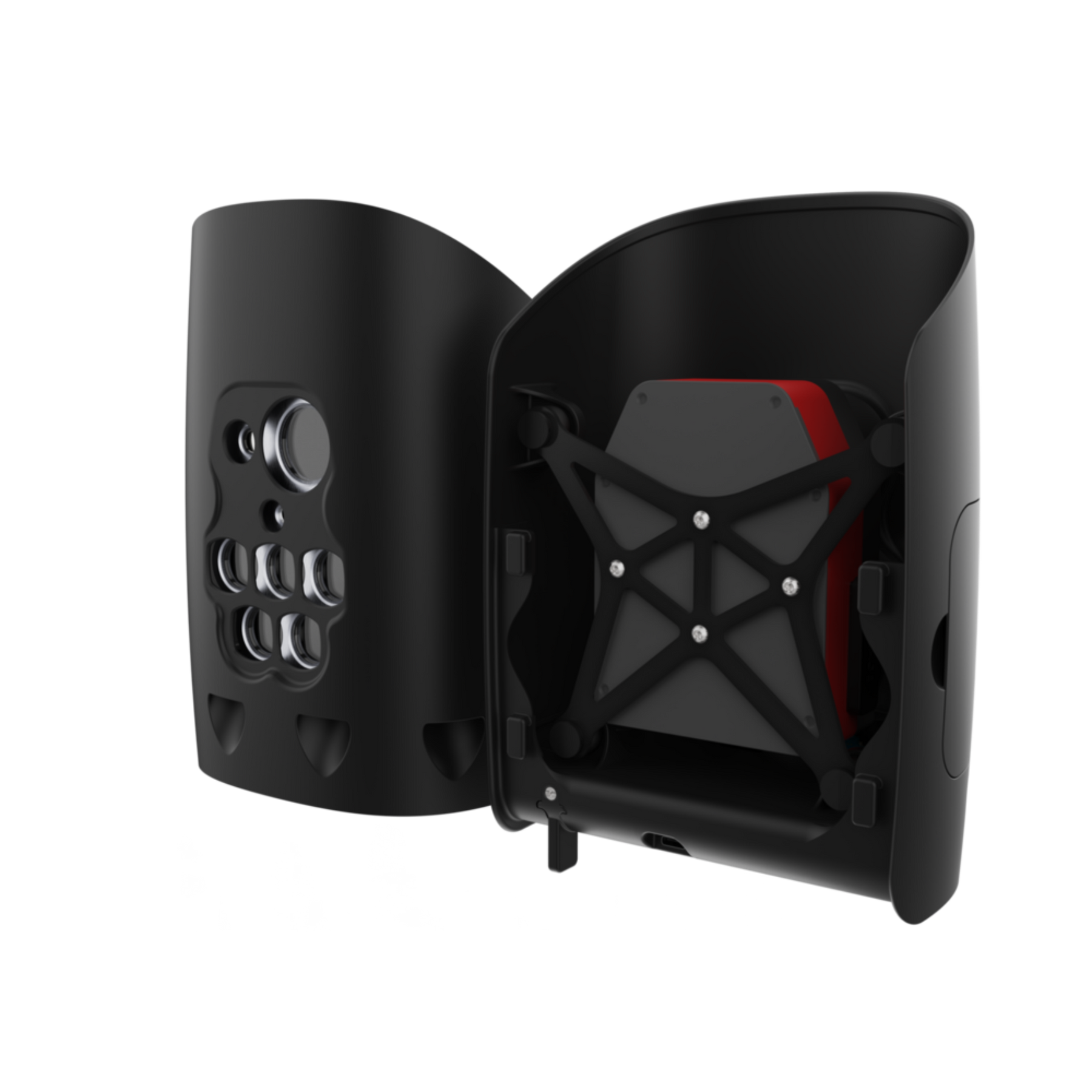

Trinity Pro Altum PT Multispectral Sensor

RGB, Multispectral and Thermal Camera

The Altum-PT is the best-in-class multispectral camera with synchronized thermal images applicable for production agriculture, phenotyping, and environmental monitoring. It captures synchronized multispectral, thermal, and panchromatic data for pixel-aligned outputs at incredibly high resolutions for advanced vegetation research applications. These comprise plant health monitoring from early emergence and on, with thermal for water stress and irrigation system monitoring as well.

• Sensor resolution: 2064 x 1544 (3.2MP per MS band), 4112 x 3008 (12MP per PAN band) 320 × 256 thermal infrared
• Spectral Bands: Blue (475 nm center, 32 nm bandwidth), Green (560 nm center, 27 nm bandwidth),Red (668 nm center, 14 nm bandwidth), Red Edge (717 nm center, 12 nm bandwidth), NIR 842 nm center, 57 nm bandwidth)
• RGB color output: 12.4 MP (global shutter, aligned with all bands)
• Thermal: FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated
• Multispectral GSD: 5.28 cm per pixel at 120 m (per multispectral band)
• Thermal GSD: 33.5 cm per pixel at 120 m
• Panchromatic GSD: 2.49 cm per pixel at 120 m
• Trigger interval: 1.0 seconds
• Interfaces: 3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet.
• Field of view: 50° HFOV x 38° VFOV (multispectral) 46° HFOV x 35° VFOV (panchromatic) 48° x 39° (thermal)
• Storage: CFexpress Card
• Payload weight (ready to fly): 733.7 g
• Dimensions: 11.0 x 8.0 x 6.9 cm (4.3 in x 3.1 in x 2.7 in)
• External power: 7.0 V – 25.2 V
• Power input: 5.5/7.0/10W (standby, average, peak)
• Flight time: 60 minutes
