DJI

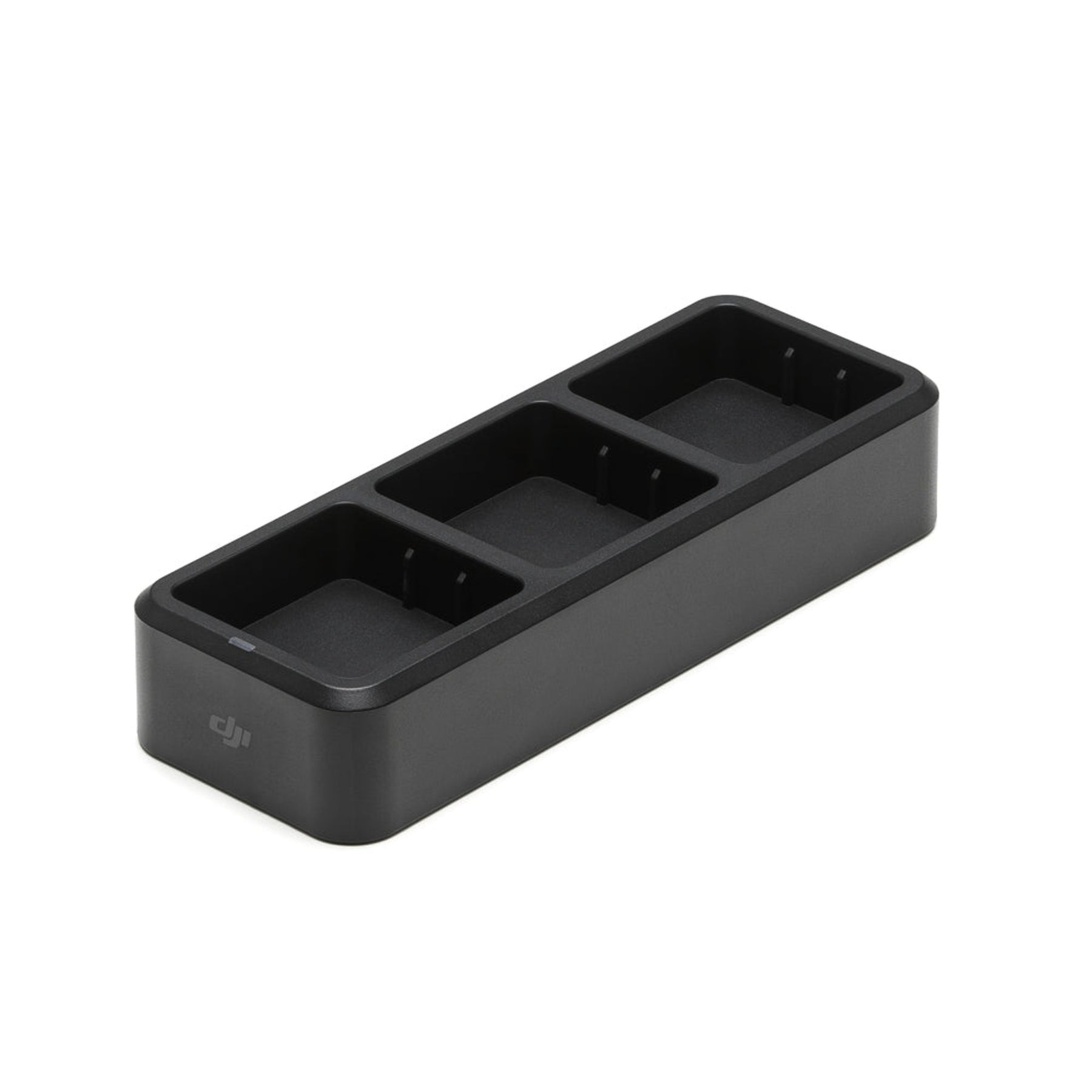

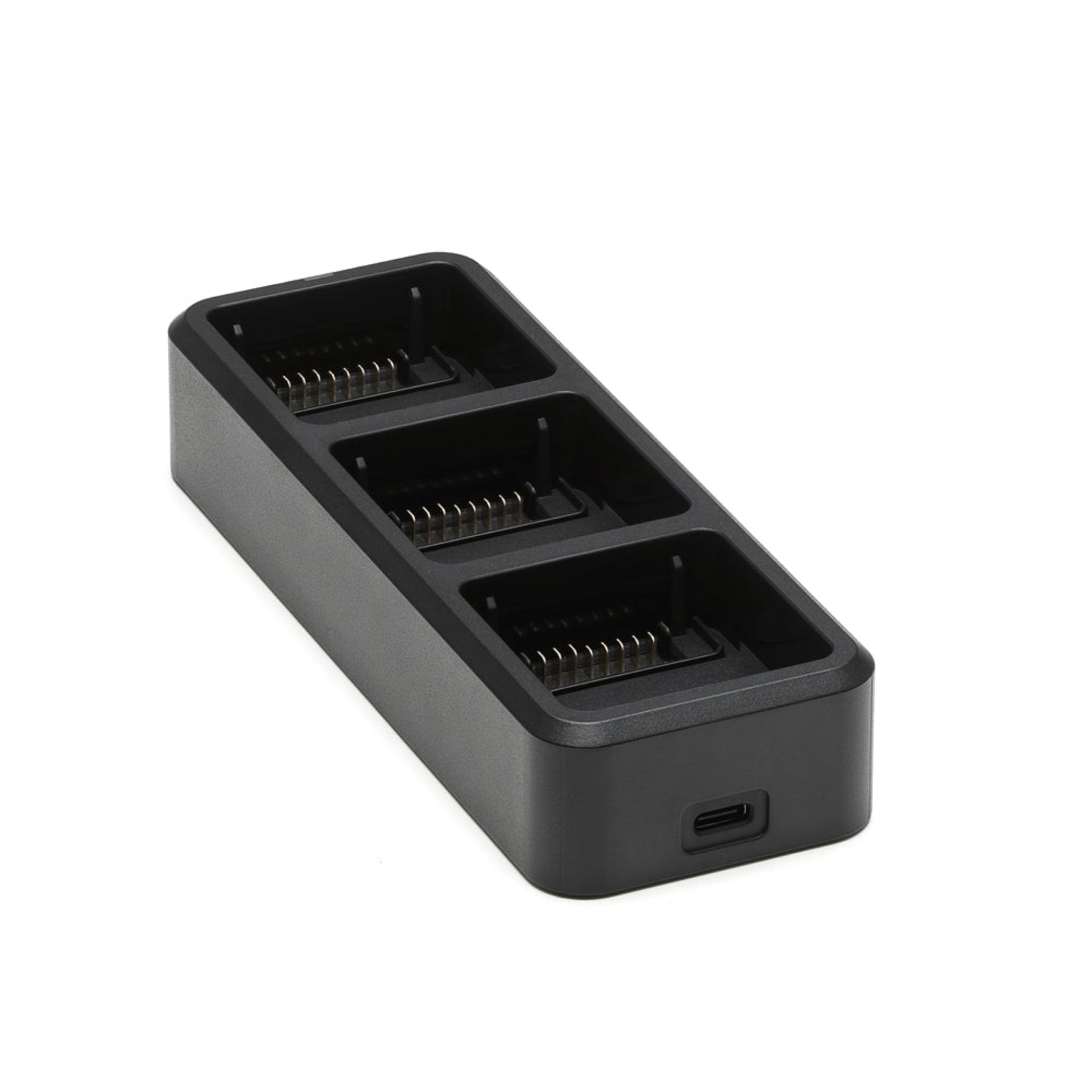

DJI Mavic 3 Battery Charging Hub (100W)
The DJI Mavic 3 Battery Charging Hub (100W) is the three-bay charging dock for the DJI Mavic 3 Enterprise Series Intelligent Flight Battery, used with the Mavic 3E, Mavic 3T, and Mavic 3M. Connect it to a 100 W USB-C power source and the hub charges up to three batteries back-to-back from highest state of charge to lowest, getting the most-ready pack online first. With the DJI 100W USB-C Power Adapter, a fully depleted Mavic 3 Enterprise battery reaches a full charge in approximately 1 hour and 10 minutes.
Three-bay sequential charging hub for the DJI Mavic 3 Enterprise Series flight battery. ~1 hr 10 min per battery with the DJI 100W USB-C Power Adapter.
Features
- Charges up to three DJI Mavic 3 Enterprise Series flight batteries from a single USB-C power source, in sequence from highest state of charge to lowest
- Sized for 100 W charging input: the DJI 100W USB-C Power Adapter delivers the full per-battery time of approximately 1 hour and 10 minutes
- Also works with the DJI 65W Portable Charger and the DJI 65W Car Charger, at a slightly longer per-battery time of approximately 1 hour and 36 minutes
- Compatible with any FCC-certified USB-C Power Delivery source within the 5-20 V / 5 A input window, so the hub can run off a portable power station, vehicle inverter, or laptop-class USB-C PD wall charger in the field
- Compact and light at 150 × 55 × 28 mm and approximately 116 g, easy to add to a case or daypack without changing how the kit travels
- Sequential charging means no high-wattage power supply per bay: one 100 W input handles all three batteries in turn rather than requiring three separate chargers
Specifications
| Specification | Value |
|---|---|
| DJI part number | CP.EN.00000422.01 |
| Compatible battery | DJI Mavic 3 Enterprise Series Intelligent Flight Battery |
| Bays | 3 |
| Charging behavior | Sequential, highest state of charge to lowest |
| Input | 5-20 V, max 5 A (USB-C) |
| Recommended power source | DJI 100W USB-C Power Adapter |
| Also compatible with | DJI 65W Portable Charger, DJI 65W Car Charger |
| Charging time per battery (100W adapter) | Approximately 1 hr 10 min |
| Charging time per battery (65W charger) | Approximately 1 hr 36 min |
| Dimensions | 150 × 55 × 28 mm (L × W × H) |
| Weight | Approximately 116 g |
| Operating temperature | 5 °C to 40 °C (41 °F to 104 °F) |
Compatibility
The hub is built specifically for the DJI Mavic 3 Enterprise Series Intelligent Flight Battery, which powers:
- DJI Mavic 3E (Mavic 3 Enterprise)
- DJI Mavic 3T (Mavic 3 Thermal)
- DJI Mavic 3M (Mavic 3 Multispectral)
It is not compatible with the consumer Mavic 3 / Mavic 3 Classic / Mavic 3 Pro / Mavic 3 Cine, which use a different intelligent flight battery and a different (65 W) charging hub.
Who this is for
- Mavic 3E, M3T, and M3M operators running multi-battery rotations through a day of inspection, mapping, public-safety, or DFR work
- Fleet operators standardizing on a single charging solution per Mavic 3 Enterprise airframe
- Field crews who want one USB-C PD source (wall charger, portable power station, or vehicle inverter) to handle three batteries rather than three separate chargers
- Public-safety and DFR programs where charge-cycle time between flights directly affects mission readiness
What's included
- 1 × DJI Mavic 3 Battery Charging Hub (100W)
Please note: The hub does not include a USB-C power adapter or cable, and Mavic 3 Enterprise Series flight batteries are sold separately. For published per-battery charging time, use the DJI 100W USB-C Power Adapter. The DJI 65W Portable Charger and 65W Car Charger also work but extend each battery's charge to approximately 1 hour and 36 minutes. The hub charges sequentially, not in parallel: total time for three batteries is roughly three times the per-battery figure.
FAQ
Which aircraft does this charging hub support?
The DJI Mavic 3 Enterprise Series: Mavic 3E, Mavic 3T, and Mavic 3M. The hub charges the Enterprise-series flight battery used across all three aircraft. It is not compatible with the consumer Mavic 3, Mavic 3 Classic, Mavic 3 Pro, or Mavic 3 Cine, which use a different flight battery and a different (65 W) charging hub.
How many batteries does it charge?
Three Mavic 3 Enterprise Series flight batteries per hub. It charges them in sequence based on state of charge, starting with the pack that has the highest charge and finishing with the lowest. The most-ready battery is online first, so the operator can keep flying while the rest of the rotation comes up to full.
Does it charge all three at once?
No. The hub charges sequentially, which is what allows a single 100 W power source to handle three bays. Plan for total charge time of approximately three times the per-battery figure: roughly 3.5 hours on the DJI 100W USB-C Power Adapter, or about 4 hours 48 minutes on a 65 W charger.
What power source do I need?
For published per-battery charge times, use the DJI 100W USB-C Power Adapter (sold separately). The DJI 65W Portable Charger and DJI 65W Car Charger are also supported but extend each battery's charge to approximately 1 hour and 36 minutes. Any FCC-certified USB-C Power Delivery source within the 5-20 V / 5 A input window will work, though wattage below DJI's recommended sources will extend the charge time accordingly.
Can I use it in a vehicle?
Yes. The hub accepts the DJI 65W Car Charger over USB-C Power Delivery, which is useful for DFR teams, surveying crews, and operators who charge between flights from the vehicle. Any FCC-certified USB-C PD car charger or vehicle inverter that meets the hub's input window will work, though only the DJI car charger is specifically tested and rated by DJI.
Will it charge the consumer Mavic 3 battery?
No. The consumer Mavic 3 / Mavic 3 Classic / Mavic 3 Pro / Mavic 3 Cine use a different flight battery, and DJI sells a separate 65 W charging hub for those aircraft. The two batteries are not interchangeable across hubs. If you're flying a consumer Mavic 3, look for the standard DJI Mavic 3 Battery Charging Hub (the 65 W version) instead.
Does the hub balance-charge or storage-charge batteries?
The Mavic 3 Enterprise battery's intelligent firmware manages cell balancing internally during charging, so the hub does not need a separate balance step. For long-term storage, DJI's battery firmware self-discharges packs toward a safe storage level over time; refer to the Mavic 3 Enterprise user manual for the recommended storage protocol.
What's the operating temperature range?
5 °C to 40 °C (41 °F to 104 °F). Outside that range the hub will pause charging until the battery and hub temperatures return to normal. In cold-weather operations, let the batteries and the hub stabilize toward room temperature before connecting them; in hot environments, charge in shade or indoors to avoid thermal pauses extending the charge cycle.
