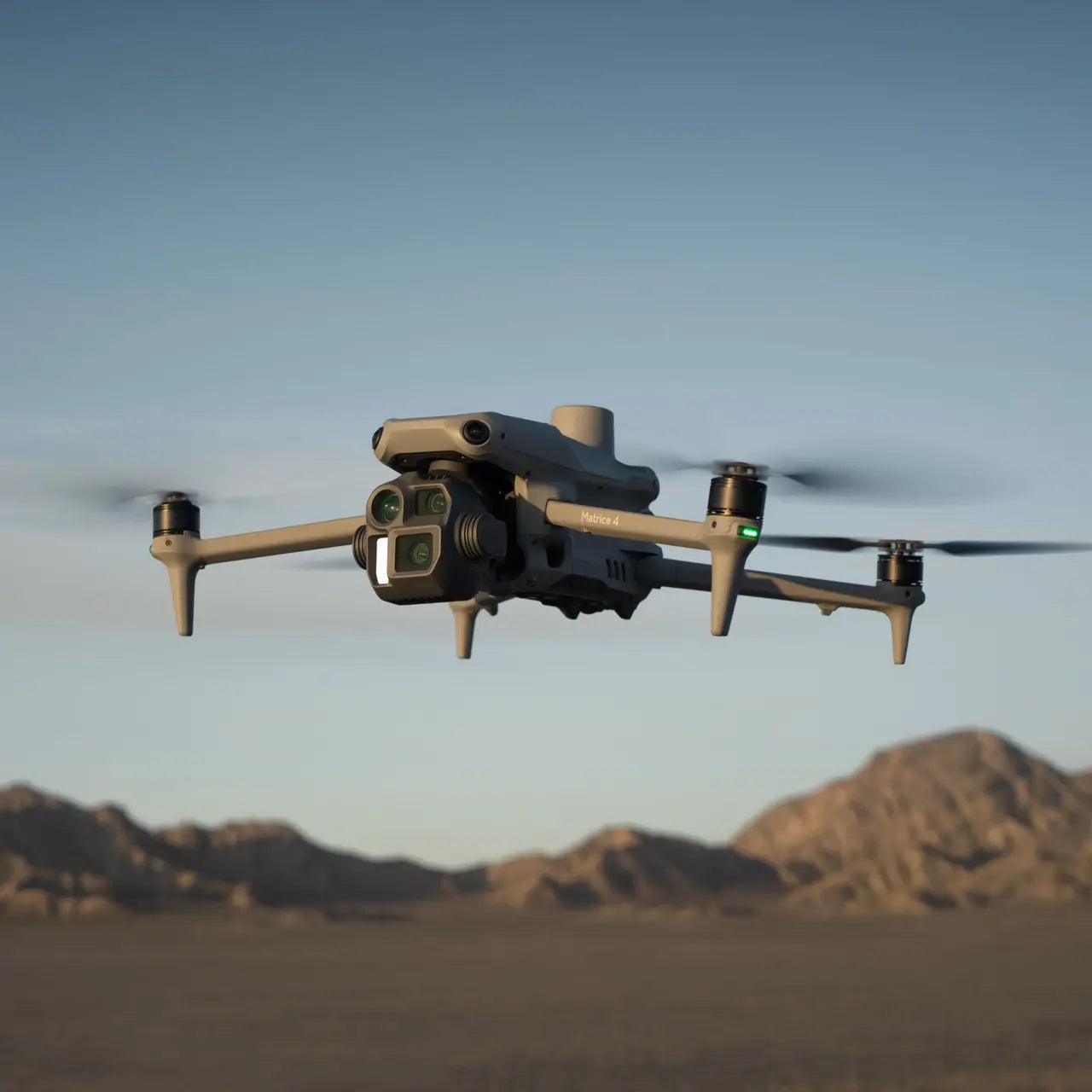

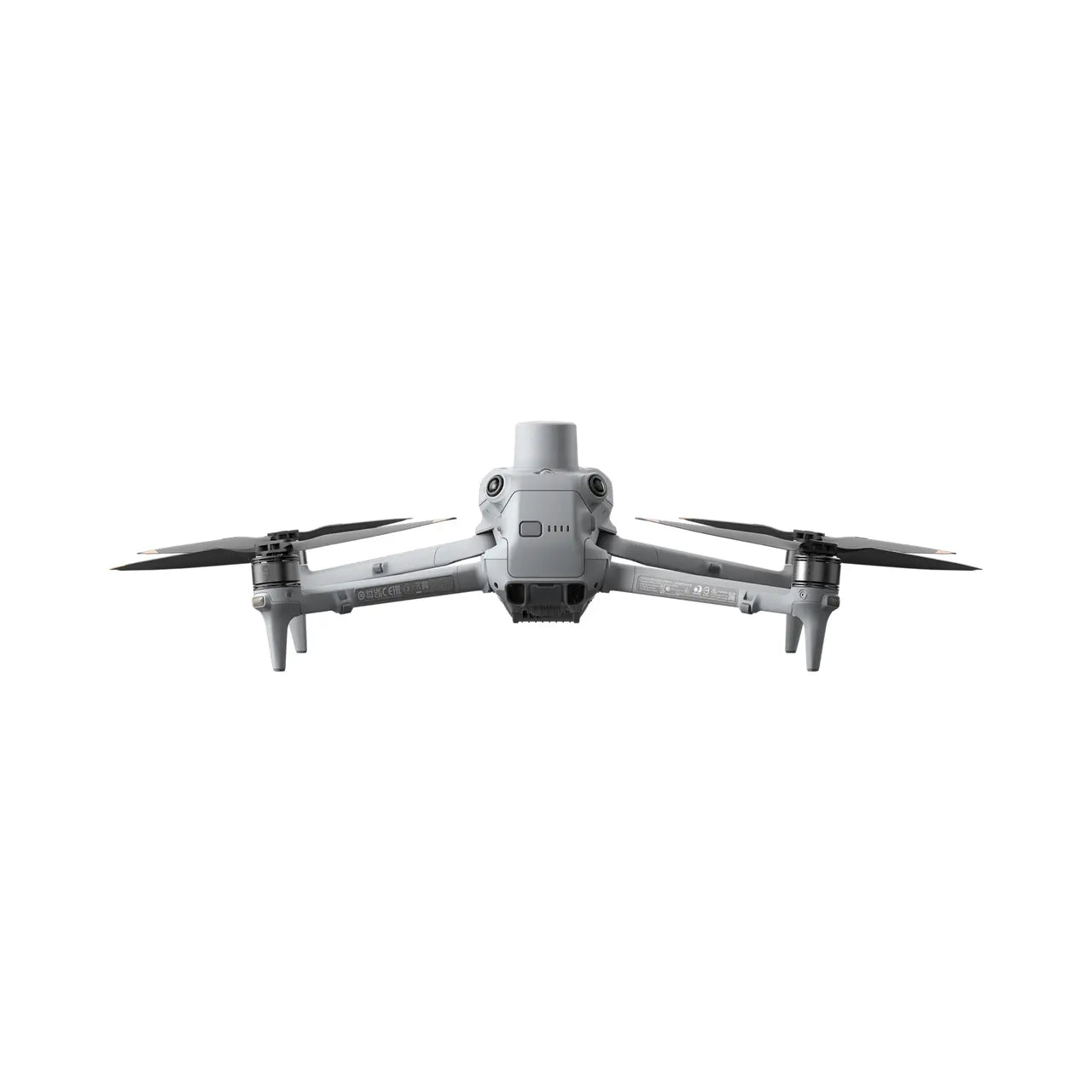

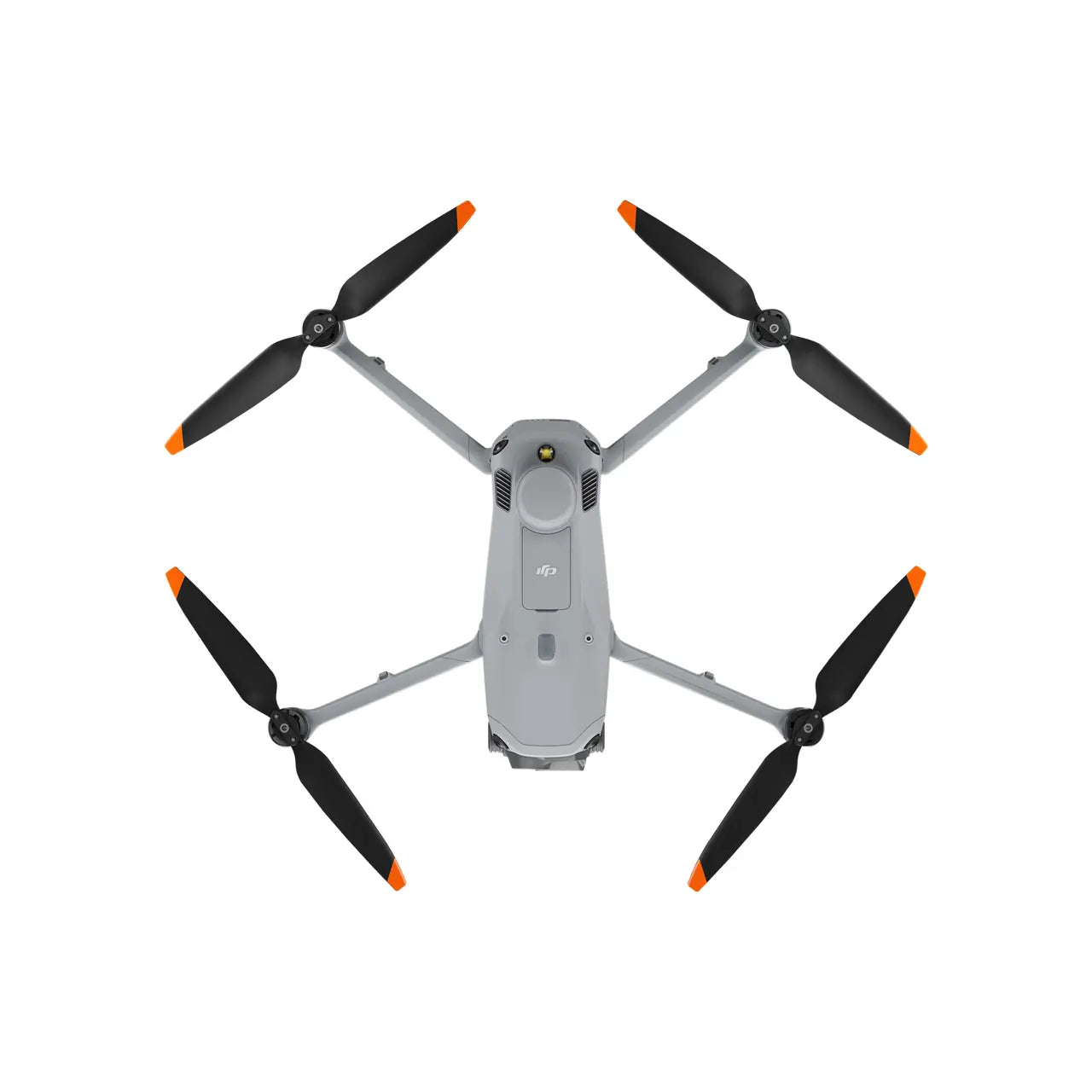

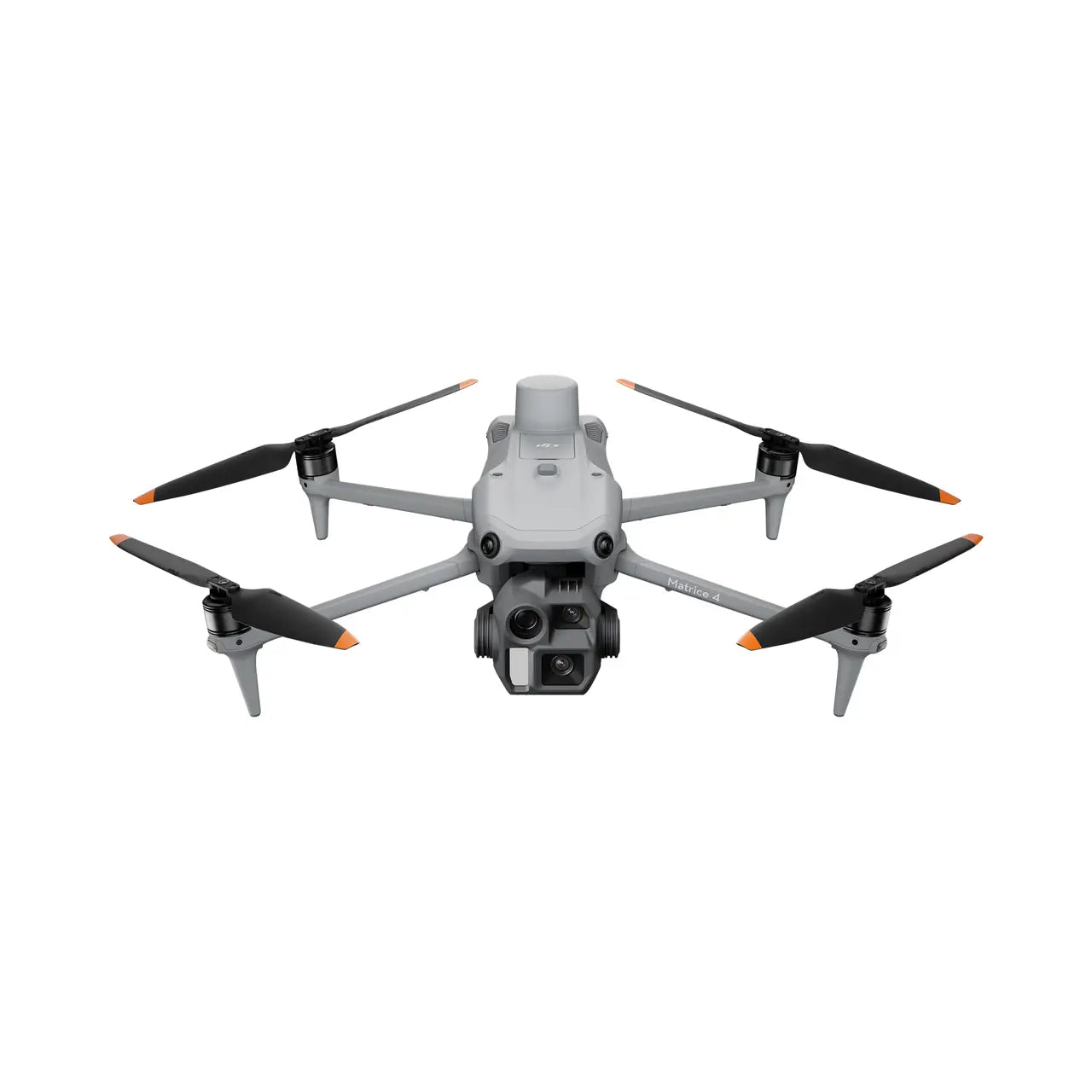

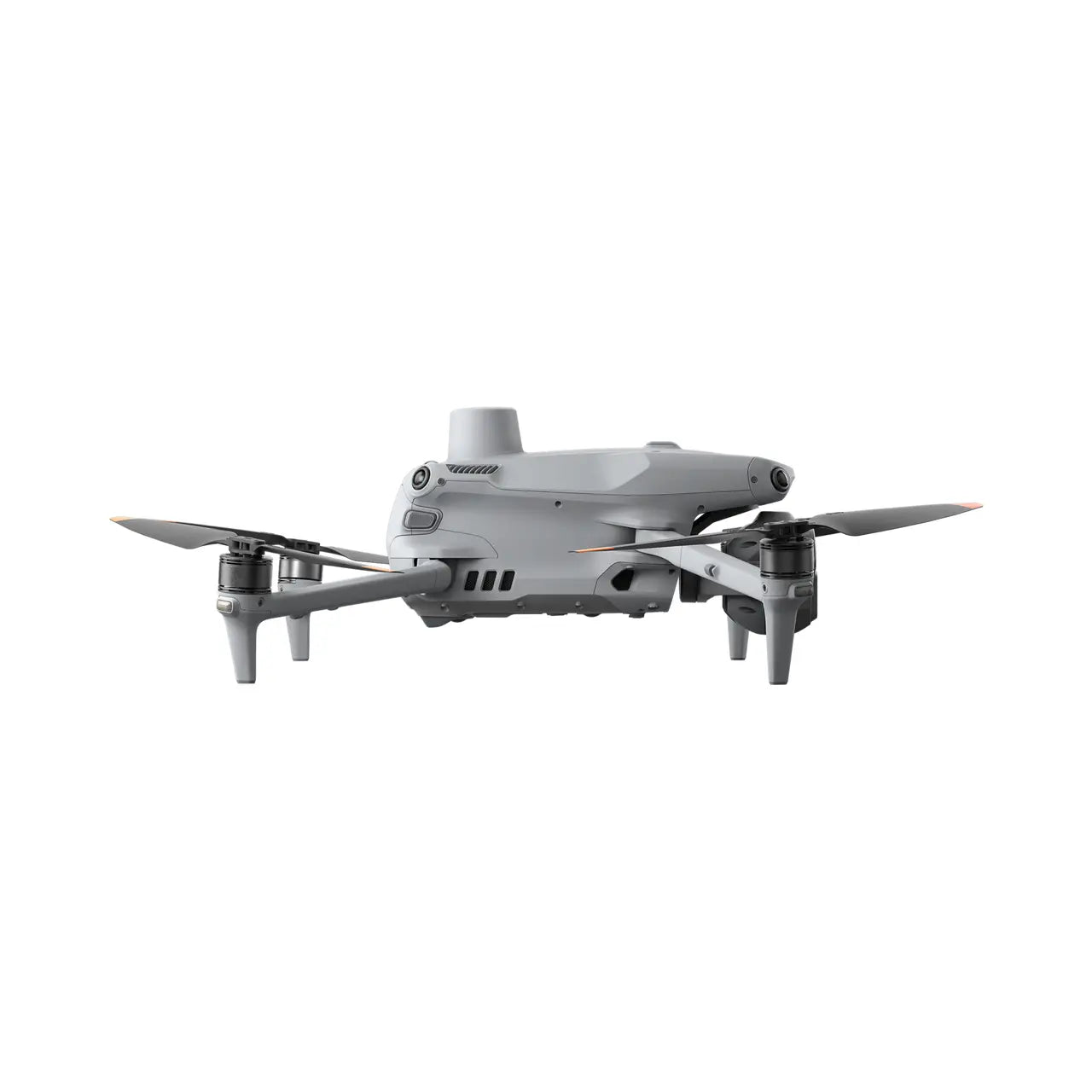

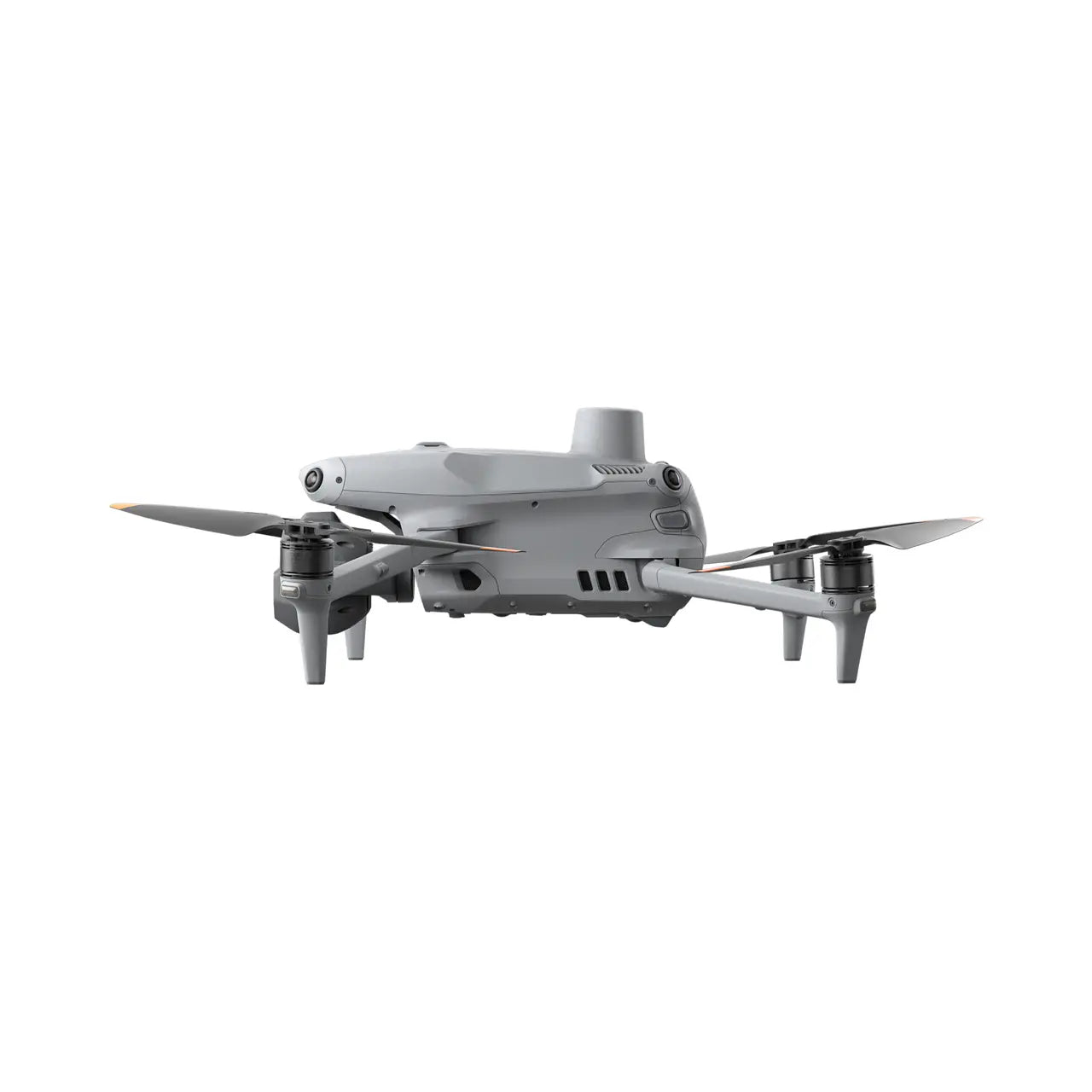

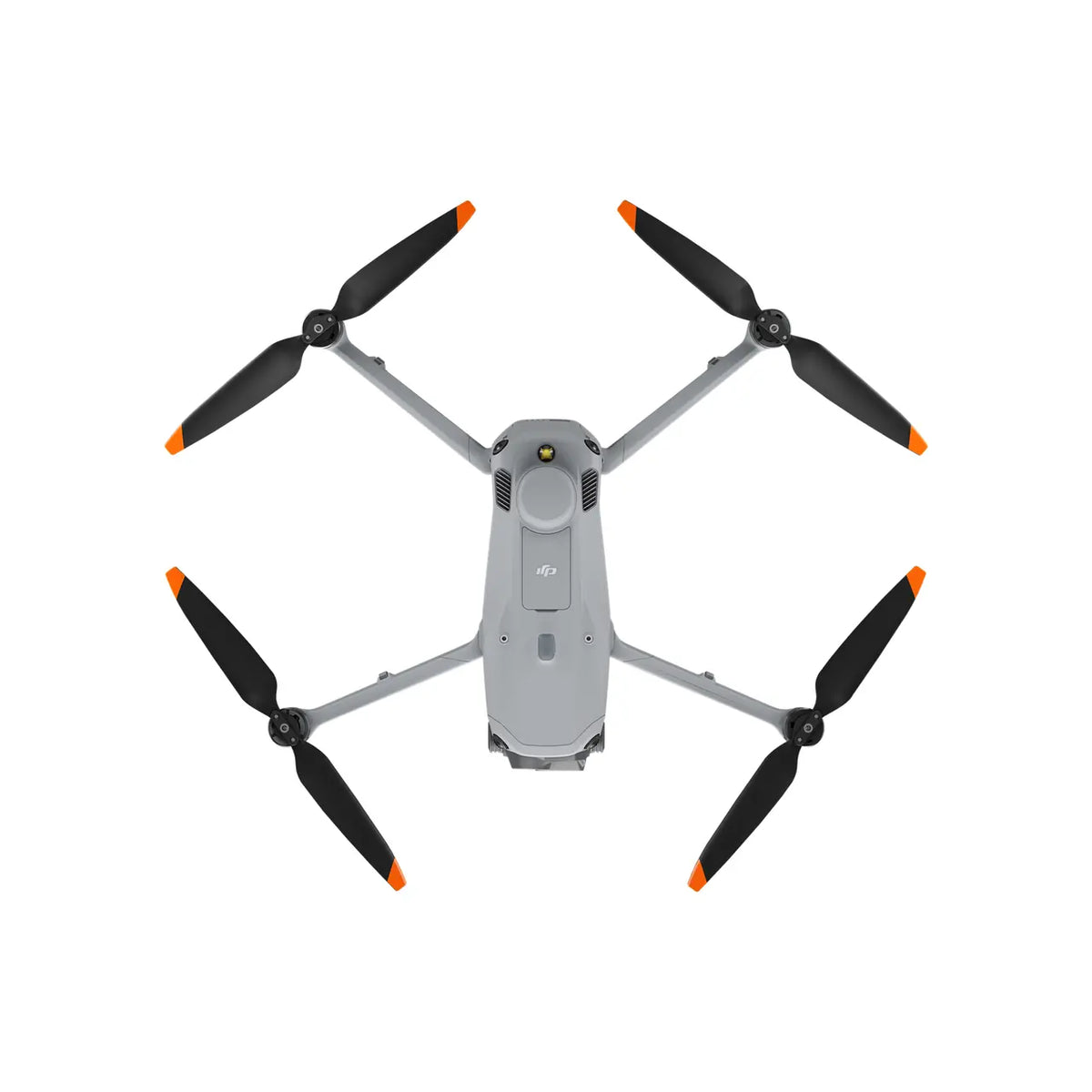

The DJI Matrice 4E is a compact, intelligent multi-sensor enterprise drone purpose-built for geospatial applications including surveying, mapping, construction, and mining. It integrates a 4/3-inch mechanical shutter wide-angle camera, a 48 MP medium tele camera, a 48 MP telephoto camera, and a laser range finder into a folding airframe weighing just 1,219 g. With a built-in RTK module, O4 Enterprise video transmission reaching 25 km, up to 49 minutes of flight time, and omnidirectional obstacle sensing, the Matrice 4E sets a new benchmark for field-deployable precision mapping platforms.
Compact enough to carry anywhere. Capable enough to map everything — with centimetre-level accuracy built in.
Features
- Three-camera imaging system — 4/3-inch 20 MP wide-angle camera with mechanical shutter (JPEG/DNG RAW), 48 MP medium tele camera (70 mm equiv.), and 48 MP telephoto camera (168 mm equiv.) for comprehensive aerial data capture
- 4/3-inch wide-angle sensor with f/2.8–f/11 aperture and mechanical shutter for sharp, rolling-shutter-free imagery — essential for precision mapping workflows
- Laser range finder with 1800 m measurement range enables real-time pin-point targeting, line drawing, and area calculation directly in DJI Pilot 2 — with instant sharing via QR code or FlightHub 2
- Built-in RTK module supporting extended L5 frequency band and GNSS+Vision Fusion Positioning, delivering 1 cm + 1 ppm horizontal accuracy and enabling rapid takeoff within 15 seconds
- Up to 49 minutes of flight time and 35 km flight distance (standard propellers, no payload, windless conditions)
- O4 Enterprise video transmission with 25 km range (FCC), 8-antenna system, and 20 MB/s download bandwidth for reliable data transfer in challenging environments
- Omnidirectional binocular obstacle sensing with 5-directional vision assist — forward, backward, lateral, downward, and upward — plus terrain elevation map loading for automated obstacle avoidance at night and in mountainous terrain
- Smart detection identifies vehicles, vessels, and persons in-flight, with Smart Track for automatic subject following and zoom adjustment, and POI for continuous 3D building observation
- Automatic survey quality report generation at mission completion, logging photo points, RTK status, and photo parameters for immediate anomaly review in the field
- E-Port interface supports PSDK third-party accessories; 200 g max payload capacity for payload expansion
- Controlled via DJI RC Plus 2 Enterprise with internet-connected terrain map preloading for pre-flight path planning
Specifications
| Specification | Value |
|---|---|
| Aircraft | |
| Takeoff weight | 1,219 g (standard propellers, with battery and microSD) |
| Dimensions (folded) | 260.6 × 113.7 × 138.4 mm |
| Dimensions (unfolded) | 307.0 × 387.5 × 149.5 mm |
| Max payload | 200 g |
| Diagonal wheelbase | 438.8 mm |
| Max ascent speed | 10 m/s (6 m/s with accessories) |
| Max descent speed | 8 m/s (6 m/s with accessories) |
| Max horizontal speed | 21 m/s |
| Max flight time | 49 min (standard propellers) · 46 min (low-noise propellers) |
| Max hover time | 42 min (standard propellers) · 39 min (low-noise propellers) |
| Max flight distance | 35 km (standard propellers) · 32 km (low-noise propellers) |
| Max wind resistance | 12 m/s |
| Max altitude | 6,000 m (4,000 m with payload) |
| Operating temperature | -10° to 40°C |
| GNSS | GPS + Galileo + BeiDou + GLONASS (GLONASS with RTK enabled) |
| RTK accuracy | 1 cm + 1 ppm (H) · 1.5 cm + 1 ppm (V) |
| Hovering accuracy | ±0.1 m (vision) · ±0.5 m (GNSS) · ±0.1 m (RTK) |
| Ports | E-Port × 1 (PSDK) · E-Port Lite × 1 |
| Wide-angle camera | |
| Sensor | 4/3-inch CMOS, 20 MP |
| Lens | FOV 84° · 24 mm equiv. · f/2.8–f/11 · focus 1 m to ∞ |
| Shutter | Electronic: 2–1/8000 s · Mechanical: 2–1/2000 s |
| ISO range | Normal: 100–25600 · Night Scene: 100–204800 |
| Max photo size | 5280 × 3956 |
| Photo format | JPEG / DNG (RAW) |
| Min photo interval | 0.5 s |
| Medium tele camera | |
| Sensor | 1/1.3-inch CMOS, 48 MP |
| Lens | FOV 35° · 70 mm equiv. · f/2.8 · focus 3 m to ∞ |
| ISO range | Normal: 100–25600 · Night Scene: 100–409600 |
| Max photo size | 8064 × 6048 |
| Telephoto camera | |
| Sensor | 1/1.5-inch CMOS, 48 MP |
| Lens | FOV 15° · 168 mm equiv. · f/2.8 · focus 3 m to ∞ |
| Digital zoom | 16× (112× hybrid zoom) |
| ISO range | Normal: 100–25600 · Night Scene: 100–409600 |
| Max photo size | 8192 × 6144 |
| Video | |
| Video codec | H.264 / H.265 (CBR, VBR) |
| Video resolution | 4K: 3840×2160@30fps · FHD: 1920×1080@30fps |
| Max video bitrate | H.264: 60 Mbps · H.265: 40 Mbps |
| Video format | MP4 |
| Gimbal | |
| Stabilisation | 3-axis (tilt, roll, pan) |
| Controllable tilt range | -90° to +35° |
| Angular vibration range | ±0.007° |
| Laser range finder | |
| Measurement range | 1,800 m @ 20% reflectivity (1 Hz) |
| Blind zone | 1 m |
| Accuracy | ±(0.2 + 0.0015 × D) m |
| Obstacle sensing | |
| Sensing type | Omnidirectional binocular vision + downward 3D infrared |
| Forward / backward range | 0.4–200 m |
| Lateral range | 0.5–200 m |
| Downward range | 0.3–18.8 m |
| Video transmission (O4 Enterprise) | |
| Max transmission distance | 25 km (FCC) · 12 km (CE/SRRC/MIC) |
| Intelligent flight battery | |
| Capacity | 6,741 mAh |
| Voltage | 14.76 V |
| Energy | 99.5 Wh |
| Weight | 401 g |
| Cell type | Li-ion 4S |
| Cycle count | 200 |
| Recharging temperature | 5° to 40°C |
FAQ
What is the difference between the Matrice 4E and Matrice 4T?
The Matrice 4E is designed for geospatial applications — surveying, mapping, construction, and mining — and features a 4/3-inch mechanical shutter wide-angle camera with RAW output and built-in RTK for centimetre-level accuracy. The Matrice 4T is designed for inspection and public safety applications and replaces the wide-angle mechanical shutter camera with a larger aperture sensor optimised for night vision, and adds a thermal infrared camera and NIR auxiliary light. Both models share the same airframe, battery, and medium tele and telephoto cameras.
Does the Matrice 4E include RTK?
Yes. The Matrice 4E has a built-in RTK module supporting the extended L5 frequency band and GNSS+Vision Fusion Positioning. It delivers 1 cm + 1 ppm horizontal accuracy and 1.5 cm + 1 ppm vertical accuracy in RTK Fix mode, and supports rapid takeoff within 15 seconds.
What remote controller is included with the Matrice 4E?
The Matrice 4E is controlled by the DJI RC Plus 2 Enterprise, which uses the O4 Enterprise video transmission system for a range of up to 25 km (FCC). It supports internet-connected terrain map loading for automated obstacle avoidance path planning and runs DJI Pilot 2 for mission planning and execution.
Can third-party payloads be attached to the Matrice 4E?
Yes. The Matrice 4E includes an E-Port interface supporting PSDK-compatible third-party accessories and payloads, with a maximum payload capacity of 200 g. An E-Port Lite interface is also available for USB connection to DJI tuning software and select third-party PSDK devices. Note that accessories must be installed before powering on the aircraft.
What mapping software is compatible with the Matrice 4E?
The Matrice 4E is designed to integrate with DJI Pilot 2 for mission planning, in-flight survey quality reporting, and RTK status monitoring. FlightHub 2 supports fleet management and real-time data sharing. The mechanical shutter wide-angle camera outputs DNG RAW files compatible with industry-standard photogrammetry software including DJI Terra, Pix4D, Agisoft Metashape, and others.
